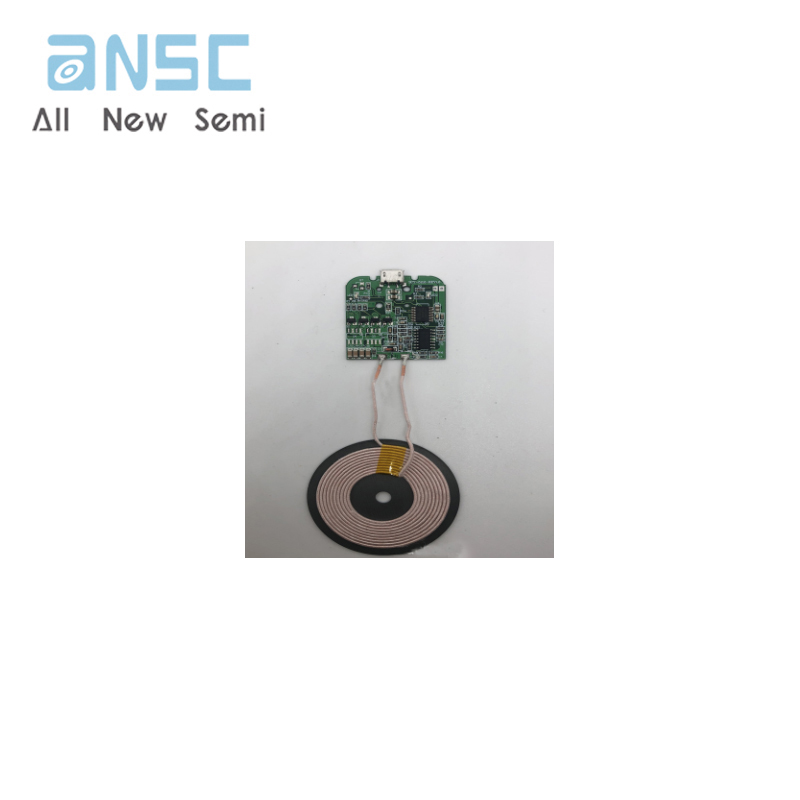

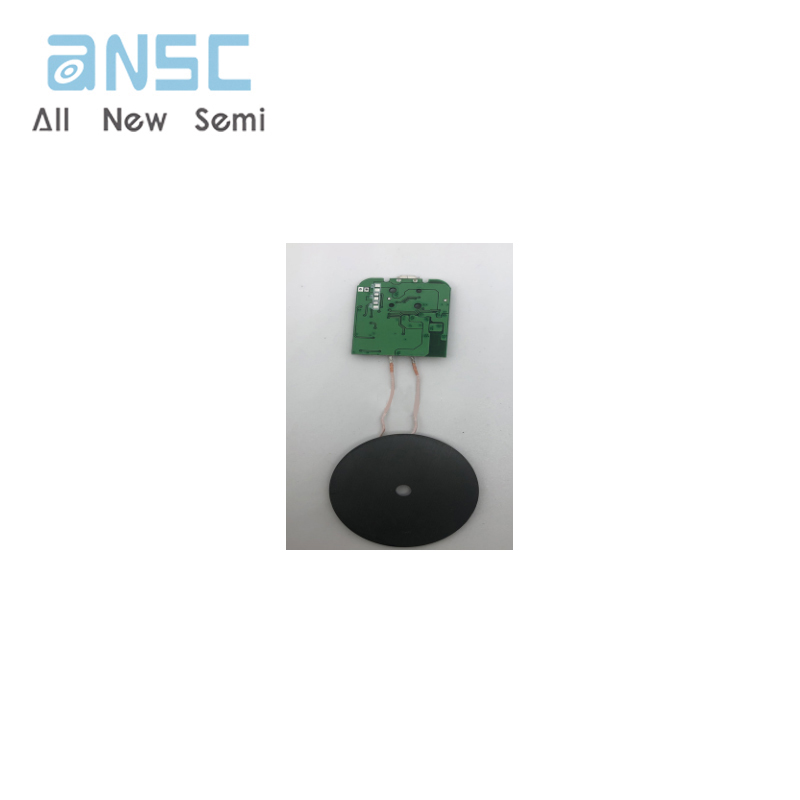

QI Mobile Wireless Charging Transmitter Original ST Chip Mobile Wireless Charging Transmitter PCBA+Coil
Product Feature:
1. Input voltage: DC4.3V~5.5V/1.5~2A. If the voltage exceeds this range, an alarm will be triggered and charging will stop
2. Output voltage: 5V ± 0.1V,
3. Charging current: 500mAh-1000mAh
4. Charging power: up to 5W
5. Conversion efficiency: greater than 73%
6. Transmission distance: maximum 10mm, recommended transmission and reception spacing of 2mm~4mm
7. Standby power consumption: average power consumption less than 50mW
8. Over temperature protection: When the temperature is above 60 ° C during charging, it will automatically stop charging for 1 minute and wait for the temperature to drop before recharging
9. Overcurrent protection: When the output current is greater than 1.5A during charging, it automatically stops charging to prevent damage to the charger
10. Execution standard: Qi wireless charging standard
11. Product certification: CE/FCC, compatible with QI certification standards
12. Product specifications: 32 * 38
13. Product weight: 120g
14. Does it support foreign object detection? Yes
15. Indicator light function: blue light for charging, red light for standby, double flashing for faults
Main description: Wireless charging products that comply with the WPC Qi standard, including wireless transmitters, wireless charging pads, and wireless charging receivers, can be used. They are suitable for Nokia wireless charging phones, Samsung wireless charging phones, Google Nexus 4/Nexus 5 phones, Nexus 10 tablets, Xiaomi, Meizu, Huawei, ZTE, Lenovo, etc. You can add our company's universal wireless charging receiver and use wireless charging.
Qi is a global standard for wireless charging of devices. For Qi compatible devices, you do not need to connect any cables. Just place your device on the charging surface.
Charging time: Nokia Lumia 920 takes 2-4 hours, Samsung phones take 3-6 hours, iPhone phones take 3-4 hours, and other Android phones may vary depending on the battery level.
