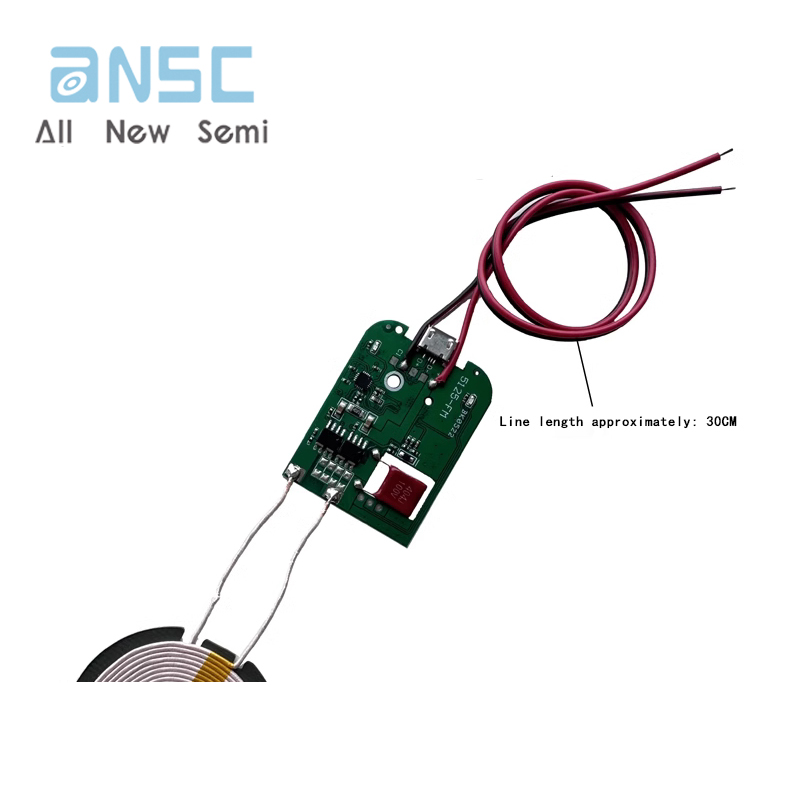

15W high-power fast charging Mobile wireless charger transmitter QI circuit board supports PD/QC protocol Apple fast charging
Product Specification:
| Description | Description |
| Parameter | 20W transmitting end |
| Input power supply | Type-C port: 5V/9V/12V/qc3.0 |
| Soldering wire: 9V-24V (can be directly connected to the vehicle) | |
| Output power | Input: 5V, output: 5W |
| Input: 9V/12V-24V, output: 20W/15W/10W/5W automatic recognition | |
| Sensing distance | Barrier: 0-10mm |
| Suggested distance | Barrier: 2-6mm |
| Coil size | 50mm diameter; 2.4mm thick |
| Circuit board size | Length * width 35 * 35mm; 4.2mm thick |
| Execution standards | QI |
| Conversion rate | Greater than 75% |
