Product Descriptions

RK3399 is a low power, high performance processor for computing, personal mobile internet devices and other smart device applications. Based on Big.Little architecture, it integrates dual-core Cortex-A72 and quad-core Cortex-A53 with separate NEON coprocessor.

Many embedded powerful hardware engines provide optimized performance for high-end application. RK3399 supports multi-format video decoders including H.264/H.265/VP9up to4Kx2K@60fps, especially, H.264/H.265 decoders support 10bits coding, and also supports H.264/MVC/VP8 encoders by 1080p@30fps, high-quality JPEG encoder/decoder,and special image preprocessor and postprocessor.

Embedded 3D GPU makes RK3399 completely compatible with OpenGL ES1.1/2.0/3.0/3.1, OpenCL and DirectX 11.1. Special 2D hardware engine with MMU will maximize display performance and provide very smooth operation.

RK3399 has high-performance dual channel external memory interface (DDR3/DDR3L/LPDDR3/LPDDR4) capable of sustaining demanding memory bandwidths, also provides a complete set of peripheral interface to support very flexible applications.

Product Features

The features listed below which may or may not be present in actual product, may  be subject to the third party licensing requirements. Please contact Rockchip for  actual product feature configurations and licensing requirements.

1.2.1 Microprocessor

•  Dual-core ARM Cortex-A72 MPCore processor and Quad-core ARM Cortex-A53MPCore processor, both are high-performance, low-power and cached application processor

•  Two CPU clusters.Big cluster with dual-coreCortex-A72 is optimized for highperformance and little cluster with quad-core Cortex-A53 is optimized for low power.

•  Full implementation of the ARM architecture v8-A instruction set, ARM Neon Advanced SIMD (single instruction, multiple data) support for accelerating media and signal processing

•  ARMv8 Cryptography Extensions

•  SCU ensures memory coherency between the MPCore for each cluster

•  CCI500 ensures the memory coherency between the two clusters

•  Each Cortex-A72 integrates48KB L1 instruction cache and 32KB L1 data cache with 4-way set associative. Each Cortex A53 integrates 32KB L1 instruction cache and 32kB L1 data cache separately with 4-way set associative

•  1MB unified L2 Cache for Big cluster, 512KB unified L2 Cache for Little cluster

•  Trustzone technology support

•  Full Coresight debug solution

•  Debug and trace visibility of whole systems

•  ETM trace support

•  Invasive and non-invasive debug

•  Eight separate power domains for CPU core system to support internal power switch and externally turn on/off based on different application scenario

•  PD_A72_B0: 1st Cortex-A72 + Neon + FPU + L1 I/D cache of big cluster

•  PD_A72_B1: 2nd Cortex-A72+ Neon + FPU + L1 I/D cache of big cluster

•  PD_SCU_B: SCU + L2 Cache controller, and including PD_A72_B0, PD_A72_B1, debug logic of big cluster

•  PD_A53_L0: 1st Cortex-A53 + Neon + FPU + L1 I/D Cache of little cluster

•  PD_A53_L1: 2nd Cortex-A53 + Neon + FPU + L1 I/D Cache of little cluster

•  PD_A53_L2: 3rd Cortex-A53 + Neon + FPU + L1 I/D Cache of little cluster

•  PD_A53_L3: 4th Cortex-A53 + Neon + FPU + L1 I/D Cache of little cluster

•  PD_SCU_L: SCU + L2 Cache controller, and including PD_A53_L0, PD_A53_L1, PD_A53_L2, PD_A53_L3, debug logic of little cluster

•  Two isolated voltage domain to support DVFS for big cluster and little cluster separately.

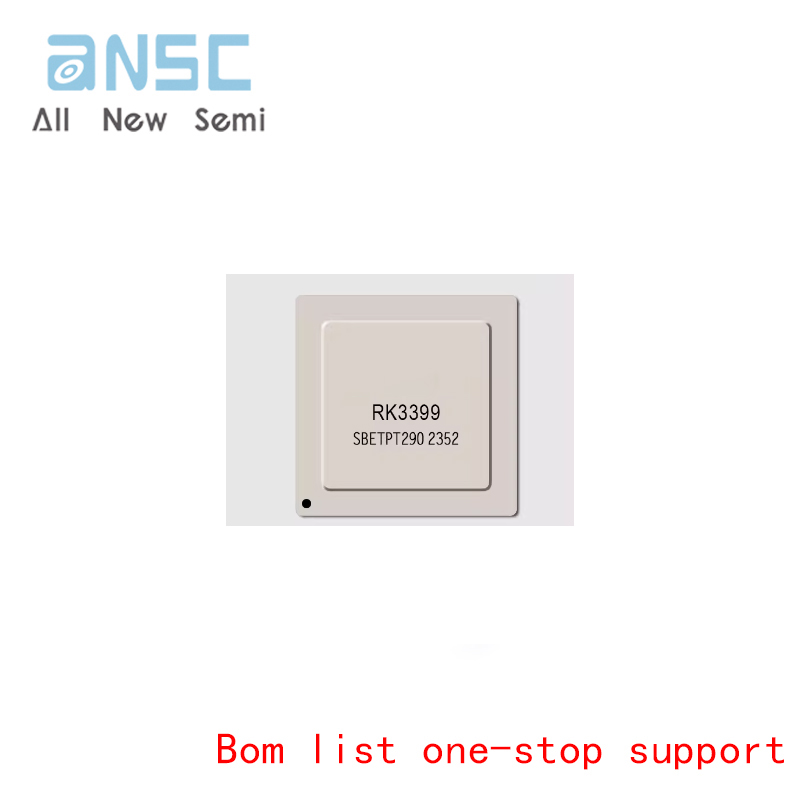

Actual product photos

Product Data Manual：

For more product information, please download the PDF
