Product Description

The IMX377CQT is a diagonal 7.81 mm (Type 1/2.3) CMOS image sensor with a color square pixel array and approximately 12.35 M effective pixels. 12-bit digital output makes it possible to output the signals of approximately 12.35 M effective pixels with high definition for shooting still pictures. It also operates with three power supply voltages : analog 2.8 V, digital 1.2 V, and 1.8 V for I/O interface and achieves low power consumption. Furthermore, it realizes 12-bit digital output for shooting high-speed and high-definition moving pictures by horizontal and vertical addition and subsampling. Realizing high-sensitivity, low dark current, this sensor also has an electronic shutter function with variable integration time. In addition, this product is designed for use in consumer use digital still camera and consumer use camcorder. When using this for another application, Sony does not guarantee the quality and reliability of the product. Therefore, don't use this for applications other than consumer use digital still camera and consumer use camcorder. In addition, individual specification change cannot be supported because this is a standard product. Consult your Sony sales representative if you have any questions

Product Features

◆CMOS active pixel type pixels

◆Input clock frequency 6 to 27 MHz

◆MIPI Specifications (CSI-2 high-speed serial interface)

◆All-pixel scan mode

Horizontal/vertical 2/2-line binning mode

Horizontal/vertical 3/3-line binning mode

Vertical 1/3 subsampling horizontal 3 binning mode

Vertical 1/3 subsampling horizontal 2/4 subsampling mode

Vertical 2/9 subsampling binning horizontal 3 binning mode

Vertical 2/9 subsampling binning horizontal 3 binning mode low power consumption

Vertical 2/17 subsampling binning horizontal 3 binning mode

◆High-sensitivity, low dark current, no smear, excellent anti-blooming characteristics

◆Vertical and horizontal arbitrary cropping function

◆Variable-speed shutter function (minimum unit: 1 horizontal period)

◆Low power consumption

◆H driver, V driver and I2 C communication circuit on chip

◆CDS/PGA on chip. Gain +27 dB (step pitch 0.1 dB)

◆10-bit/12-bit A/D conversion on chip

◆R, G, B primary color mosaic filters on chip

◆All-pixel simultaneous reset supported

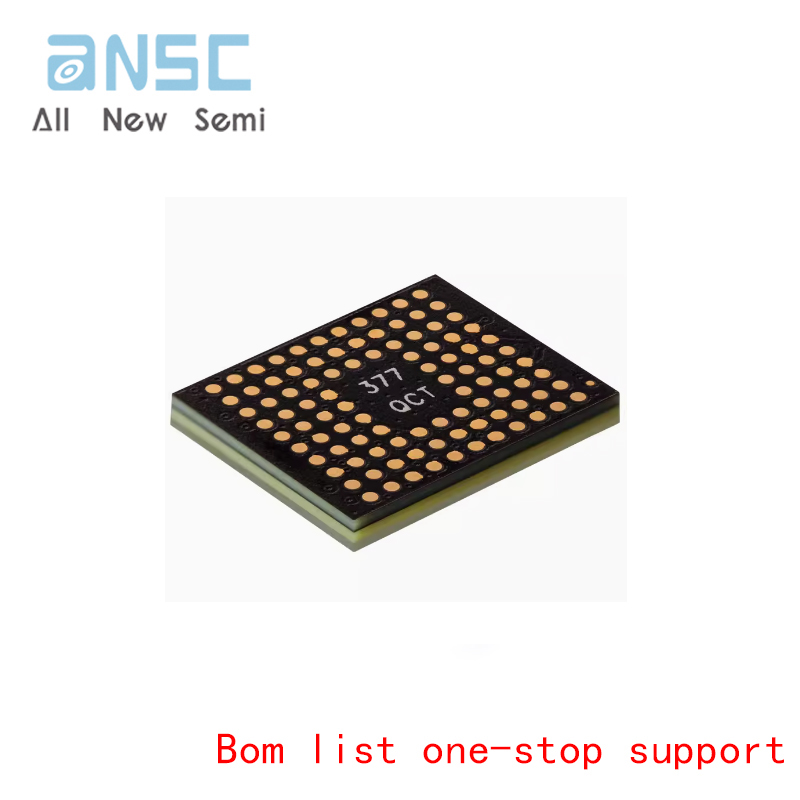

◆98-pin high-precision ceramic package

Specifications

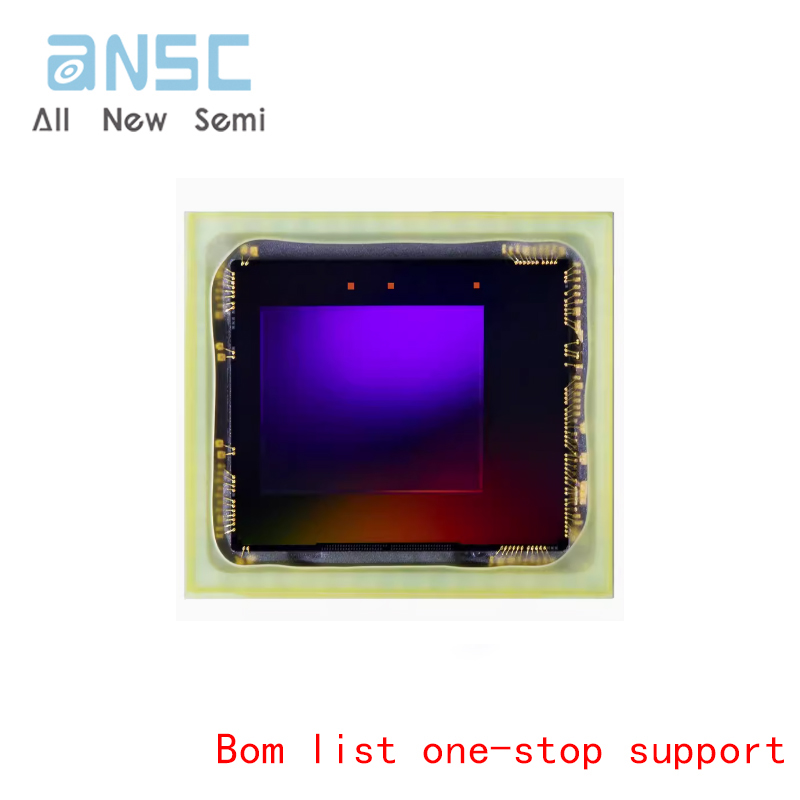

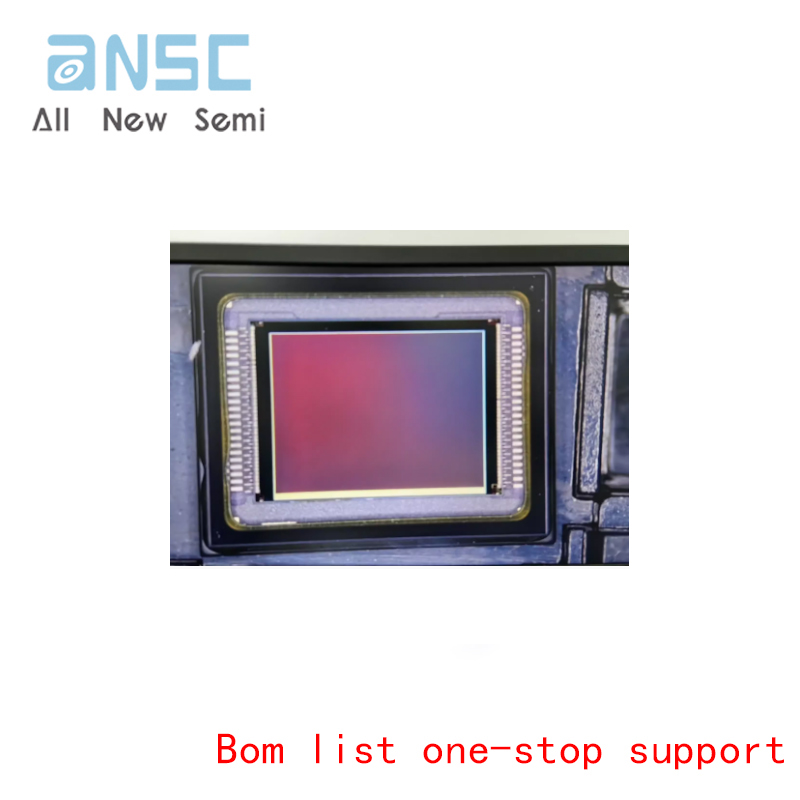

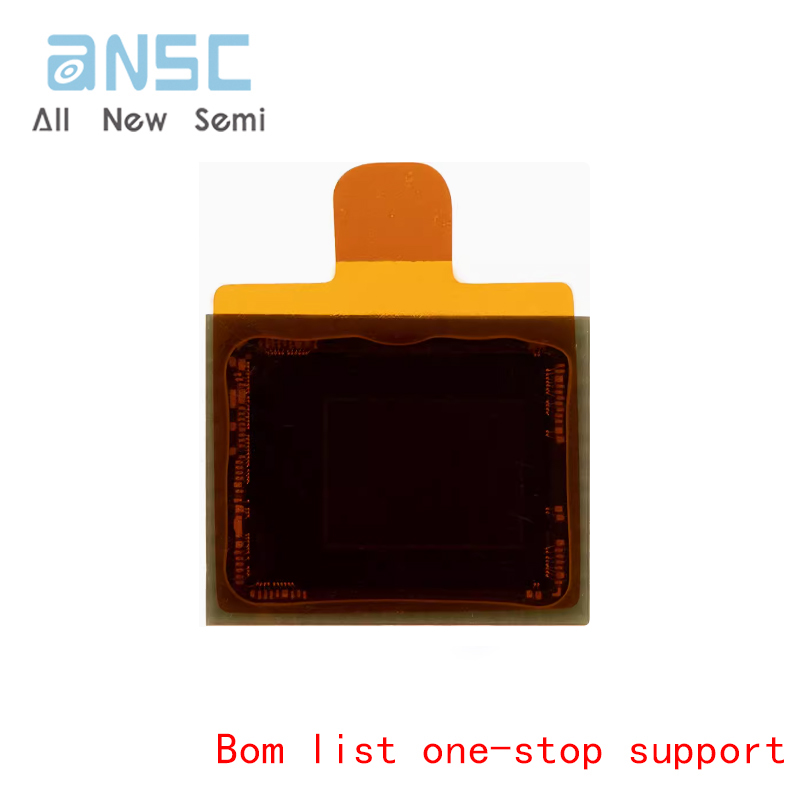

Actual product photos

Product Data Manual:

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

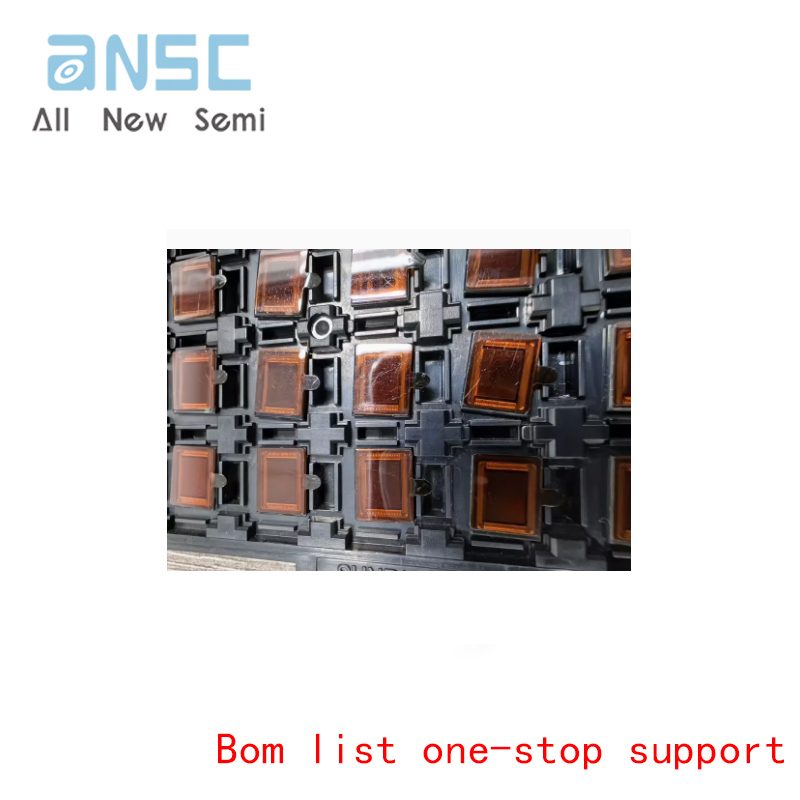

Standard packaging
