Product Descriptions
| Attribute | Attribute value |
| Product Name | ANSM-ANS-SP31-20KS |

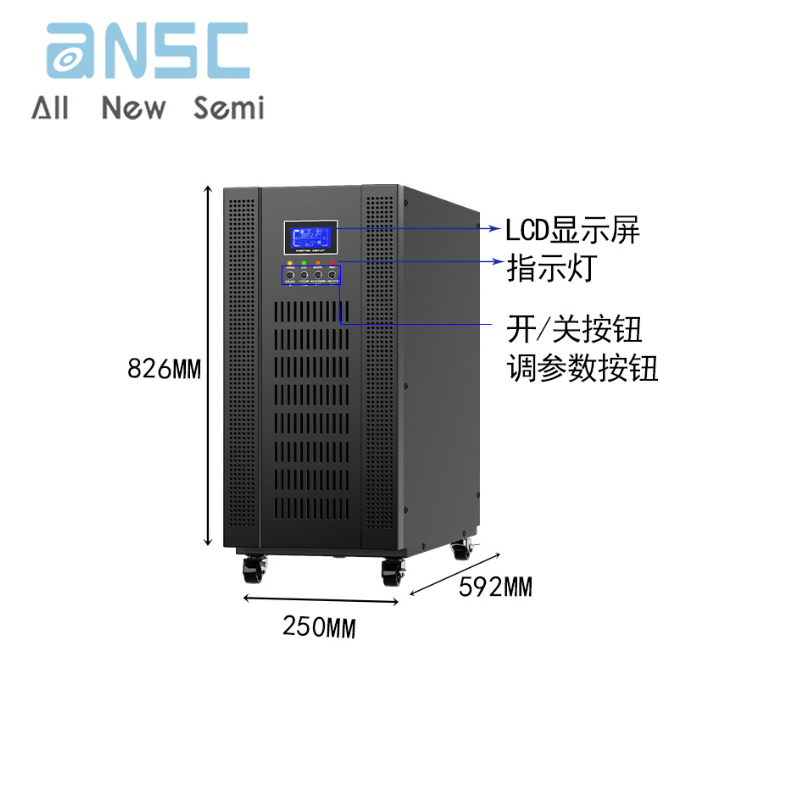

| Appearance size | 560x250x580(MM) |
| DC voltage | 192V |
| Charging voltage | 273VDC ± 1% (based on 20 sections) |
| Maximum charging current | 4A, 1A/2A/4A can be preset |
| Conversion time | 0MS, no conversion |
| Operating noise | Less than 60 decibels |
| Regarding batteries | The battery needs to be purchased separately |
| Capacity | 20KVA/16000W |
| Input voltage | 400VAC (three-phase) |
| Output waveform | Sine wave |
| Output voltage | 220VAC士2% |
| Output power factor | 0.8 (battery mode) |
| Weight (net weight) | 35KG |
| Output frequency | 50HZ/60HZ士0.2HZ |
| Overload capacity | 130% negative for less than 30 seconds, recovery point at 90% load |
| SNMP card expansion interface | SNMP card needs to be purchased separately |
| Battery discharge | Every 4 seconds when the input voltage is cut off, and every 1 second when the battery is about to run out |
| Operating environment | Temperature 0 ℃ -50 ℃, humidity 0-95 (non condensing) |

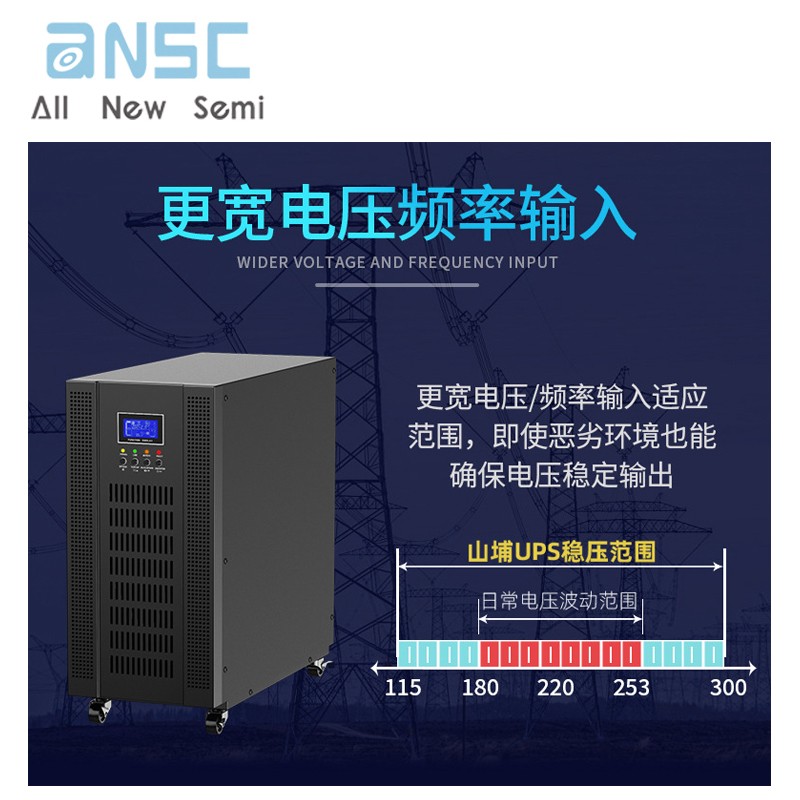

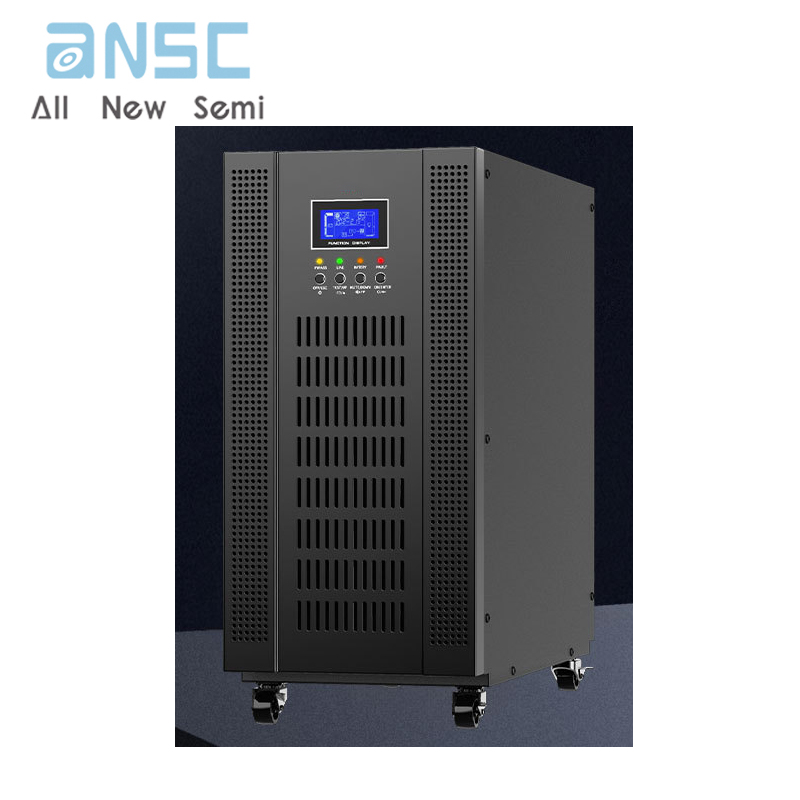

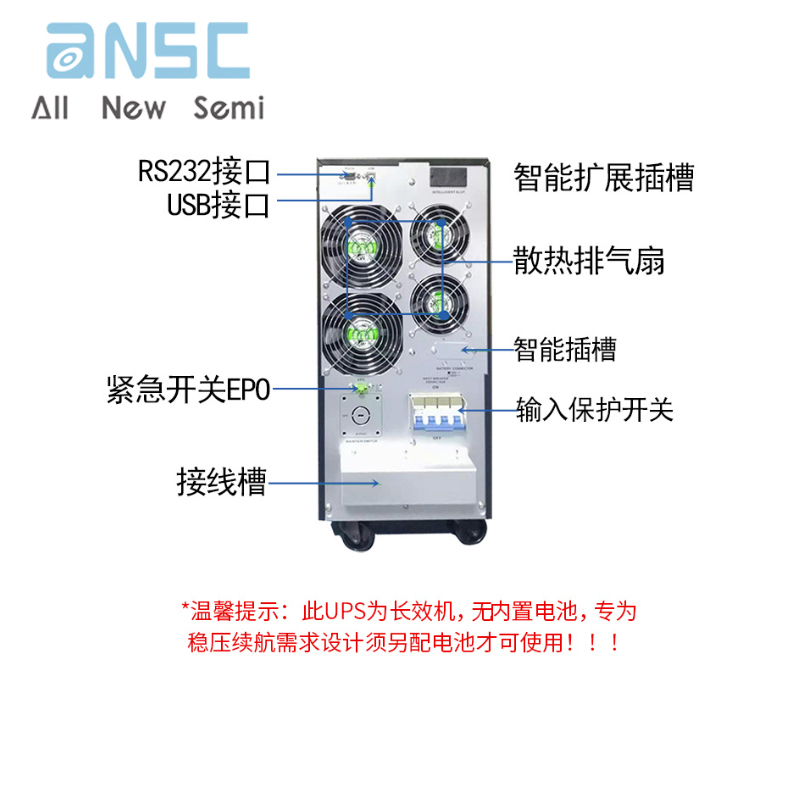

Product images
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
