Product Descriptions

Attribute	Attribute value

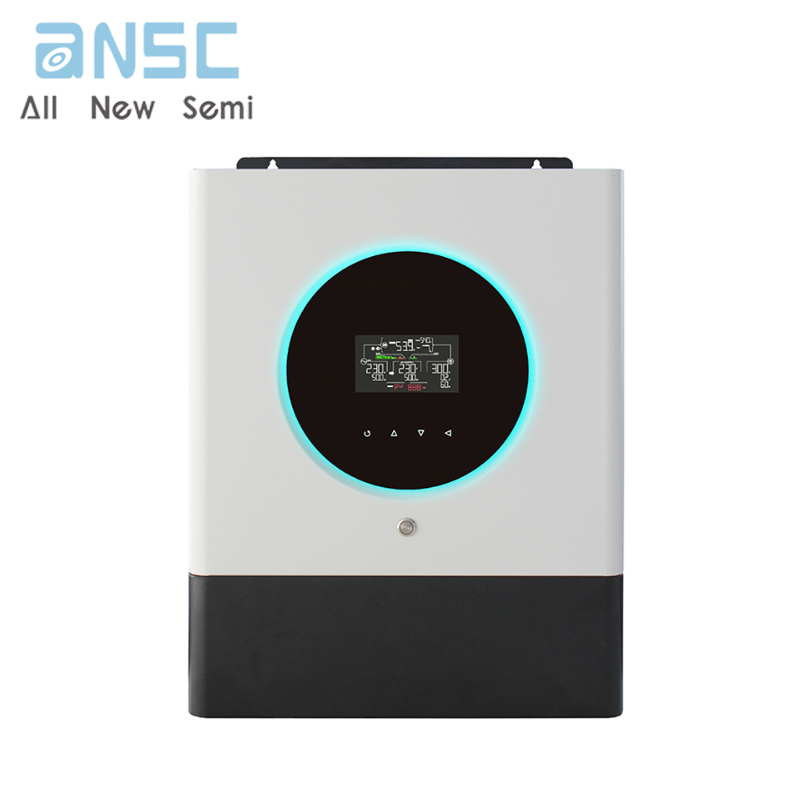

Product Name	ANSM-ANS-SP-Isolar-8KW-wifi
Product Name	Off grid solar inverter
Rated power	8000VA
Application	PV Inverter
Communication input
Voltage	230Vac
Voltage range	170-280Vac (suitable for personal computers)
Voltage range	90-280Vac (suitable for household appliances)
Frequency	50/60Hz
PV input
Maximum photovoltaic array power	8000W
Maximum open circuit voltage of photovoltaic array	500Vdc
MPPT range @ working voltage	90Vdc-450Vdc
Rated voltage	240V
MPPT quantity	2
Maximum input current	18A*2
Output parameters
PV/battery mode
Voltage	230V士5%
Frequency	50Hz
Efficiency	93%
Maximum output power	8KW
Harmonic	≤3
Overload capacity	5s@≥150%load;10s@110%-150%load
Commercial power mode
Voltage	230Vac士5%
Frequency	50Hz
Efficiency	95% (resistive load, fully charged battery)
Battery
Battery voltage	48V
Charging method	Three-stage charging
Maximum charging current	120A
Cold start voltage	46Vdc
Battery type	Lead acid, AGM, lithium battery
Interface
Battery management function	BMS
Parallel function	Maximum number of parallel machines 6
Communication interface	RJ45，RS-232，RS-485，USB，WIFI/APP
Protection function	Output short circuit, overload, over temperature and other protection functions
Working temperature	-10°c - 50°c
Storage temperature	-15°c - 60°c
Relative humidity	5%-95%
Size	144x420x590mm
Net weight (kg)	11

ANS-SP-Isolar-8KW-wifi 2

ANS-SP-Isolar-8KW-wifi 3

ANS-SP-Isolar-8KW-wifi

ANS-SP-Isolar-8KW-wifi 4
