Product Descriptions
| Attribute | Attribute value |
| Product Name | ANSM-ANS-SC-PSS-5KWH |
| Rated power | 5KW (optional power of 1.5KW~11KW) |
| Number of phases | Single-phase |
| Battery | |
| Rated voltage | 51.2V |
| Rated capacity of battery | 100AH |
| Continuous discharge current | 100A |
| Maximum discharge current | 150A<3S |
| Standard charging current | 50A |
| Fast charging current | 100A |
| Number of battery configurations | 1/2/3/4/5 |
| Battery type | (LiFePO4) |
| Number of cycles | >2500 Times |
| Battery voltage range | 40~58.4V |
| Power module | |
| Range of mains input voltage | Home appliance mode: 90~280Vac; UPS:170~280Vac |
| Rated frequency of mains power input | 50Hz/60Hz adaptive |
| Maximum recommended component power | 4500W |
| Component open circuit voltage | 450V |
| MPPT operating voltage range | 120~430V |
| Charge and discharge efficiency | 93% |
| General parameters | |
| Size | 602*403*1263mm |
| Weight | 80/135/190/245/300kg |
| Installation method | To ground |
| Working temperature | Charging temperature: 0~45 ℃; Discharge temperature: -20 ℃~60 ℃ |
| Working humidity | 5%~95% |
| Maximum working altitude | 4000m (derating required for distances over 1500m) |
| Cooling method | Air cooling |
| Protection level | IP21 |

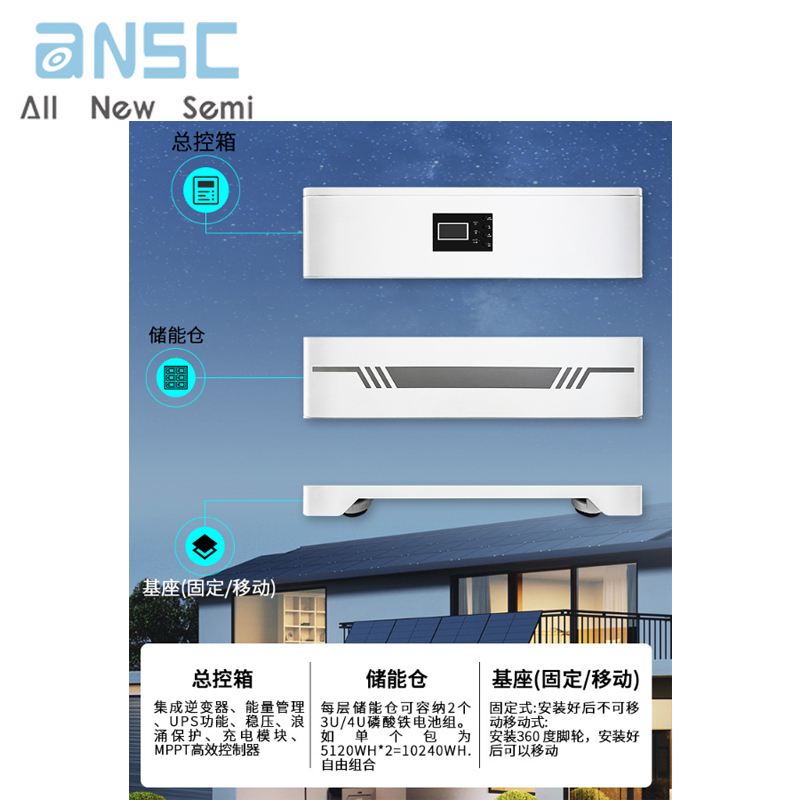

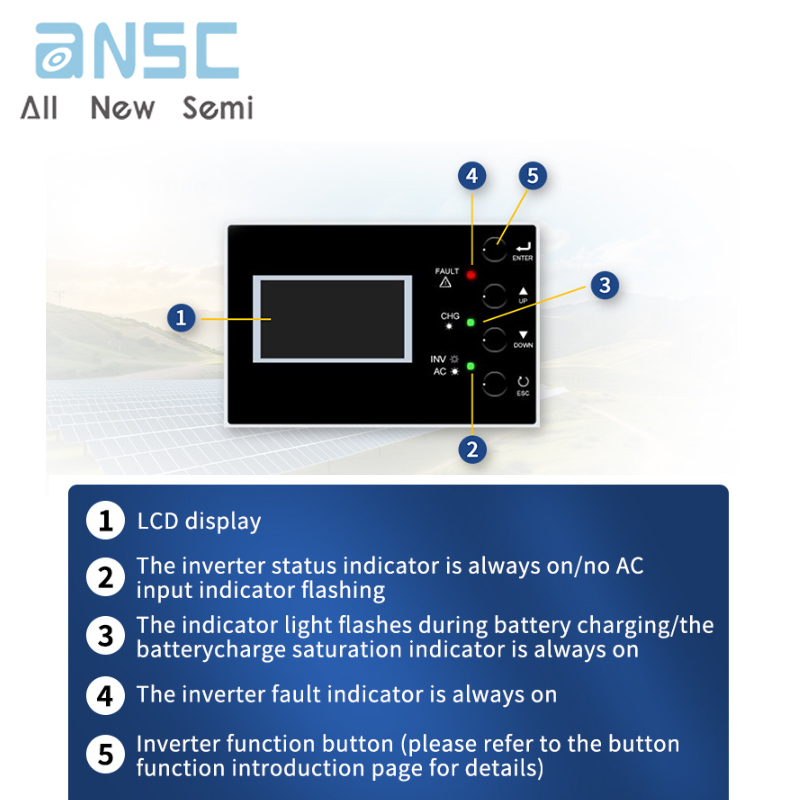

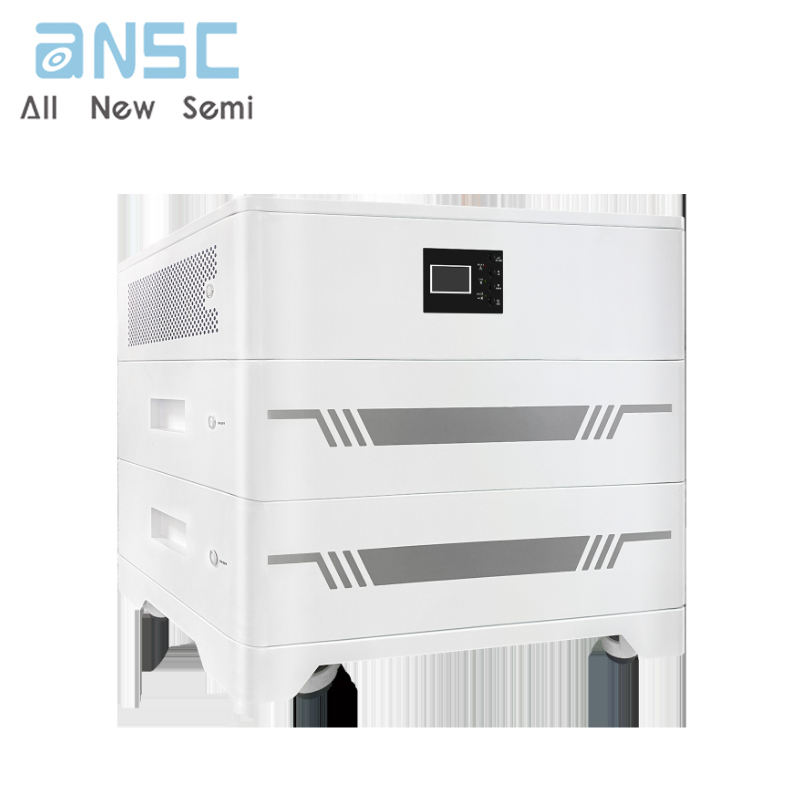

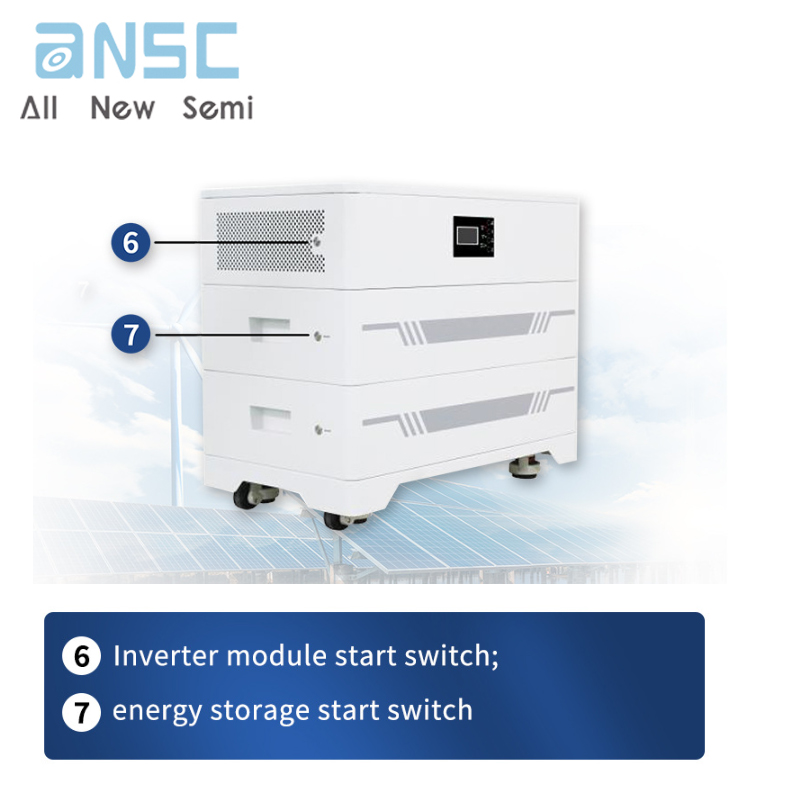

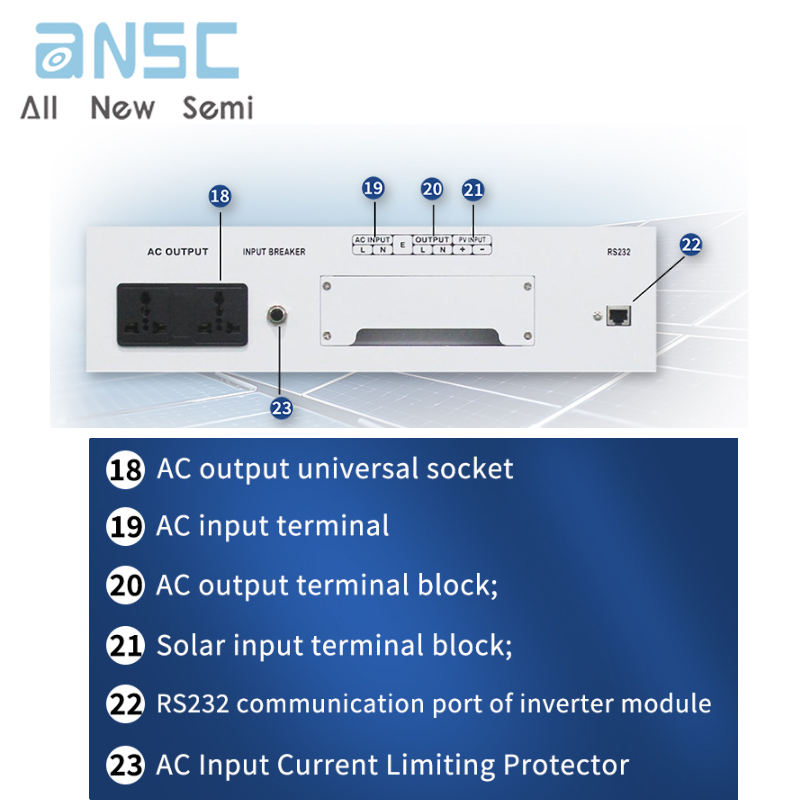

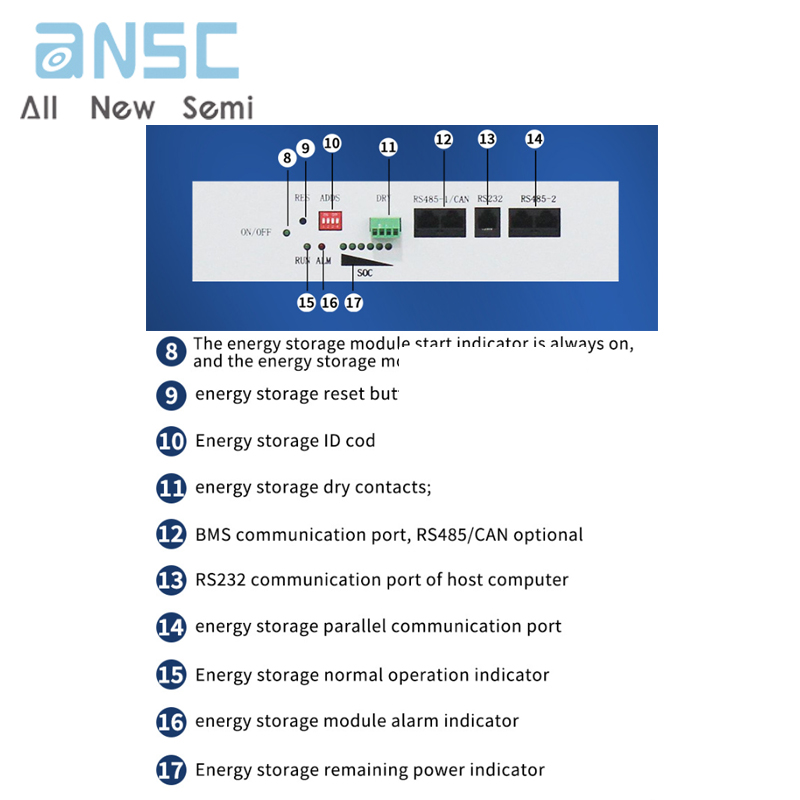

Product images
