Product Descriptions

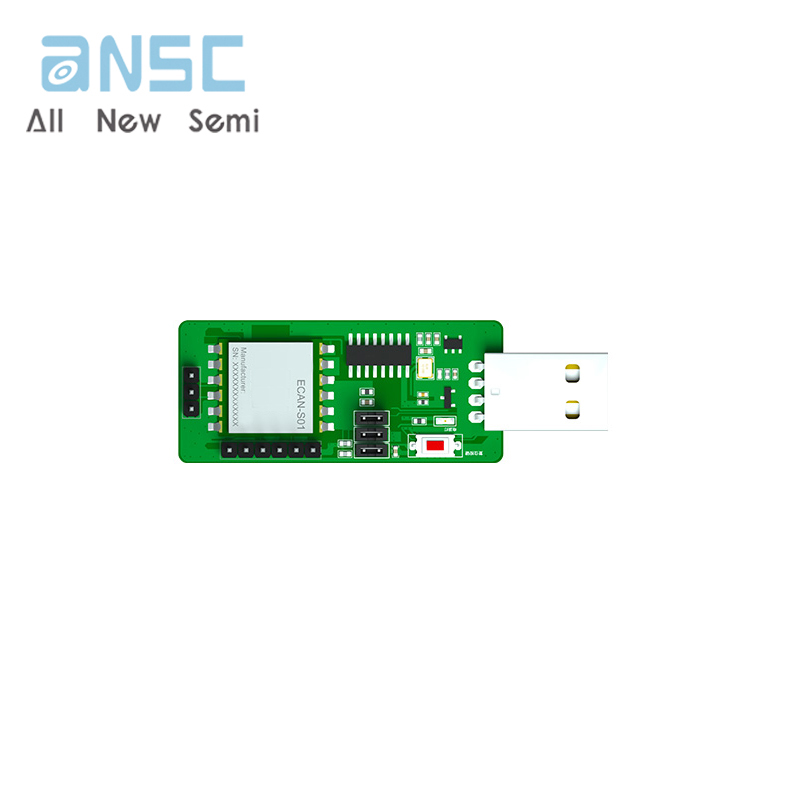

ECAN-S01 is a small intelligent protocol conversion module developed by Chengdu Ebyte ElectronicTechnology Co., Ltd. The product enables bidirectional conversion between CAN and TTL data in different protocols. The product supports serial AT command configuration and host computer configuration device parameters and operating modes, There are five data conversion modes, including transparent conversion.transparent ribbon identity conversion, protocol transformation, Modbus RTU transformation, and custom protocol transformation (user). At the same time, the ECAN-S01 intelligent protocol converter has the characteristics of small size and easy installation, which has a high cost performance in CAN-BUS product development and data analysis applications, and is a reliable assistant for engineering applications, project debugging and product development.
Product Features
Bidirectional conversion between CAN and TTL is supported
Supports Transparent Conversion, Ribbon ldentity Conversion, Protocol Transformation, Custom Protocol Transformation
Supports Modbus RTU conversion
Support TTL interface, AT instruction, host computer parameter configuration.
Supports hardware restore
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ECAN-S01-TB |
| voltage | 2.3V～5.5V |
| Working current | Standby current: 17.5mA@5V TX current: 20mA@5V |
| Operating temperature | -40℃～85℃, industrial grade |
| Communication level | 3.3V, if connected to 5V, level conversion is required |
| Working humidity | 10%～90%, relative humidity, non-condensing |
| Serial port baud rate | 115200 bps |
| Parity check | None |
| Data bit | 8 |
| Stop bit | 1 |
| Flow Control | close |
| CAN baud rate | 100K bps |
| CAN ID | 0x00000000 |
| Transparent transmission mode | Receive all data types |
Actual product photos
