Product Details
|
Description The ATF1516AS is a high-performance, high-density complex programmable logic device (CPLD) that utilizes Atmel’s proven electrically-erasable technology. With 256 logic macrocells and up to 164 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI and classic PLDs. The ATF1516AS’s enhanced routing switch matrices increase usable gate count and increase odds of successful pin-locked design modifications.
? High-density, High-performance, Electrically-erasable Complex Programmable Logic Device – 256 Macrocells – 5 Product Terms per Macrocell, Expandable up to 40 per Macrocell – 160, 192, 208 pins – 10 ns Maximum Pin-to-pin Delay – Registered Operation Up To 100 MHz – Enhanced Routing Resources ? Flexible Logic Macrocell – D/T/Latch Configurable Flip-flops – Global and Individual Register Control Signals – Global and Individual Output Enable – Programmable Output Slew Rate – Programmable Output Open Collector Option – Maximum Logic Utilization by Burying a Register within a COM Output ? Advanced Power Management Features – Automatic 3 mA Standby for “L” Version (Maximum) – Pin-controlled 4 mA Standby Mode (Typical) – Programmable Pin-keeper Inputs and I/Os – Reduced-power Feature per Macrocell ? Available in Commercial and Industrial Temperature Ranges ? Available in 160-lead PQFP, 192-pin PGA, and 208-lead RQFP Packages ? Advanced EE Technology – 100% Tested – Completely Reprogrammable – 10,000 Program/Erase Cycles – 20 Year Data Retention – 2000V ESD Protection – 200 mA Latch-up Immunity ? JTAG Boundary-scan Testing to IEEE Std. 1149.1-1990 and 1149.1a-1993 Supported ? Fast In-System Programmability (ISP) via JTAG ? PCI-compliant ? 3.3 or 5.0V I/O Pins ? Security Fuse Feature |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- UC1901J |
| Part# | UC1901J |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | CDIP-14 |

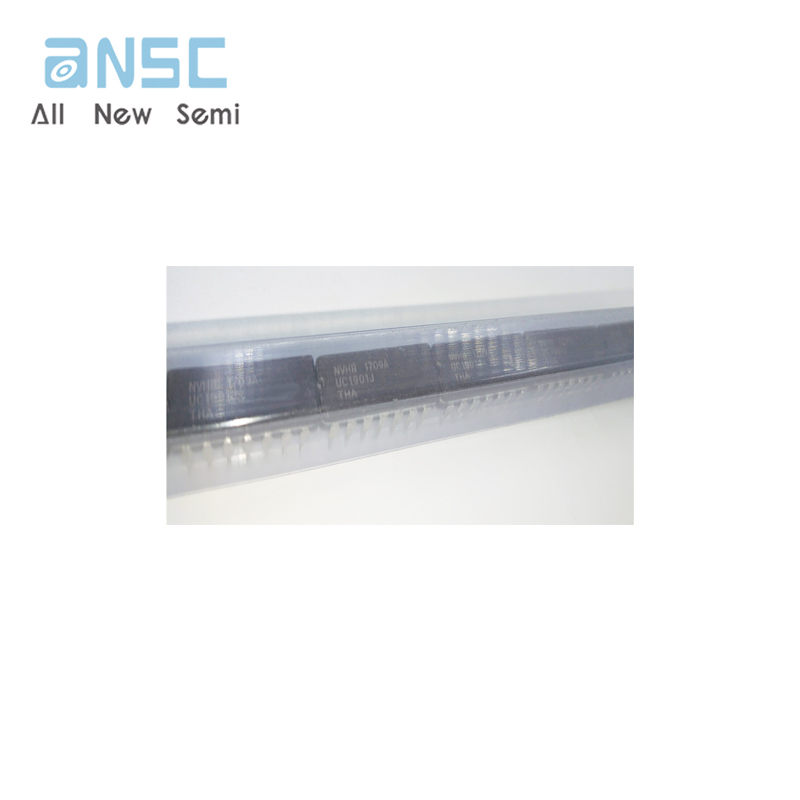

Product Photos

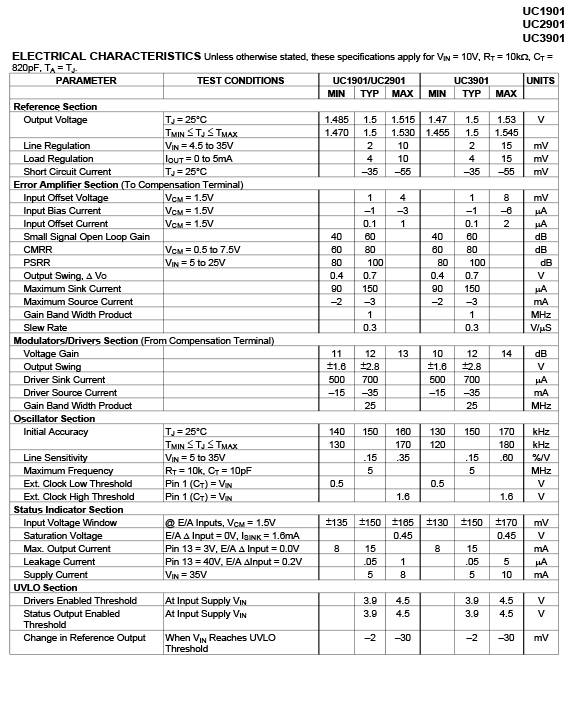

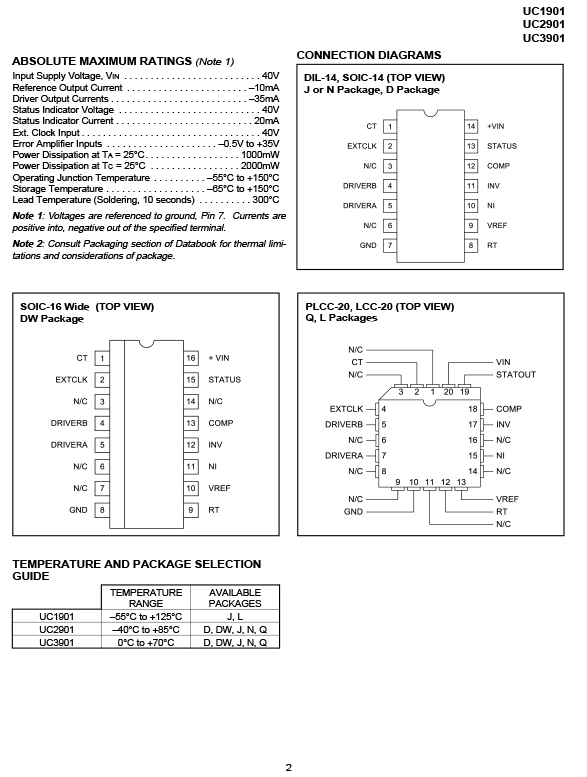

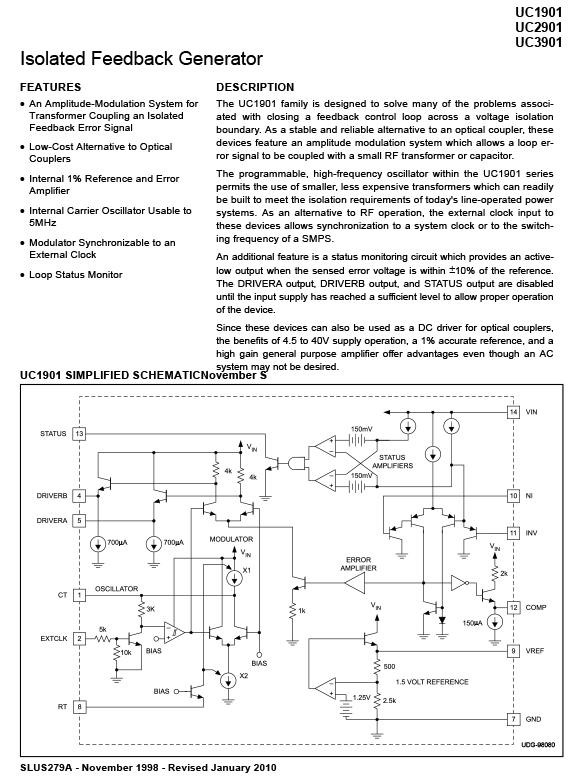

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
