Product Details
1 Features
1? Convert TTL Voltage Levels to MOS Levels
? High Sink-Current Capability
? Input Clamping Diodes Simplify
System Design
? Open-Collector Driver for Indicator Lamps
and Relays
2 Applications
? AV Receivers
? Audio Docks: Portable
? Blu-ray Players and Home Theaters
? MP3 Players or Recorders
? Personal Digital Assistants (PDA)
? Power: Telecom/Server AC/DC Supply: Single
Controller: Analog and Digital
? Solid-State Drives (SSD): Client and Enterprise
? TVs: LCD, Digital, and High-Definition (HDTV)
? Tablets: Enterprise
? Video Analytics: Server
? Wireless Headsets, Keyboards, and Mice
Product Description
TYPE | DESCRIPTION |
|---|---|
| ​ANSC PART# | ANSC - SN74LS07N |
Category | Integrated Circuits (ICs) Logic Buffers, Drivers, Receivers, Transceivers |
Manufacturer | Texas Instruments |
Series | 74LS |
Packaging | Tube |
Part Status | Active |
Logic Type | Buffer, Non-Inverting |
Number of Elements | 6 |
Number of Bits per Element | 1 |
Input Type | - |
Output Type | Open Collector |
Current - Output High, Low | -, 40mA |
Voltage - Supply | 4.75V ~ 5.25V |
Operating Temperature | 0°C ~ 70°C (TA) |
Mounting Type | Through Hole |
Package / Case | 14-DIP (0.300", 7.62mm) |
Supplier Device Package | 14-PDIP |
Base Product Number | 74LS07 |
Actual image of the product

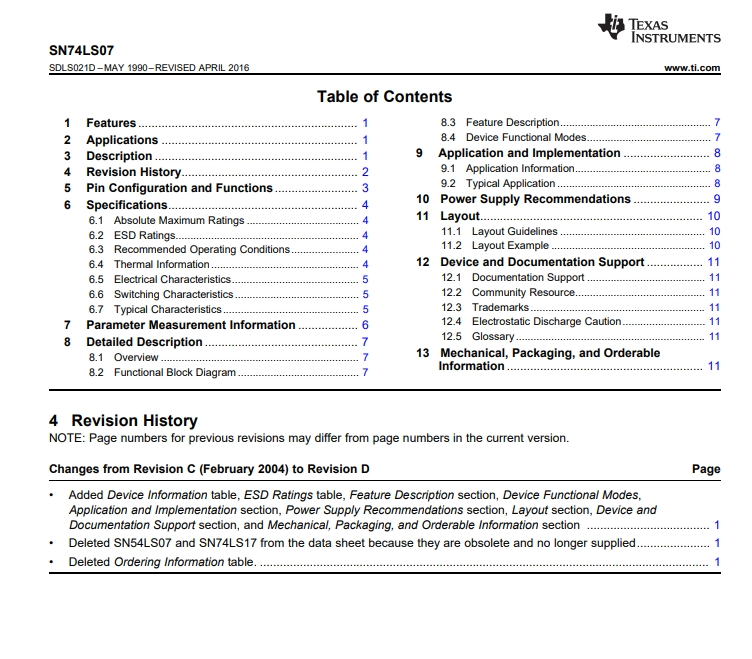

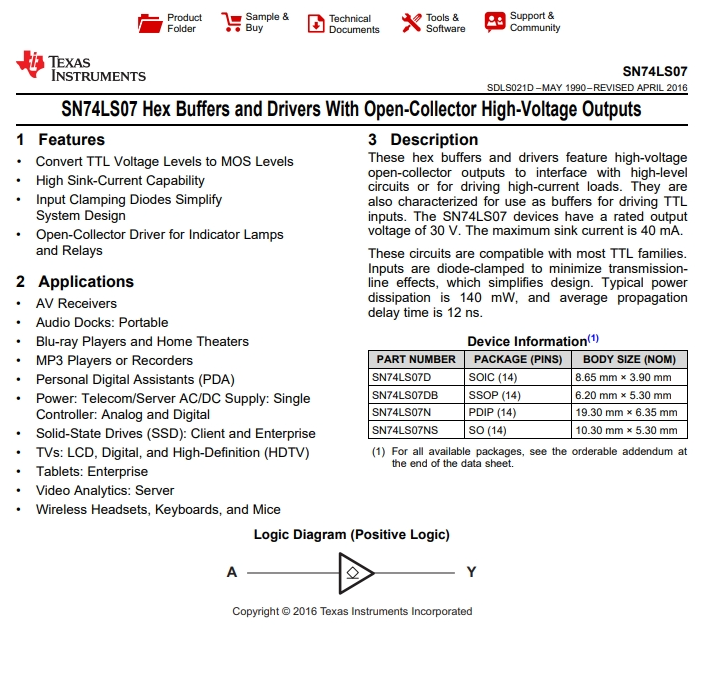

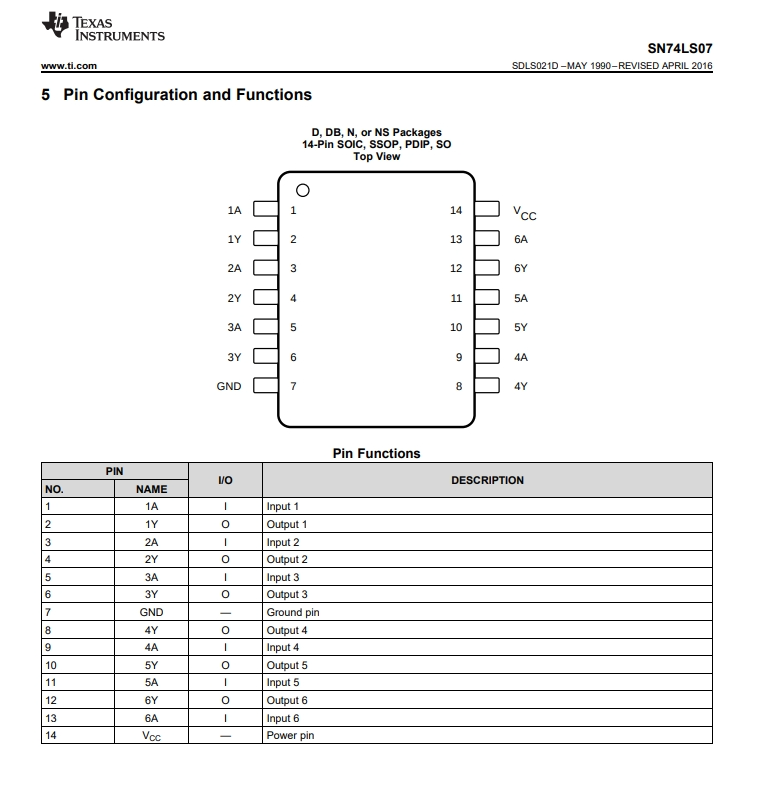

Product datasheet
For more information, please download
​
