Product Details
SN74LS10N Overview
The part comes in 14-DIP (0.300, 7.62mm) packaging, which makes it convenient to ship overseas. To ensure high reliability, a new packaging method Tube is used. A NAND Gate logic principle is used to make it work. It is necessary to ensure the full functionality of the part by providing a voltage of 4.75V~5.25V. Around 0°C~70°C is the extended operating temperature. There is a hole in Through Hole for mounting the part. In both high and low states, output current is 400μA 8mA. This item is from the 74LS series. In total, 14 terminations have occurred. This part is equipped with 3 functions that will greatly enhance the user's experience. It is part of the LS family of chips. 74LS10 can help you find device variants. Into the part body are injected 14 pins. Many applications require the use of this logic device with its Through Hole mounting. The datasheets for the 14 pins explain the functions. Parts in quiescent state carry 1.8mA current. Power supplies required for this part are specified in the datasheet as 5V. A device rated at 8mA has 8mA output current. This device has 1 outputs. During operation, there are 3 elements. The operating supply voltage for the chip is specified as 5V volts, which corresponds to the chip voltage.
SN74LS10N Features
NAND Gate Logic Type
Operating Temperature: 0°C~70°C
LS Family
Quiescent Current: 1.8mA
Output Current: 8mA
SN74LS10N Applications
There are a lot of Texas Instruments
SN74LS10N Gates and Inverters applications.
Computer
Television
Washing machine
Range hood
Refrigerator
VCR
Massager
Fan
Illumination
Cell phone
Product Description
ANSC PART# | ANSC- SN74LS10N |
Part# | SN74LS10N |
Type： | Integrated Circuits |
Manufactor | Original |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Logic Gates and Inverters |
Mfr | Texas Instruments |
Series | 74LS |
Packaging | Tube |
Part Status | Active |
Logic Type | NAND Gate |
Number of Circuits | 3 |
Number of Inputs | 3 |
Features | - |
Voltage - Supply | 4.75V ~ 5.25V |
Current - Output High, Low | 400μA, 8mA |
Input Logic Level - Low | 0.8V |
Input Logic Level - High | 2V |
Max Propagation Delay @ V, Max CL | 15ns @ 5V, 15pF |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Through Hole |
Supplier Device Package | 14-PDIP |
Package / Case | 14-DIP (0.300", 7.62mm) |
Base Product Number | 74LS10 |

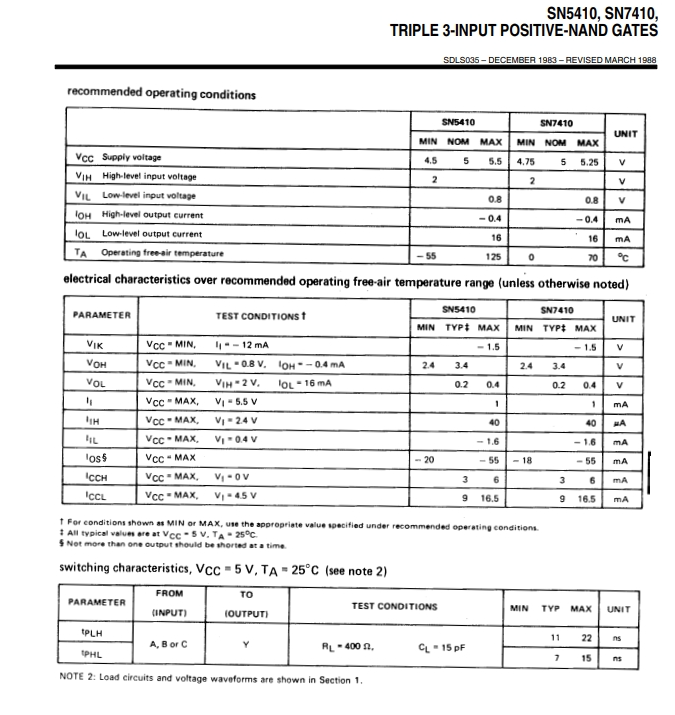

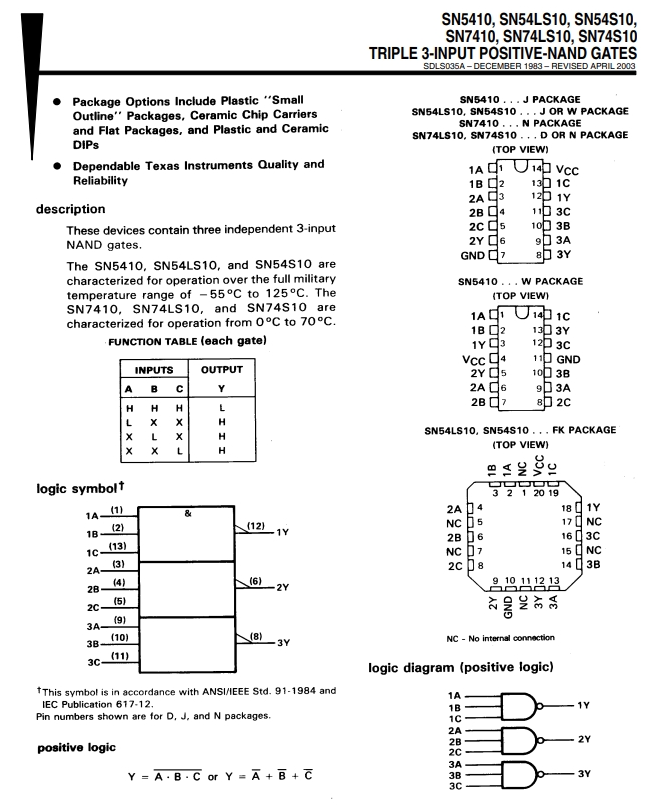

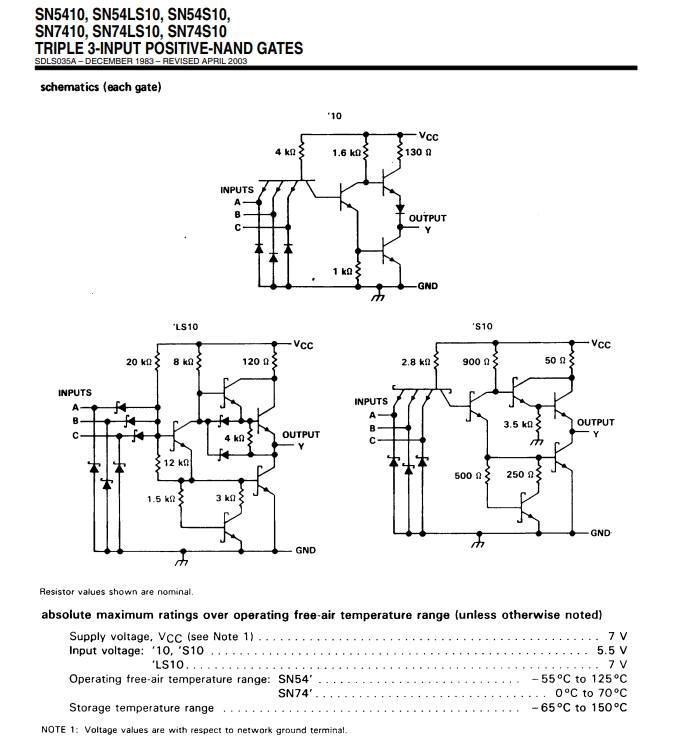

Product datasheet
For more information, please download
​
