Product Details

SN74LS244N Overview

Buffer uses a neat 20-DIP (0.300, 7.62mm) package. This logic IC uses the Tube external packaging. This digital buffer is available in the Through Hole mount. This is a typical Buffer, Non-Inverting logic integrated circuit that sees a broad field of applications. This network transceiver is fed with a supply voltage of 4.75V~5.25V. This automotive buffer is qualified to operate within the ambient temperature of 0°C~70°C TA. The high and low logic state output current of It is 15mA 24mA. Digital buffer can deal with 3-State output (s). All of the 2 elements are put into use. It is one of the 74LS series transceivers. It is suitable for Through Hole applications. It has 20 pins. The network transceiver employs 4 bits for each element. You can search 74LS244 for other related electronic component. In quiescent state, the electronic component uses 46mA. To run the part safely and stably in a circuit, 5V recommends users apply 5V on the lectronic component. 8 efficient bits are included within the network transceiver. This network transceiver has 8 channels for high quality communication. It is capable of operating under a temperature as low as 0°C. It should operate at an ambient temperature no higher than 70°C. Logical driver outputs 24mA in its low-level output mode. In high-level output mode, the electronic component may conduct -15mA of current. The voltage used to run this electrical part should be 4.75V at least. In regard to the maximum supply voltage, it is rated 5.25V. It is able to output 8 signal lines. Because of its 8 lines level input capability, It is more cost-effective on transimitting signals. The Supplier network transceiver package of this part would be 20-PDIP. It is sufficient to make 8 outputs. It is characterized to have 8 inputs. The fundamental operation of It is based on 8 circuits. It operates on 100μA suply current.

SN74LS244N Features

High Level Output: 24mA
Low Level Output: -15mA

SN74LS244N Applications

There are a lot of Texas Instruments
SN74LS244N Buffers & Transceivers applications.

• Cell phones

• Wireless modems

• Remote controls

• Wireless network systems

• Satellite communications networks

• Ethernet circuitry

• Wired telephone

• Cordless telephone

• Desktop PC

• Notebook

Product Description

Actual image of the product

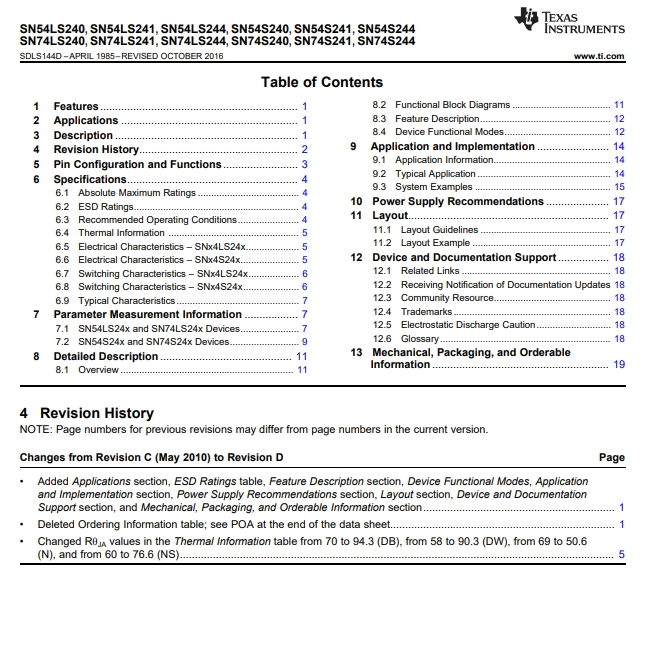

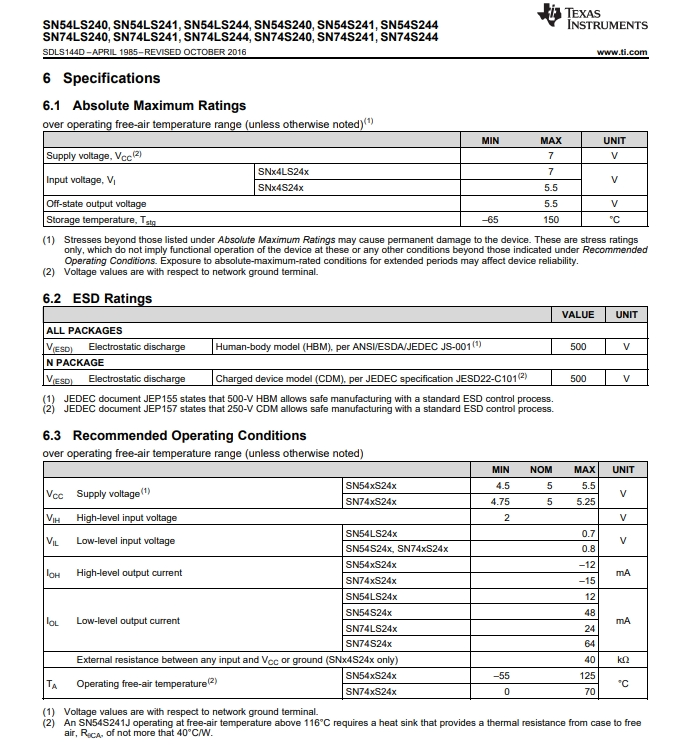

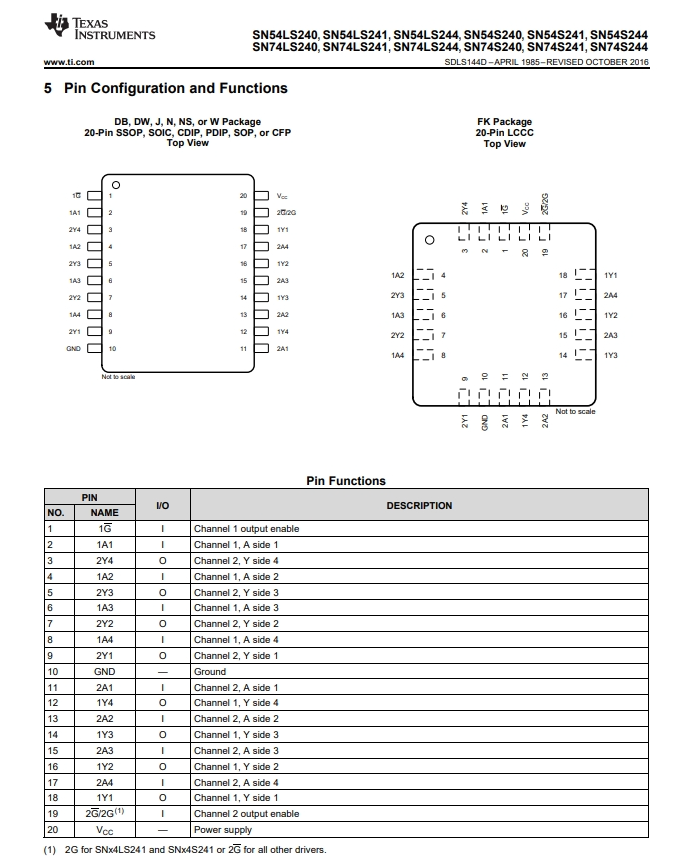

Product datasheet

For more information, please download

​

Payment&Transportation

Official Certificate&Certificate

Standard packaging

Multiple product supply

Welcome to visit our company

Warehouse Real Shot

Hot Selling Product Recommendation
