Product Details
SN74LS294N Overview
Packages are made with Tube.There is a copy of it in the 16-DIP (0.300, 7.62mm) package.In order for the device to perform properly, a voltage of 4.75V~5.25V is supplied.The Through Hole method of mounting electronic parts on a PCB is one of the most common methods.In terms of its operating temperature, it is set at 0°C~70°C.Memory features a storage capacity of 1 bits.There are many similarities between the electronic parts belonging to the series 74LS.Its base part number 74LS294 identifies a number of related parts.There are 16 pins on all component boards.16 terminations reduce the likelihood of signals reflecting off the end of a transmission line.Mounted in the Through Hole way.In order for it to be constructed, it needs 16 pins.A minimum supply voltage of 4.75V allows normal operation to be maintained.When the maximum supply voltage is kept to 5.25V, ordinary use can be maintained.The electronic part belongs to the family of LS which is known for its high quality and reliability.The frequency of the device is set to 30MHz.Power supply current is kept at a maximum of 50mA.As the basis for its configuration, 4 inputs are equipped.
SN74LS294N Features
SN74LS294N Applications
There are a lot of Texas Instruments
SN74LS294N Specialty Logic ICs applications.
Desktop PC
Notebook
Pocket PC
Desktop radio
Clock radio
Tuner
Portable radio
Car radio
Satellite radio receiver
Shortwave receiver
Product Description
TYPE | DESCRIPTION |
|---|---|
ANSC PART# | ANSC- SN74LS294N |
Category | Integrated Circuits (ICs) Logic Counters, Dividers |
Manufacturer | Texas Instruments |
Series | 74LS |
Packaging | Tube |
Part Status | Active |
Logic Type | Programmable Frequency Dividers/Digital Timers |
Operating Temperature | 0°C ~ 70°C |
Mounting Type | Through Hole |
Package / Case | 16-DIP (0.300", 7.62mm) |
Supplier Device Package | 16-PDIP |
Base Product Number | 74LS294 |
Actual image of the product

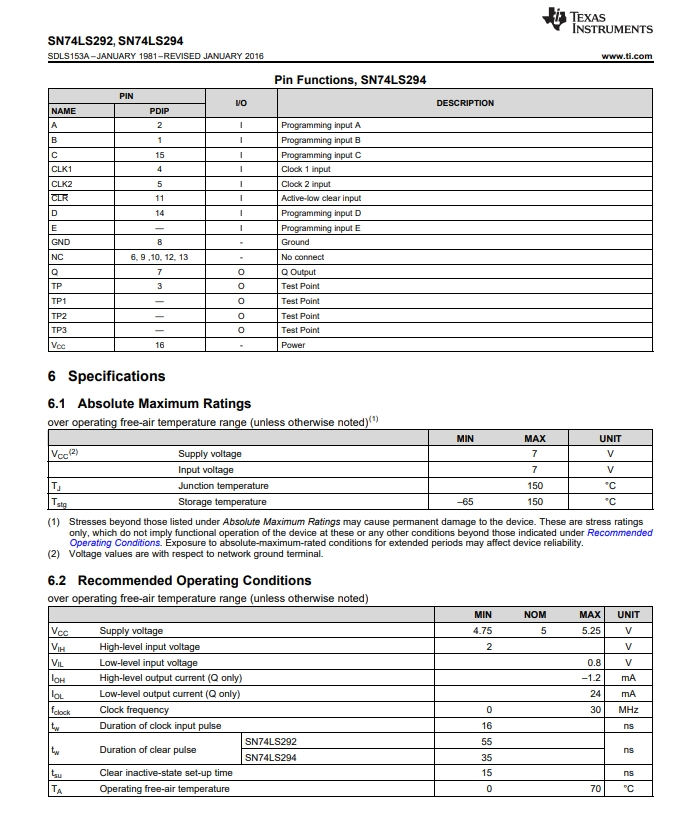

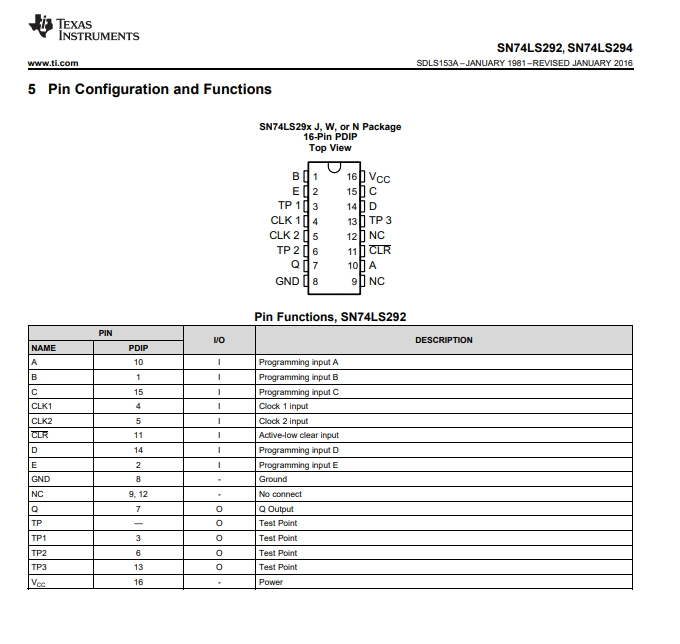

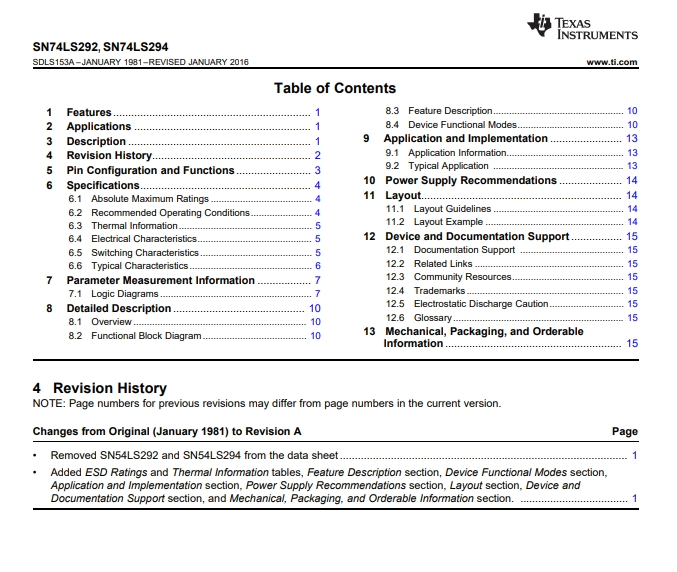

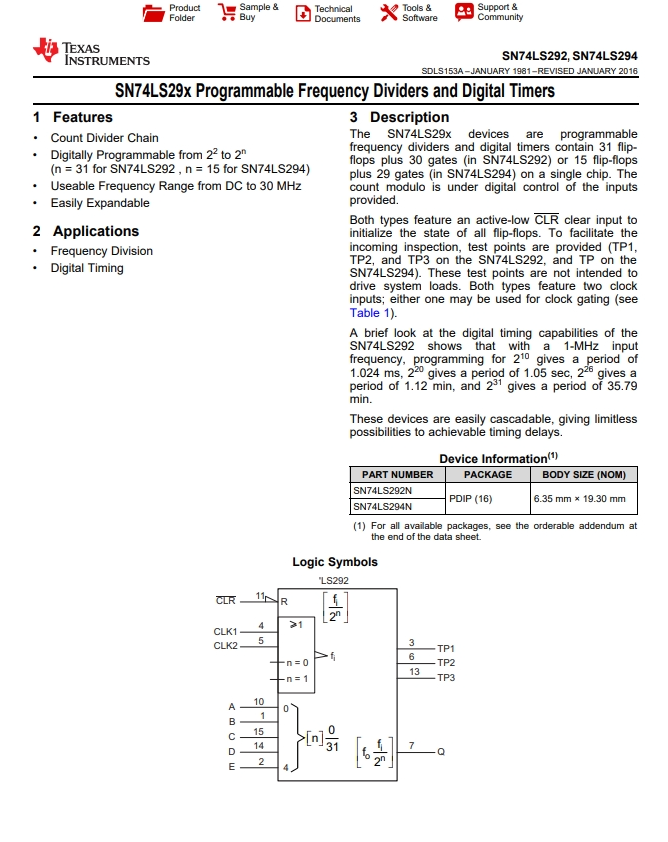

Product datasheet
For more information, please download
​
