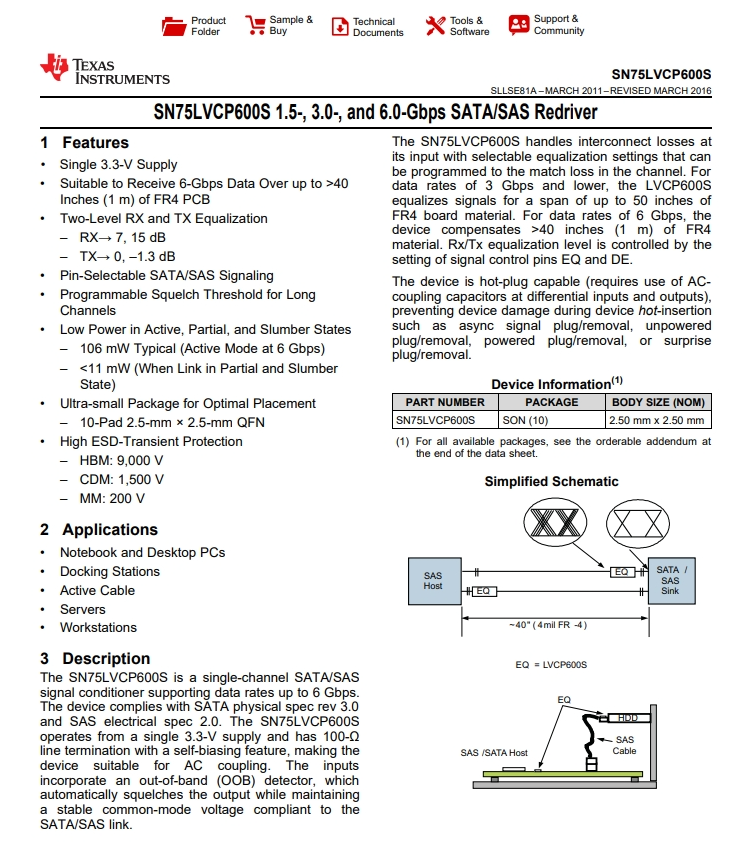

1 Features
1? Single 3.3-V Supply
? Suitable to Receive 6-Gbps Data Over up to >40
Inches (1 m) of FR4 PCB
? Two-Level RX and TX Equalization
– RX→ 7, 15 dB
– TX→ 0, –1.3 dB
? Pin-Selectable SATA/SAS Signaling
? Programmable Squelch Threshold for Long
Channels
? Low Power in Active, Partial, and Slumber States
– 106 mW Typical (Active Mode at 6 Gbps)
– <11 mW (When Link in Partial and Slumber
State)
? Ultra-small Package for Optimal Placement
– 10-Pad 2.5-mm × 2.5-mm QFN
? High ESD-Transient Protection
– HBM: 9,000 V
– CDM: 1,500 V
– MM: 200 V
2 Applications
? Notebook and Desktop PCs
? Docking Stations
? Active Cable
? Servers
? Workstations
Product Description
|
TYPE |
DESCRIPTION |
|---|---|
| ANSC PART# | ANSC - SN75LVCP600SDSKT |
|
Category |
Integrated Circuits (ICs) Interface Signal Buffers, Repeaters, Splitters |
|
Manufacturer |
Texas Instruments |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Type |
Buffer, ReDriver |
|
Applications |
SAS, SATA |
|
Input |
CML |
|
Output |
CML |
|
Data Rate (Max) |
6Gbps |
|
Number of Channels |
1 |
|
Delay Time |
280ps |
|
Signal Conditioning |
Input Equalization, Output De-Emphasis |
|
Voltage - Supply |
3V ~ 3.6V |
|
Current - Supply |
32mA |
|
Operating Temperature |
-40°C ~ 85°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
10-WFDFN Exposed Pad |
|
Supplier Device Package |
10-SON (2.5x2.5) |
|
Base Product Number |
75LVCP600 |
Actual image of the product

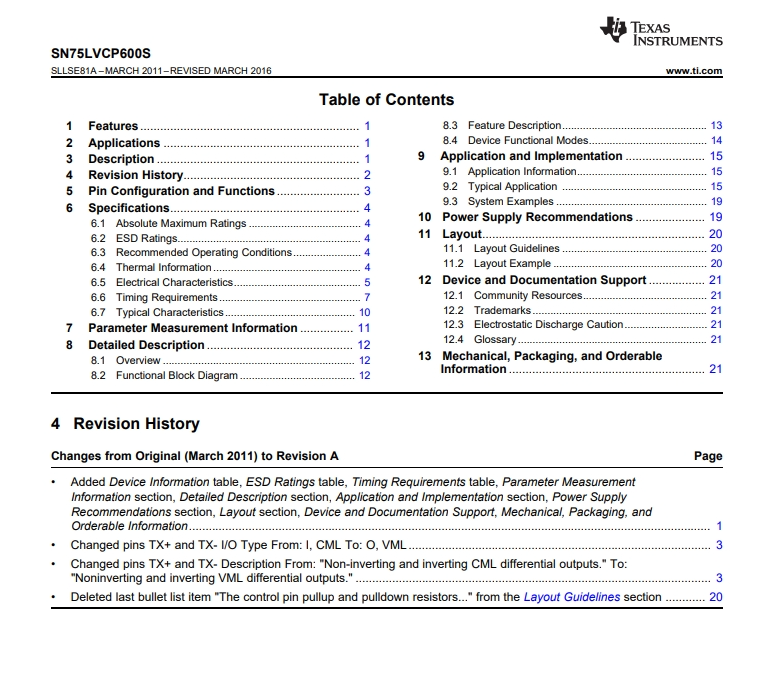

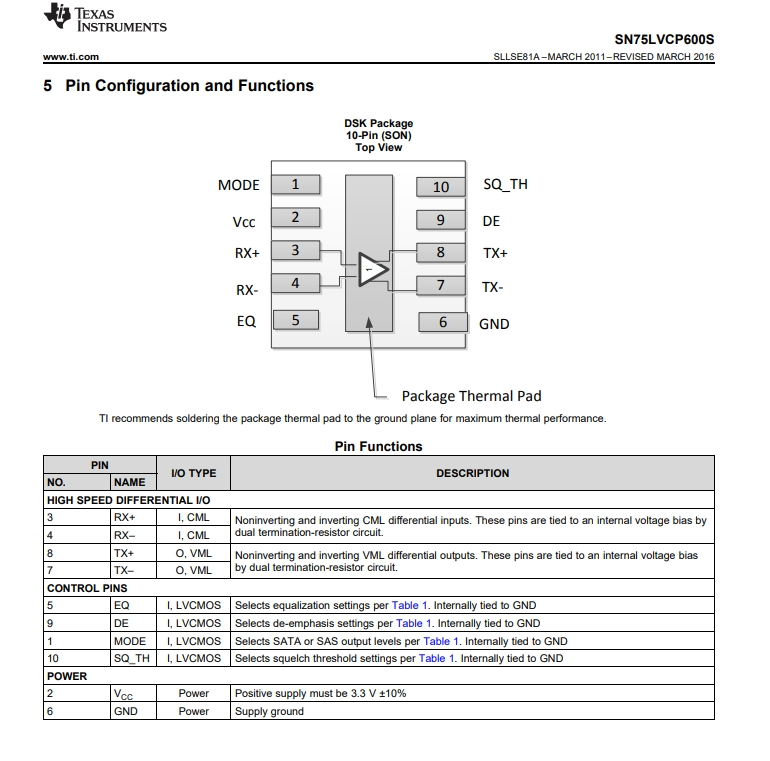

Product datasheet
For more information, please download
