Product Details
SNJ54LS02J Applications
There are a lot of Texas Instruments
SNJ54LS02J Gates and Inverters applications.
-
DVD
-
VCD
-
Computer
-
Television
-
Washing machine
-
Range hood
-
Refrigerator
-
VCR
-
Massager
-
Fan
Product Description
| Product Attribute | Attribute Value |
|---|---|
| ANSC PART# | ANSC - SNJ54LS02J |
| Manufacturer: | Texas Instruments |
| Product Category: | Logic Gates |
| Logic Function: | NOR |
| Number of Gates: | 4 Gate |
| Logic Family: | LS |
| Number of Input Lines: | 2 Input |
| Package / Case: | CDIP-16 |
| Number of Output Lines: | 1 Output |
| Low Level Output Current: | 4 mA |
| High Level Output Current: | - 400 uA |
| Propagation Delay Time: | 15 ns |
| Supply Voltage - Min: | 4.5 V |
| Supply Voltage - Max: | 5.5 V |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | Through Hole |
| Packaging: | Tube |
| Brand: | Texas Instruments |
| Function: | NOR |
| Height: | 4.57 mm |
| Input Type: | TTL |
| Length: | 19.56 mm |
| Logic Type: | 2-INPUT NOR |
| Number of Bits: | 4 bit |
| Operating Supply Voltage: | 5 V |
| Operating Temperature Range: | - 55 C to + 125 C |
| Output Type: | TTL |
| Product: | Single-Function Gates |
| Product Type: | Logic Gates |
| Series: | SN54LS02 |
| Factory Pack Quantity: | 1 |
| Subcategory: | Logic ICs |
| Width: | 6.92 mm |
| Unit Weight: | 0.042329 oz |
Actual image of the product

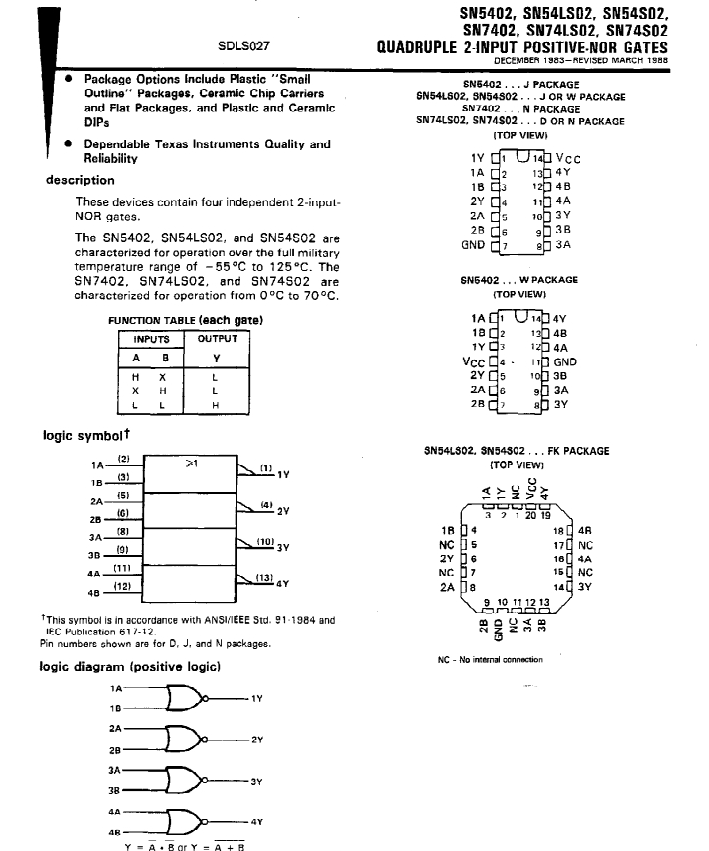

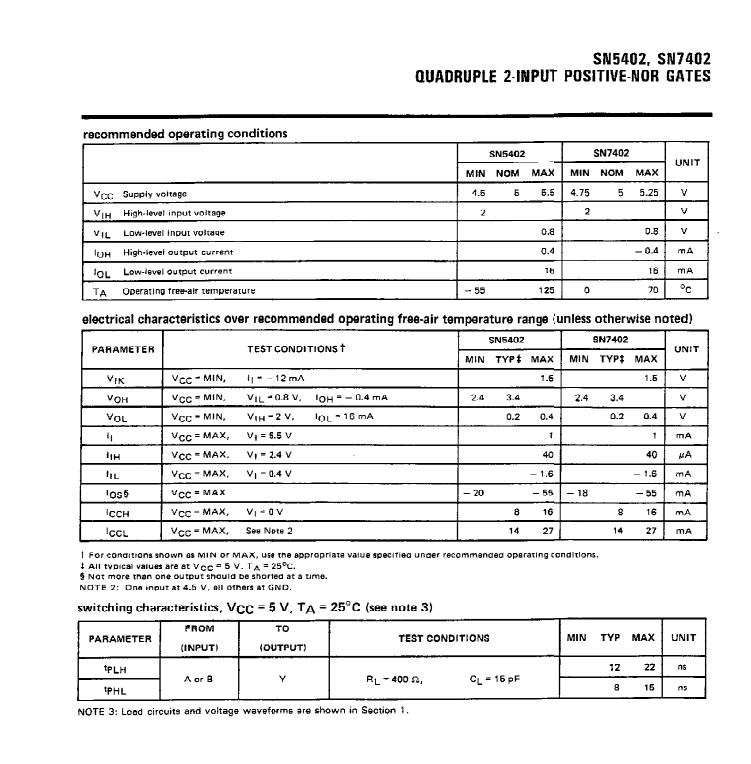

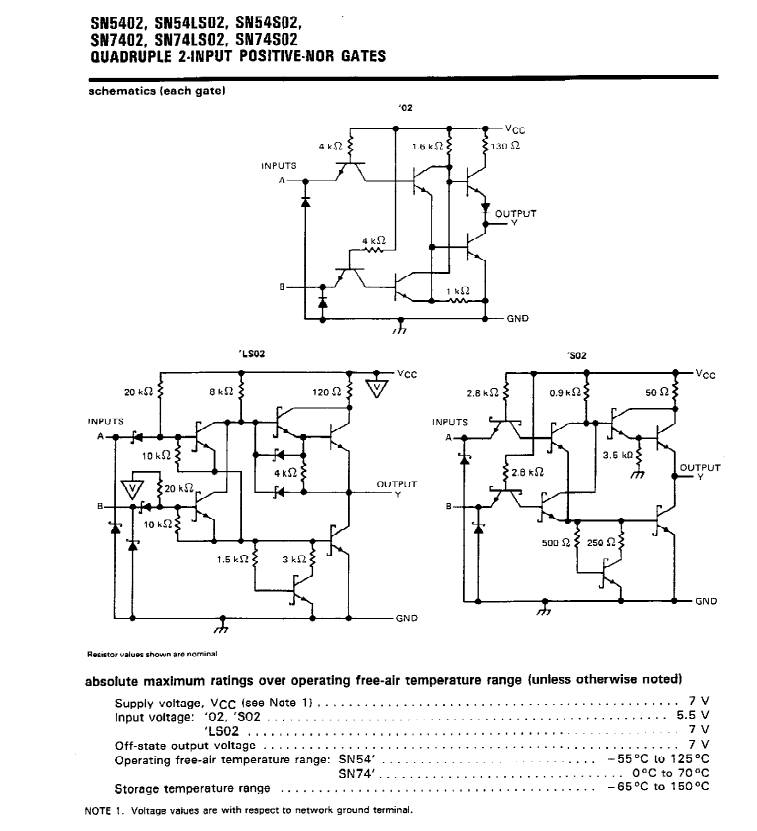

Product datasheet
For more information, please download
