Product Details
|
Product Description: The REG1117-3.3 is a highly efficient, low dropout voltage regulator from Texas Instruments, designed to provide a stable 3.3V output voltage from an input voltage range of 3.8V to 15V. With a maximum output current of 800mA, this regulator is ideal for a wide range of applications, including industrial, automotive, and consumer electronics. Features: Low dropout voltage of 1.2V at 800mA Input voltage range of 3.8V to 15V Output voltage accuracy of 1% Over current and over temperature protection Quiescent current of 4mA Radiation hardening: No REACH SVHC: No SVHC Pbfree code: yes RoHS3 compliant Surface mount package with gull wing terminals Operating temperature range of -40°C to 125°C Peak reflow temperature of 260°C Package type: TO-261-4, TO-261AA
Industrial control systems Automotive electronics Consumer electronics Medical devices Aerospace and defense systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC - REG1117-3.3 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear, Low Drop Out (LDO) Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.2V @ 800mA |
| Current - Output | 800mA |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 62dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature |
-40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-4 |
| Base Product Number | REG1117 |

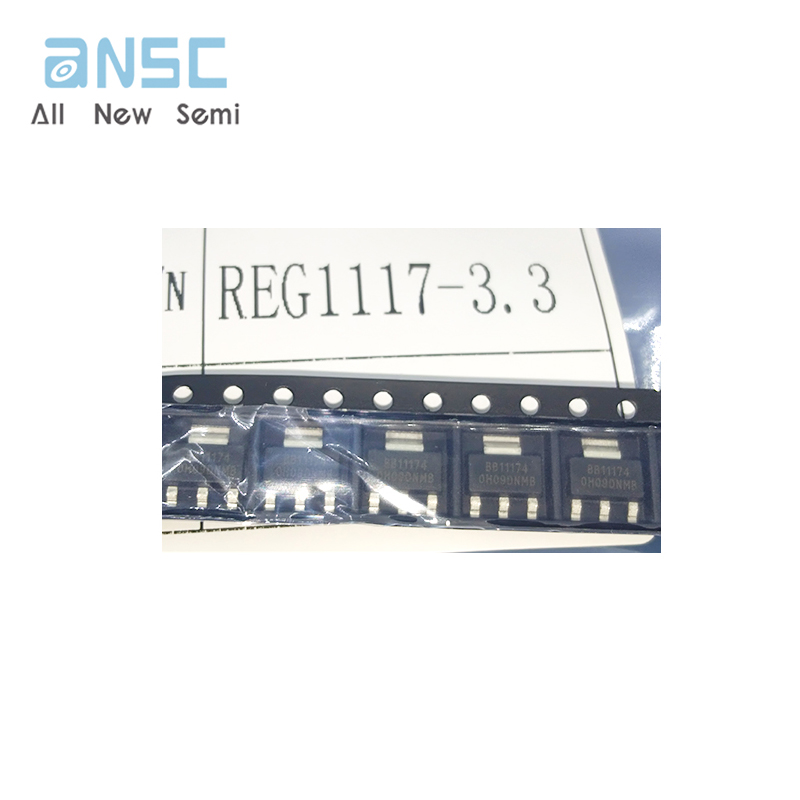

Product Photos

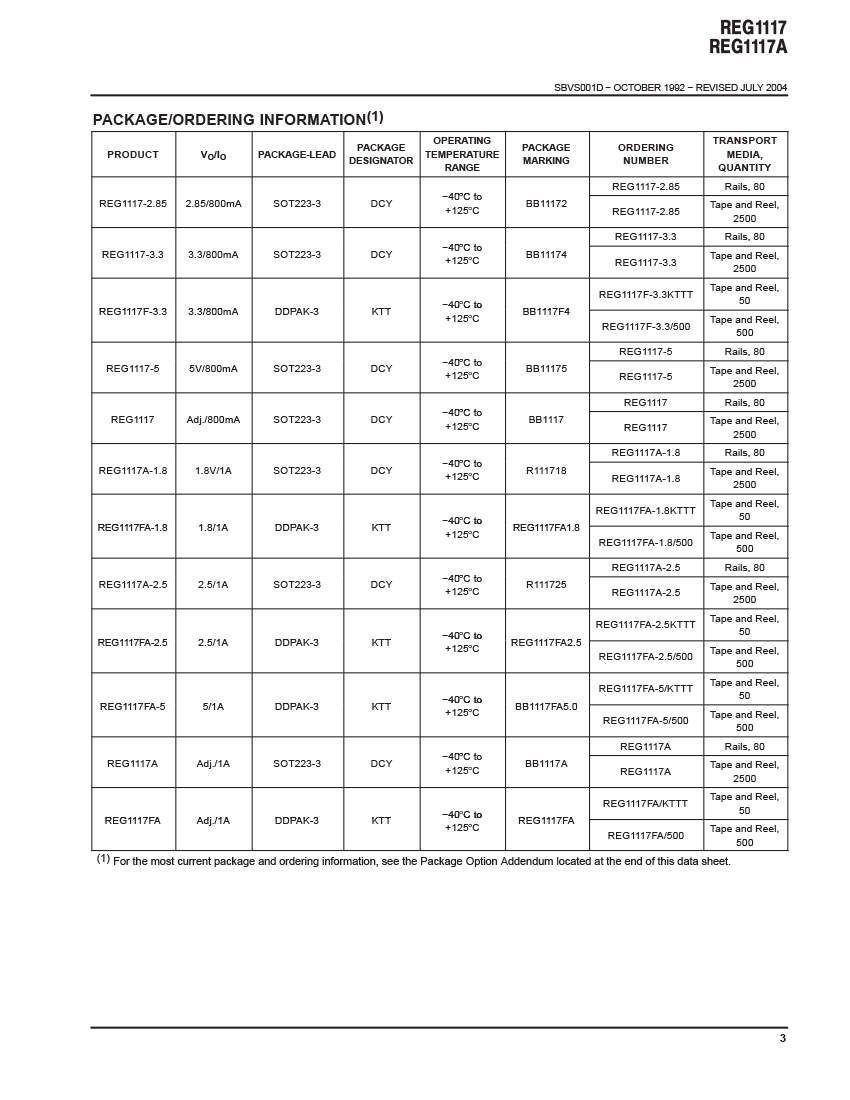

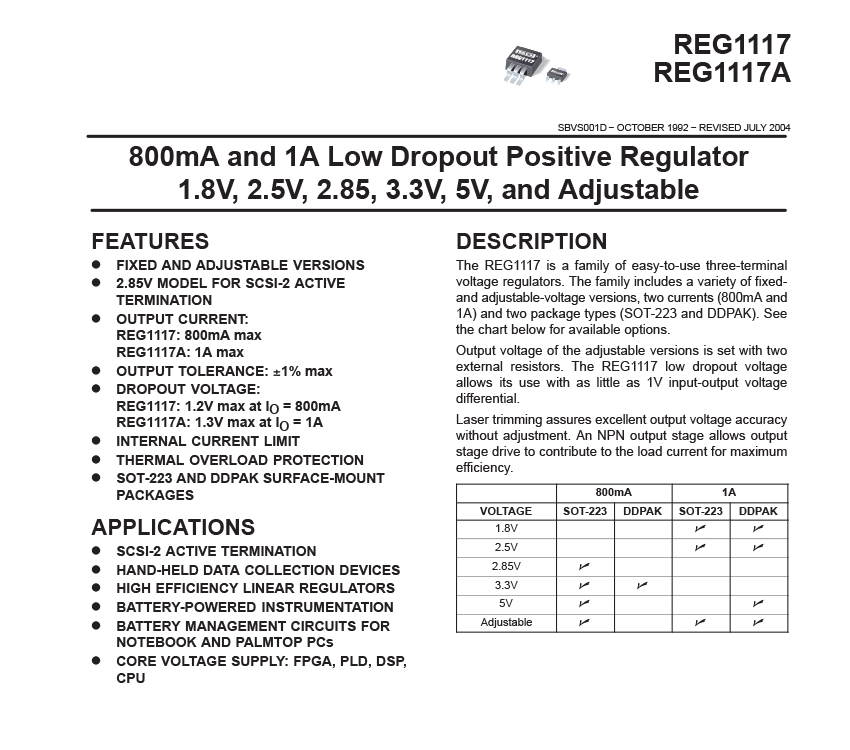

Product datasheet
For more information, please download
