Product Details
|
DESCRIPTION The Vishay Siliconix SiC402A/B an advanced stand-alone synchronous buck regulator featuring integrated power MOSFETs, bootstrap switch, and a programmable LDO in a space-saving PowerPAK MLP55-32L pin packages.
? High efficiency > 95 % ? 10 A continuous output current capability ? Integrated bootstrap switch ? Programmable 200 mA LDO with bypass logic ? Temperature compensated current limit ? Pseudo fixed-frequency adaptive on-time control ? All ceramic solution enabled ? Programmable input UVLO threshold ? Independent enable pin for switcher and LDO ? Selectable ultra-sonic power-save mode (SiC402A) ? Selectable power-save mode (SiC402B) ? Programmable soft-start and soft-shutdown ? 1 % internal reference voltage ? Power good output ? Over-voltage and under-voltage protections
? Notebook, desktop, and server computers ? Digital HDTV and digital consumer applications ? Networking and telecommunication equipment ? Printers, DSL, and STB applications ? Embedded applications ? Point of load power supplies |
Product Description
| Type | Description |
| ANSC PART# | ANSC - SIC402ACD-T1-GE3 |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear + Switching | |
| Manufacturer | Vishay Siliconix |
| Series | microBUCK? |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Topology | Step-Down (Buck) Synchronous (1), Linear (LDO) (1) |
| Number of Outputs | 2 |
| Frequency - Switching | 200kHz ~ 1MHz |
| Voltage/Current - Output 1 | 0.6V ~ 5.5V, 10A |
| Voltage/Current - Output 2 | Adj to 0.75V, 200mA |
| Voltage/Current - Output 3 | - |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Voltage - Supply | 3V ~ 28V |
| Operating Temperature |
-40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-PowerVFQFN |
| Supplier Device Package | PowerPAK? MLP55-32 |
| Base Product Number | SIC402 |

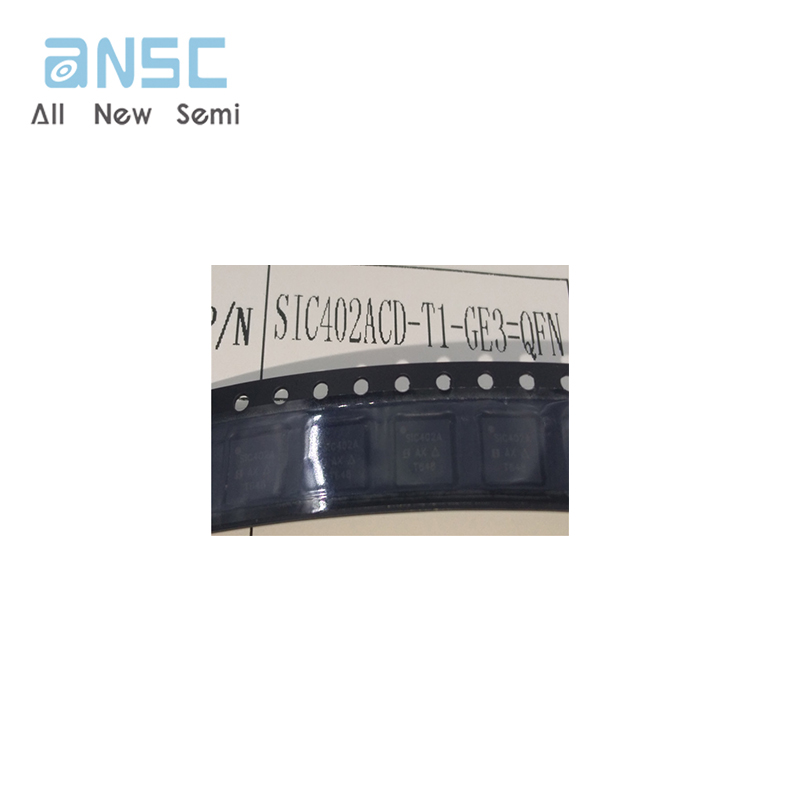

Product Photos

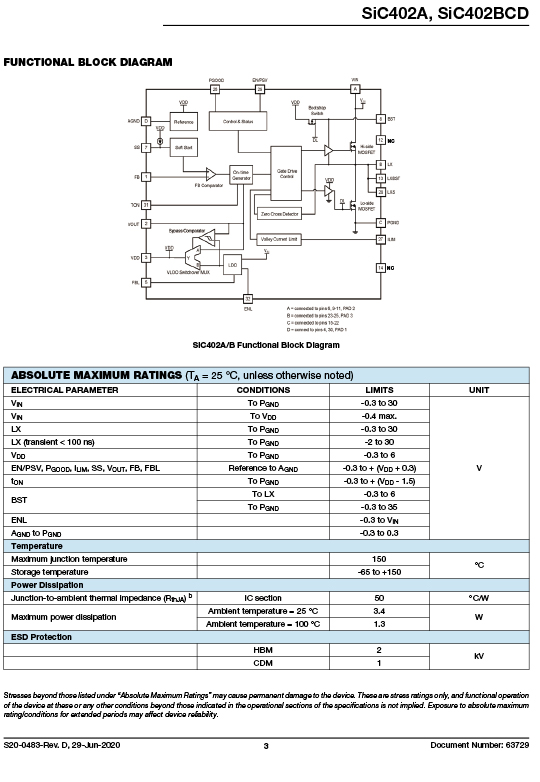

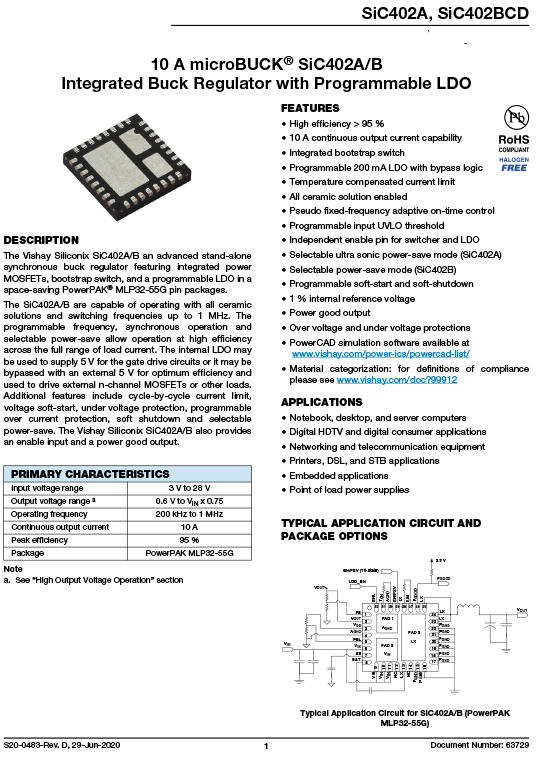

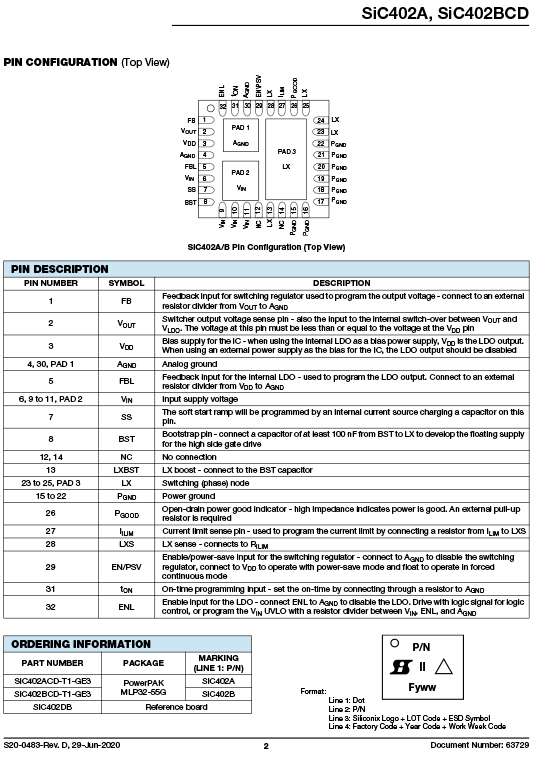

Product datasheet
For more information, please download
