Product Details
These monolithic data selectors/multiplexers contain inverters and drivers to supply full on-chip data selection to the four output gates. A separate strobe input is provided.
A 4-bit word is selected from one of two sources and is routed to the four outputs. The ’157, ’LS157, and ’S157 present true data whereas the ’LS158 and ’S158 present inverted data to minimize propagation delay time.
Product Description
| Product Attribute | Attribute Value |
|---|---|
| ANSC PART# | ANSC - SN54S157J |
| Manufacturer: | Texas Instruments |
| Product Category: | Encoders, Decoders, Multiplexers & Demultiplexers |
| Product: | Selectors / Multiplexers |
| Logic Family: | S |
| Number of Input Lines: | 2 Input |
| Number of Output Lines: | 1 Output |
| Package / Case: | CDIP-16 |
| Propagation Delay Time: | 7.5 ns at 5 V |
| Supply Voltage - Min: | 4.5 V |
| Supply Voltage - Max: | 5.5 V |
| Mounting Style: | Through Hole |
| Minimum Operating Temperature: | - 55 C |
| Maximum Operating Temperature: | + 125 C |
| Packaging: | Tube |
| Brand: | Texas Instruments |
| Function: | Multiplexer |
| Height: | 4.57 mm |
| High Level Output Current: | - 1 mA |
| Length: | 19.56 mm |
| Logic Type: | Data Selectors/Multiplexers |
| Low Level Output Current: | 20 mA |
| Number of Circuits: | Quad |
| Operating Supply Voltage: | 5 V |
| Operating Temperature Range: | - 55 C to + 125 C |
| Product Type: | Encoders, Decoders, Multiplexers & Demultiplexers |
| Series: | SN54S157 |
| Factory Pack Quantity: | 1 |
| Subcategory: | Logic ICs |
| Technology: | Bipolar |
| Width: | 6.92 mm |

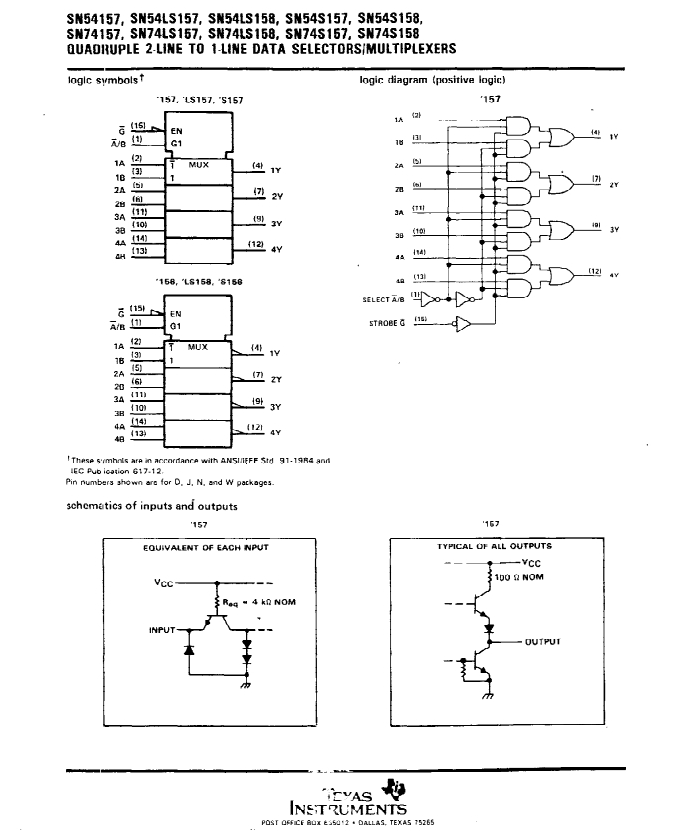

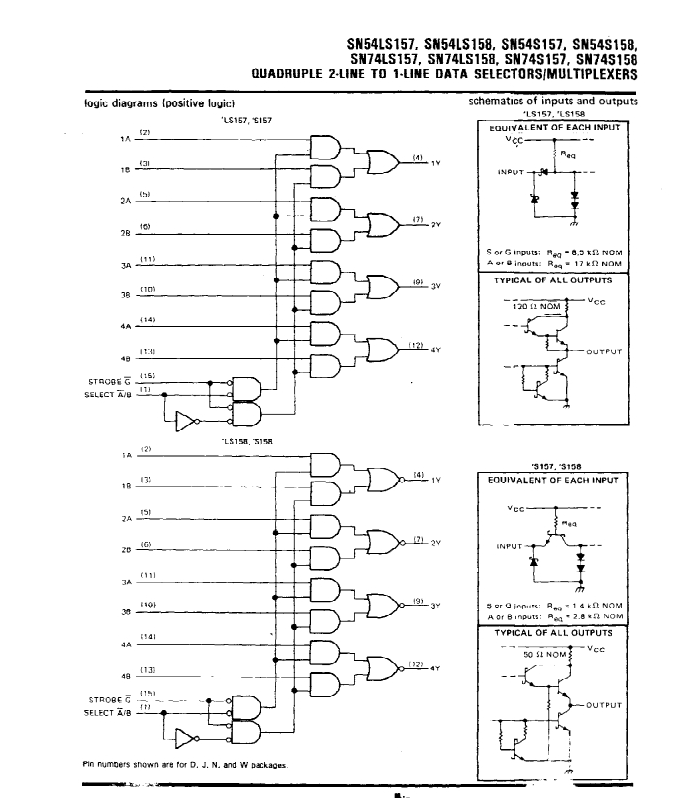

Actual image of the product
