Product Details
|
DESCRIPTION The LTC?4358 is a 5A ideal diode that uses an internal 20mΩ N-channel MOSFET to replace a Schottky diode when used in diode-OR and high current diode applications. The LTC4358 reduces power consumption, heat dissipation, and PC board area. FEATURES ■ Replaces a Power Schottky Diode ■ Internal 20mΩ N-Channel MOSFET ■ 0.5μs Turn-Off Time Limits Peak Fault Current ■ Operating Voltage Range: 9V to 26.5V ■ Smooth Switchover without Oscillation ■ No Reverse DC Current ■ Available in 14-Pin (4mm × 3mm) DFN and 16-Lead TSSOP Packages APPLICATIONS ■ N+1 Redundant Power Supplies ■ High Availability Systems ■ Telecom Infrastructure ■ Automotive Systems |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LTC4358IDE#PBF |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| OR Controllers, Ideal Diodes | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Type | N+1 ORing Controller |
| FET Type | N-Channel |
| Ratio - Input:Output | N:1 |
| Internal Switch(s) | Yes |
| Delay Time - ON |
200 μs |
| Delay Time - OFF | 300 ns |
| Current - Output (Max) | 5A |
| Current - Supply | 600 μA |
| Voltage - Supply | 9V ~ 26.5V |
| Applications | N+1 Power Supplies, High Availability |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-WFDFN Exposed Pad |
| Supplier Device Package | 14-DFN (4x3) |
| Base Product Number | LTC4358 |

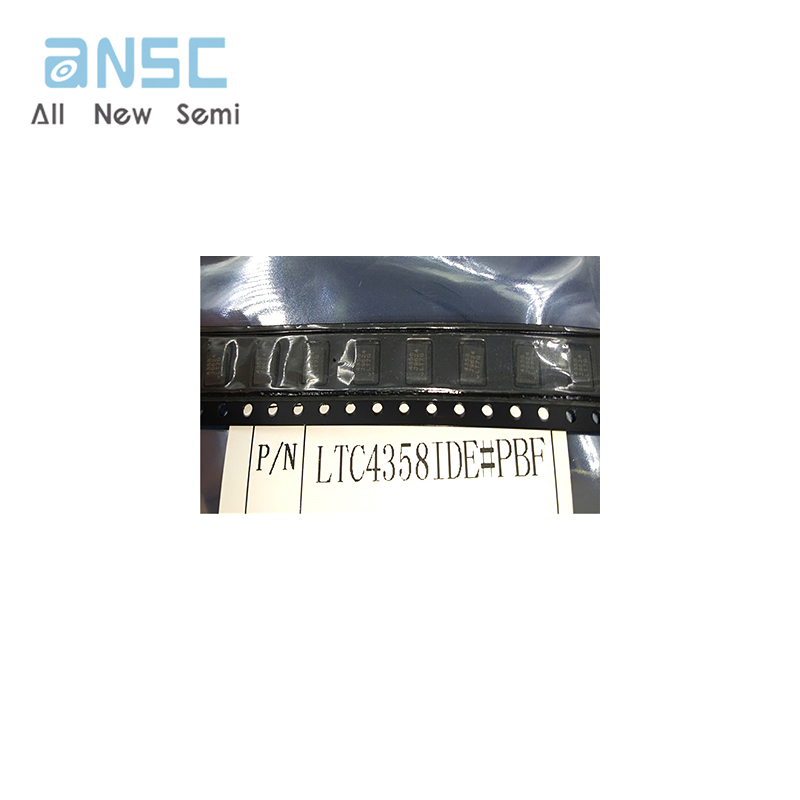

Product Photos

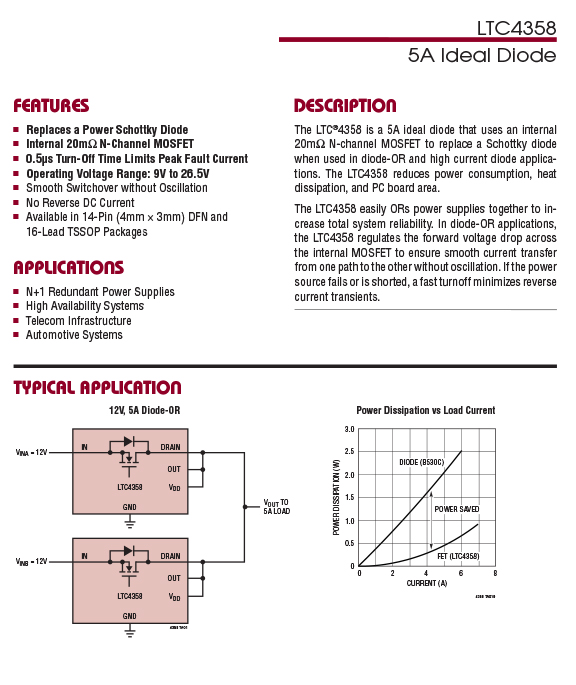

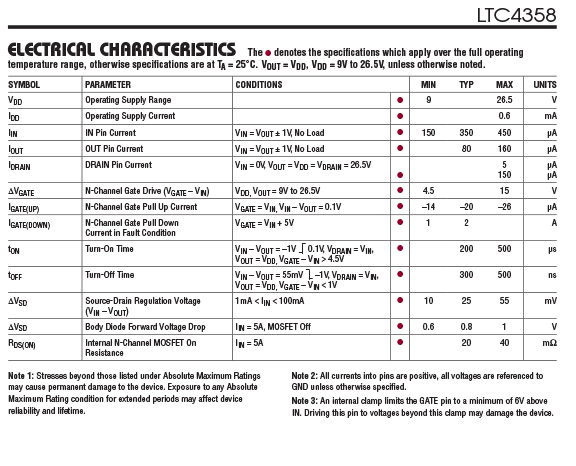

Product datasheet
For more information, please download
