Product Details

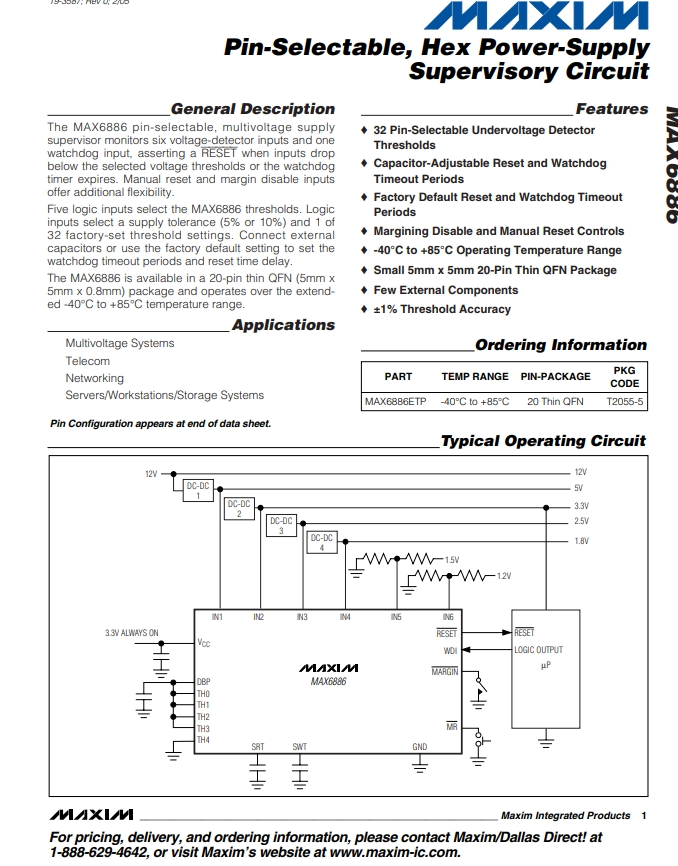

General Description
The MAX6886 pin-selectable, multivoltage supply supervisor monitors six voltage-detector
inputs and one watchdog input, asserting a RESET when inputs drop below the selected
voltage thresholds or the watchdog timer expires.
Manual reset and margin disable inputs offer additional flexibility.
Features
? 32 Pin-Selectable Undervoltage Detector Thresholds
? Capacitor-Adjustable Reset and Watchdog Timeout Periods
? Factory Default Reset and Watchdog Timeout Periods
? Margining Disable and Manual Reset Controls
? -40°C to +85°C Operating Temperature Range
? Small 5mm x 5mm 20-Pin Thin QFN Package
? Few External Components
? ±1% Threshold Accuracy
Applications
Multivoltage Systems
Telecom
Networking
Servers/Workstations/Storage Systems
Product Description
ANSC PART# | ANSC- MAX6886ETP |
Part# | MAX6886ETP |
Type： | Integrated Circuits |
Manufactor | Original |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Supervisors |
Manufacturer | Analog Devices Inc./Maxim Integrated |
Series | - |
Packaging | Tube |
Part Status | Active |
DigiKey Programmable | Not Verified |
Type | Multi-Voltage Supervisor |
Number of Voltages Monitored | 6 |
Voltage - Threshold | 6 Selectable Threshold Combinations |
Output | Open Drain or Open Collector |
Reset | Active Low |
Reset Timeout | Adjustable/Selectable |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 20-WQFN Exposed Pad |
Supplier Device Package | 20-TQFN (5x5) |
Base Product Number | MAX6886 |

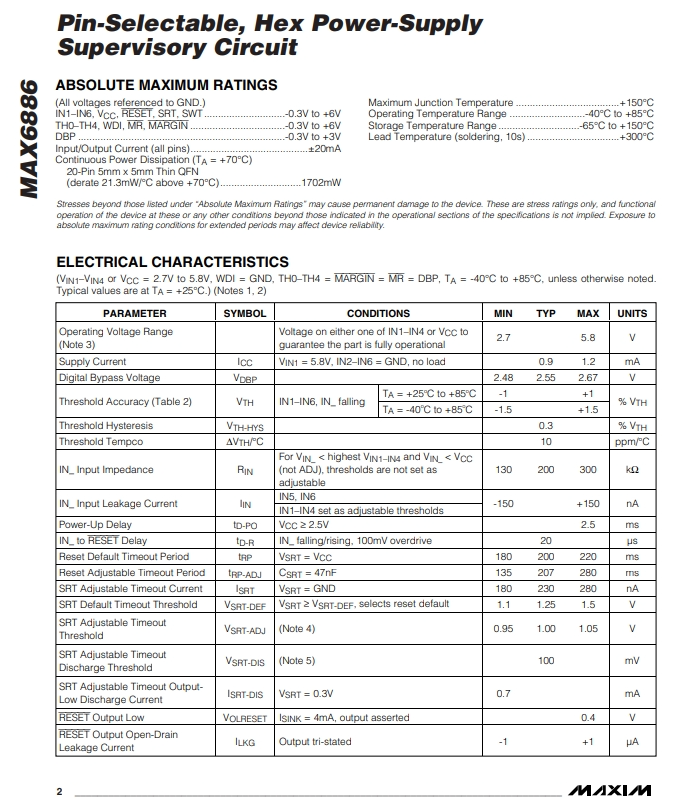

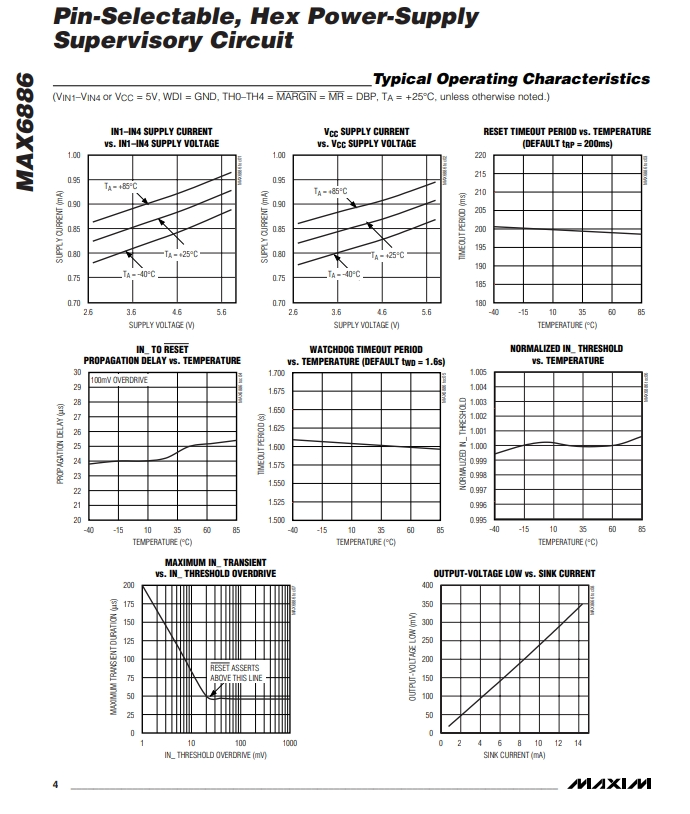

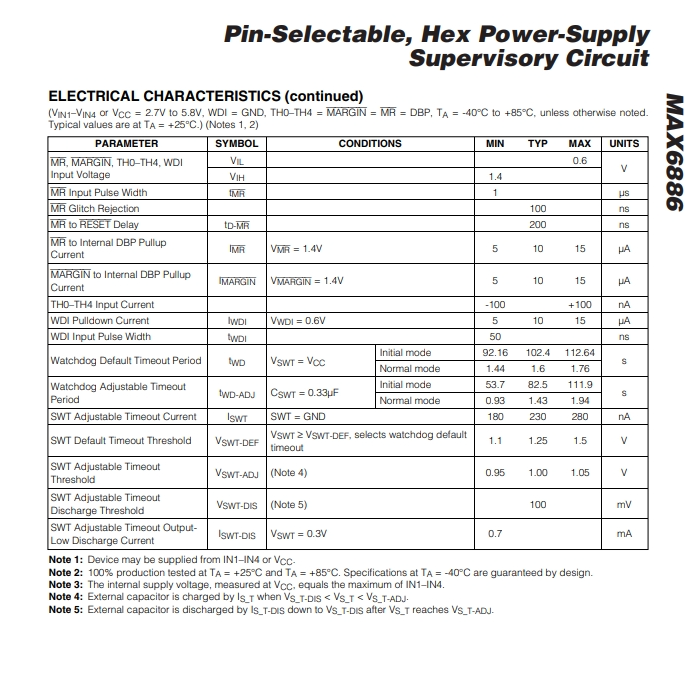

Product datasheet
