Product Details
|

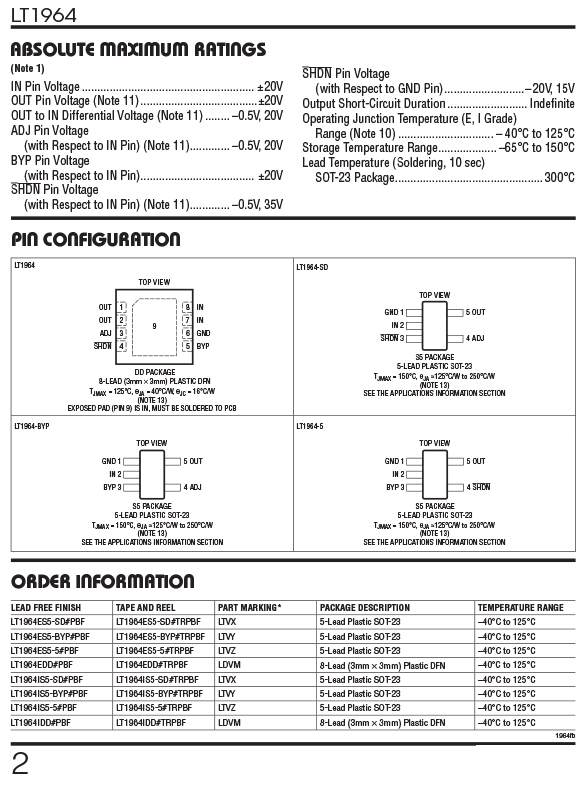

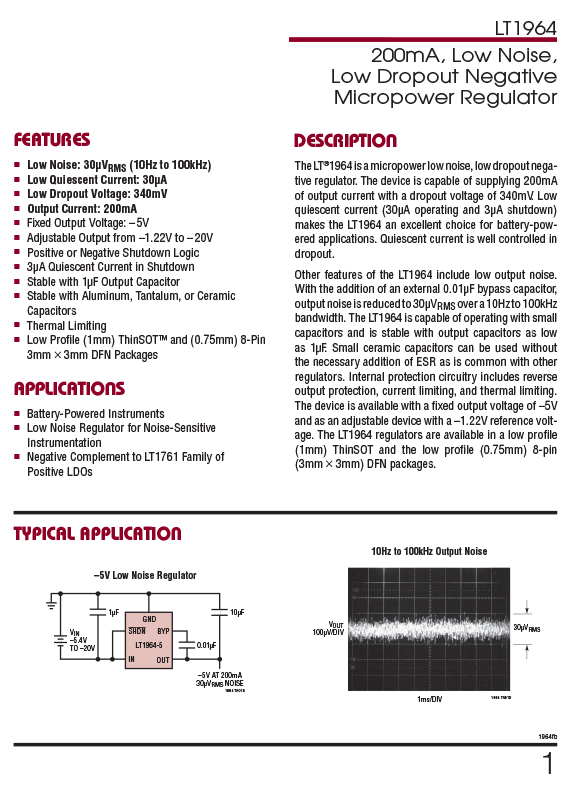

DESCRIPTION The LT?1964 is a micropower low noise, low dropout negative regulator. The device is capable of supplying 200mA of output current with a dropout voltage of 340mV. Low quiescent current (30μA operating and 3μA shut down) makes the LT1964 an excellent choice for battery powered applications. Quiescent current is well controlled in dropout. FEATURES ■ Low Profile (1mm) ThinSOTTM Package ■ Low Noise: 30μVRMS (10Hz to 100kHz) ■ Low Quiescent Current: 30μA ■ Low Dropout Voltage: 340mV ■ Output Current: 200mA ■ Fixed Output Voltage: –5V ■ Adjustable Output from –1.22V to –20V ■ Positive or Negative Shutdown Logic ■ 3μA Quiescent Current in Shutdown ■ Stable with 1μF Output Capacitor ■ Stable with Aluminum, Tantalum, or Ceramic Capacitors ■ Thermal Limiting APPLICATIONS ■ Battery-Powered Instruments ■ Low Noise Regulator for Noise-Sensitive Instrumentation ■ Negative Complement to LT1761 Family of Positive LDOs |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- LT1964IS5-5 |
| Ihs Manufacturer | Original |
| Package Description | PLASTIC, MO-193, TSOT-23, 5 PIN |
| Dropout Voltage1-Max | 0.49 V |
| Dropout Voltage1-Nom | 0.34 V |
| Input Voltage-Max | 20 V |
| Input Voltage-Min | 5.5 V |
| Length | 2.9 mm |
| Load Regulation-Max | 0.05% |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 5 |
| Operating Temperature TJ-Max |
125 °C |
| Operating Temperature TJ-Min | -40 °C |
| Output Current1-Max | 0.2 A |
| Output Voltage1-Max | 5.15 V |
| Output Voltage1-Min | 4.85 V |
| Output Voltage1-Nom | 5 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | VSSOP |
| Package Equivalence Code | TSOP5/6,.11,37 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 235 |
| Qualification Status | Not Qualified |
| Regulator Type | FIXED NEGATIVE SINGLE OUTPUT LDO REGULATOR |
| Seated Height-Max | 1 mm |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.95 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Voltage Tolerance-Max | 3% |
| Width | 1.625 mm |

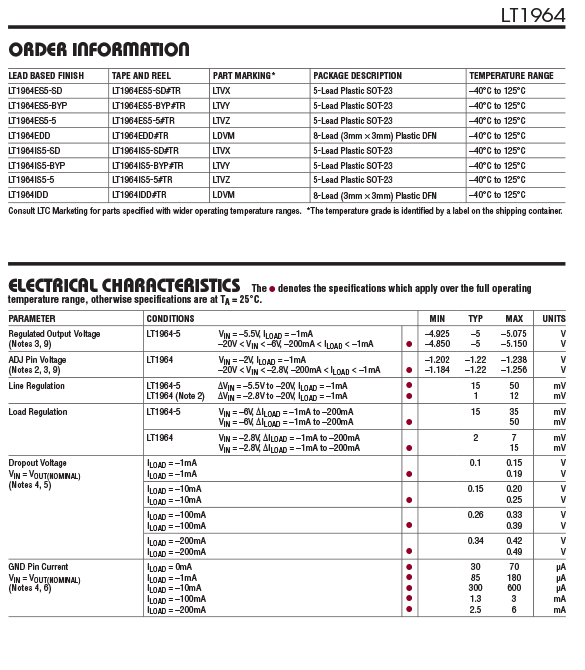

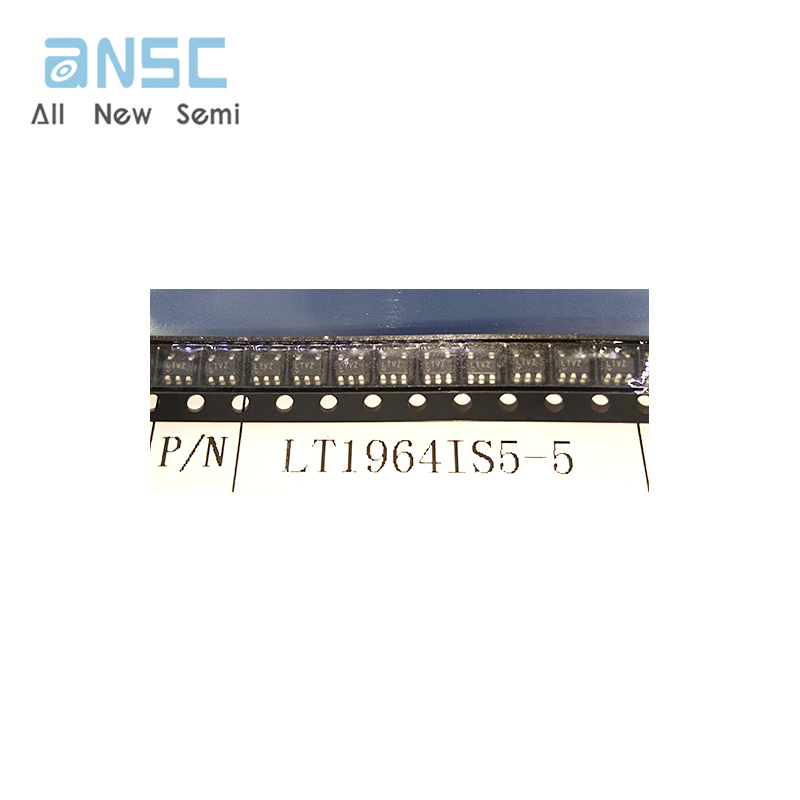

Product Photos
