Product Description
| Type# | Description |
| ANSC PART# | ANSC - LT1963AEST-3.3 |
| Ihs Manufacturer | Original |
| Part Package Code | SOT |
| Package Description | SOT-223, 3 PIN |
| Pin Count | 3 |
| Adjustability | FIXED |
| Dropout Voltage1-Max | 0.55 V |
| Dropout Voltage1-Nom | 0.34 V |
| Input Voltage Absolute-Max | 20 V |
| Input Voltage-Max | 20 V |
| Input Voltage-Min | 3.8 V |
| Length | 6.505 mm |
| Line Regulation-Max | 0.01% |
| Load Regulation-Max | 0.04% |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Outputs | 1 |
| Number of Terminals | 3 |
| Operating Temperature TJ-Max | 125 °C |
| Operating Temperature TJ-Min | -40 °C |
| Output Current1-Max | 1.5 A |
| Output Voltage1-Max | 3.4 V |
| Output Voltage1-Min | 3.2 V |
| Output Voltage1-Nom | 3.3 V |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | SOP |
| Package Equivalence Code | SOT-223 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 235 |
| Qualification Status | Not Qualified |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR |
| Seated Height-Max | 1.8 mm |
| Surface Mount | YES |
| Technology | BIPOLAR |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Pitch | 2.3 mm |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 20 |
| Voltage Tolerance-Max | 3% |
| Width | 3.505 mm |

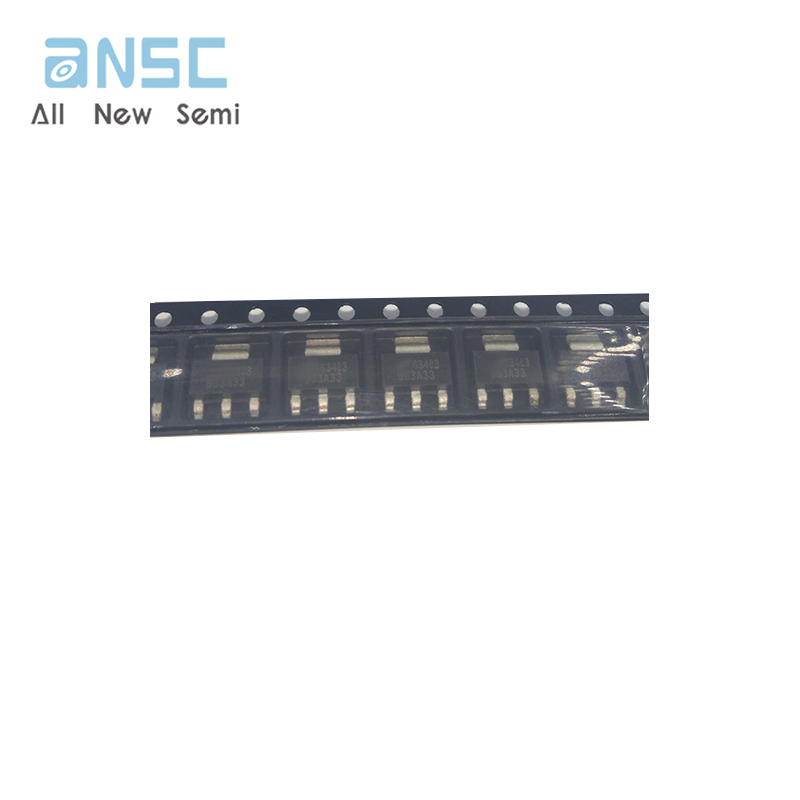

Product Photos

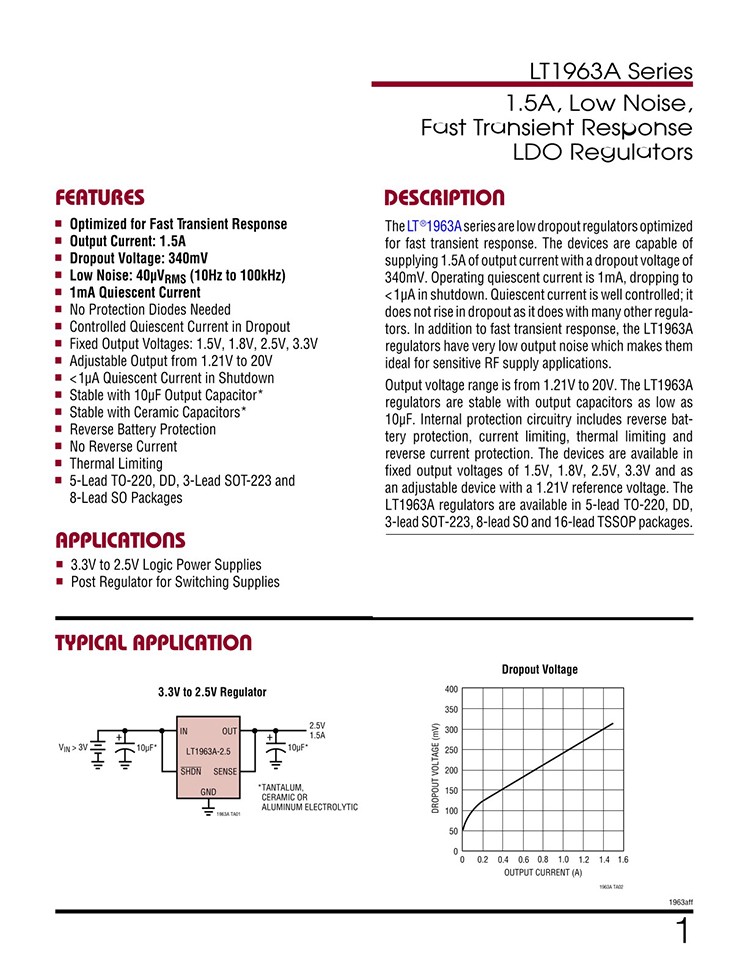

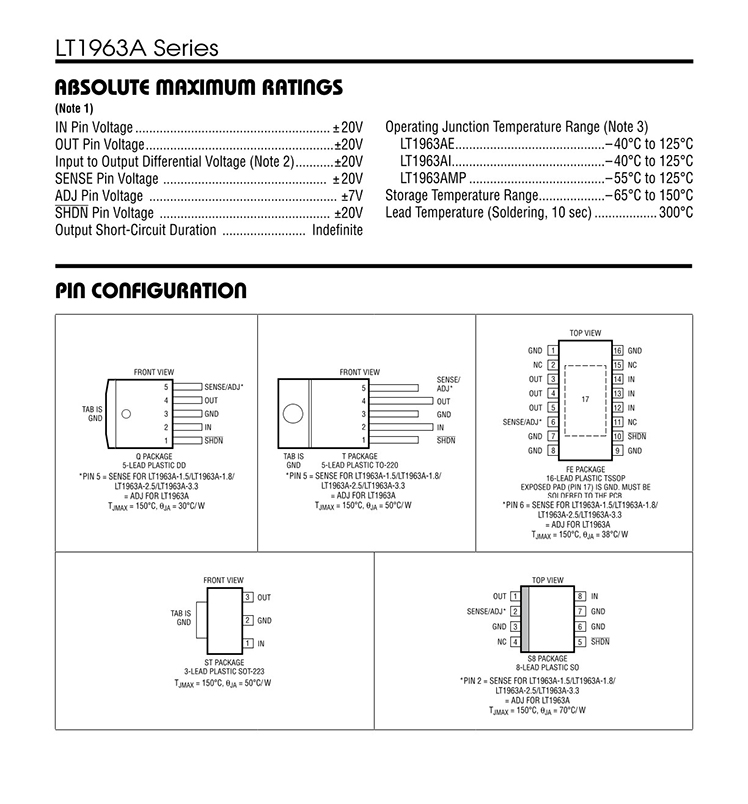

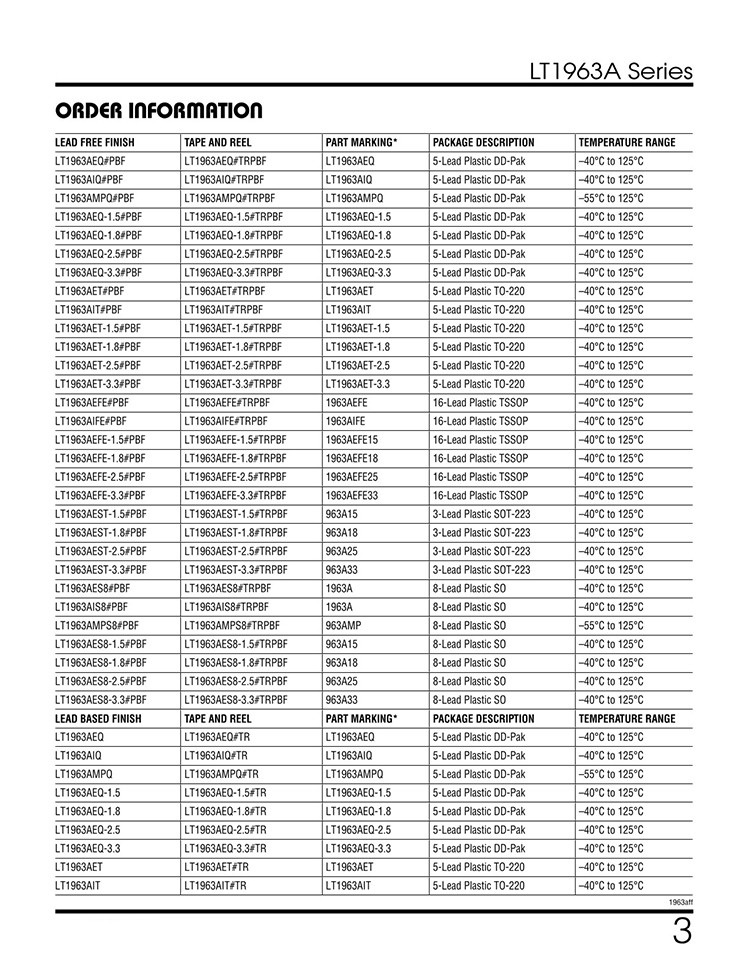

Product datasheet
For more information, please download
