Product Details
|
DESCRIPTION The LT1016 is an ultra fast (10ns) comparator specifically designed to interface directly to TTL logic while operating off either ±5V or single +5V supply. Tight offset voltage specifications and high gain allow the LT1016 to be used in precision applications. Matched complementary outputs further extend the versatility of this comparator. FEATURES ■ Ultra Fast (10ns typ) ■ Operates Off Single +5V Supply, or ±5V ■ Complementary Output to TTL ■ Low Offset Voltage ■ No Minimum Input Slew Rate Requirement ■ No Power Supply Current Spiking ■ Output Latch Capability APPLICATIONS ■ High Speed A to D Converters ■ High Speed Sampling Circuits ■ Line Receivers ■ Extended Range V to F Converters ■ Fast Pulse Height/Width Discriminators |
Product Description
| Type | Description |
| ANSC PART# | ANSC- LT1016CN8 |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Comparators | |
| Manufacturer | Original |
| Series | UltraFast? |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Standard (General Purpose) |
| Number of Elements | 1 |
| Output Type | CMOS, Complementary, TTL |
| Voltage - Supply, Single/Dual (±) | - |
| Voltage - Input Offset (Max) | 3mV @ ±5V |
| Current - Input Bias (Max) | 10μA @ ±5V |
| Current - Output (Typ) | 20mA |
| Current - Quiescent (Max) | 35mA |
| CMRR, PSRR (Typ) | 96dB CMRR, 75dB PSRR |
| Propagation Delay (Max) | 14ns |
| Hysteresis | - |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Supplier Device Package | 8-PDIP |
| Base Product Number | LT1016 |

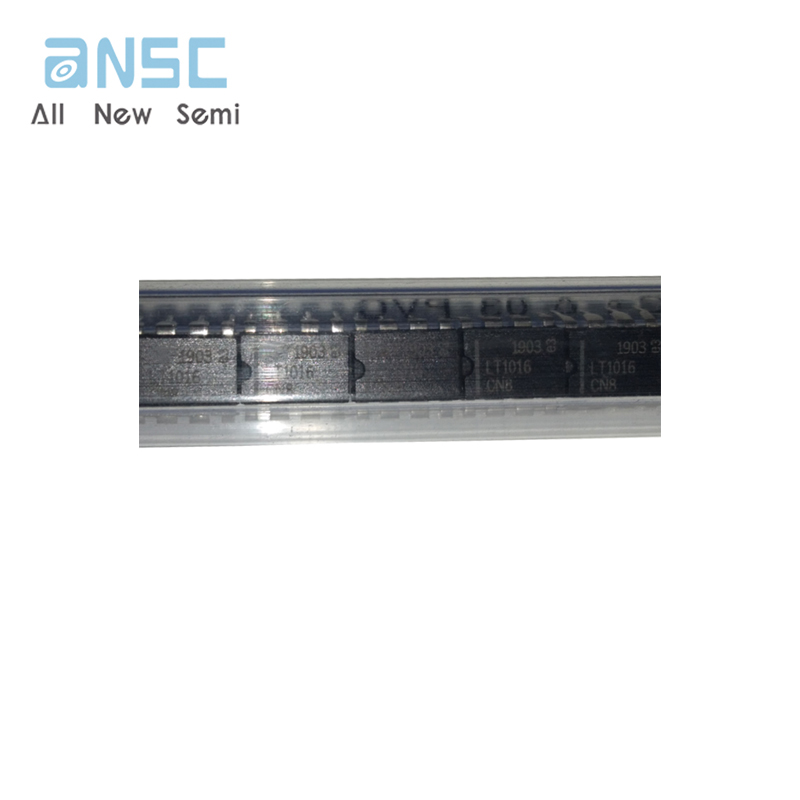

Product Photos

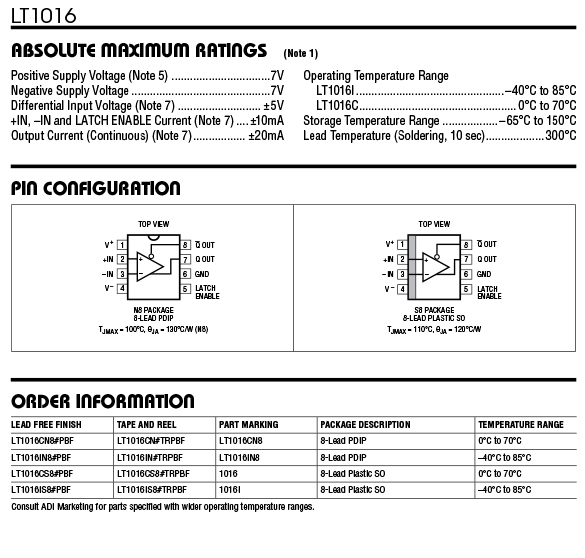

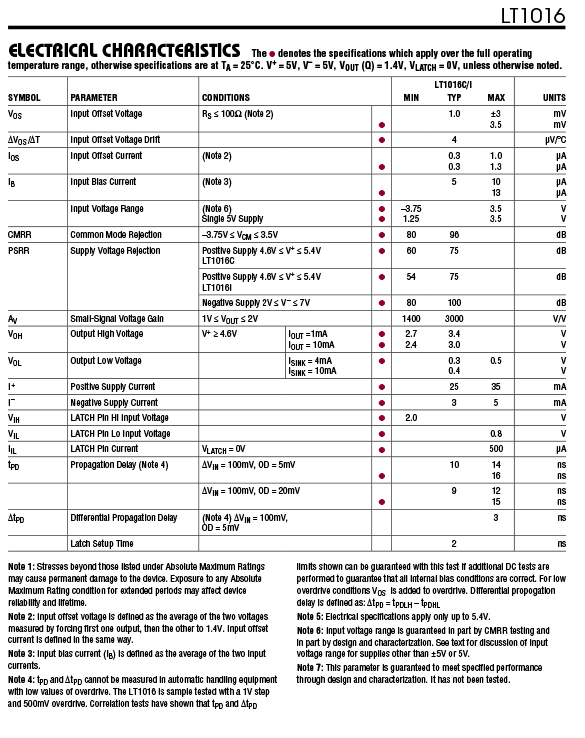

Product datasheet
For more information, please download
