Product Details
LM358DT Description
The LM358DT is a low-power dual Operational Amplifier with low input bias current. These circuits consist of two independent, high-gain, internally frequency-compensated op-amps, specifically designed to operate from a single power supply over a wide range of voltages. The low-power supply drain is independent of the magnitude of the power supply voltage. Application areas include transducer amplifiers, DC gain blocks and all the conventional op-amp circuits, which can now be more easily implemented in single power supply systems. For example, these circuits can be directly supplied with the standard +5V, which is used in logic systems and will easily provide the required interface electronics with no additional power supply. In linear mode, the input common-mode voltage range includes ground and the output voltage can also swing to ground, even though operated from only a single power supply voltage.
LM358DT Features
Internally frequency-compensated
100dB Large DC voltage gain
Very low supply current per channel essentially independent of supply voltage
Input common-mode voltage range includes negative rails
Differential input voltage range equal to the power supply voltage
Large output voltage swing 0V to (VCC+ -1.5V)
LM358DT Applications
Enterprise systems
Data center & enterprise computing Enterprise machine Enterprise projectors
Personal electronics
Connected peripherals & printers Data storage Gaming Home theater & entertainment Mobile phones PC & notebooks Portable electronics Tablets TV Wearables (non-medical)
Communications equipment
Broadband fixed line access Datacom module Wired networking Wireless infrastructure
Product Description
ANSC PART# | ANSC- LM358DT |
Part# | LM358DT |
Type： | Integrated Circuits |
Manufactor | STMicroelectronics |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Linear Amplifiers Instrumentation, OP Amps, Buffer Amps |
Mfr | STMicroelectronics |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Amplifier Type | General Purpose |
Number of Circuits | 2 |
Output Type | - |
Slew Rate | 0.6V/μs |
Gain Bandwidth Product | 1.1 MHz |
Current - Input Bias | 20 nA |
Voltage - Input Offset | 2 mV |
Current - Supply | 700μA (x2 Channels) |
Current - Output / Channel | 30 mA |
Voltage - Supply Span (Min) | 3 V |
Voltage - Supply Span (Max) | 30 V |
Operating Temperature | 0°C ~ 70°C |
Grade | Automotive |
Qualification | AEC-Q100 |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | LM358 |

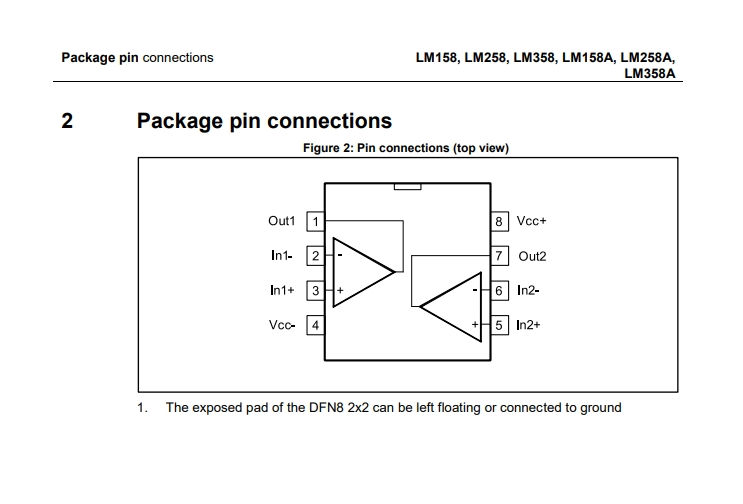

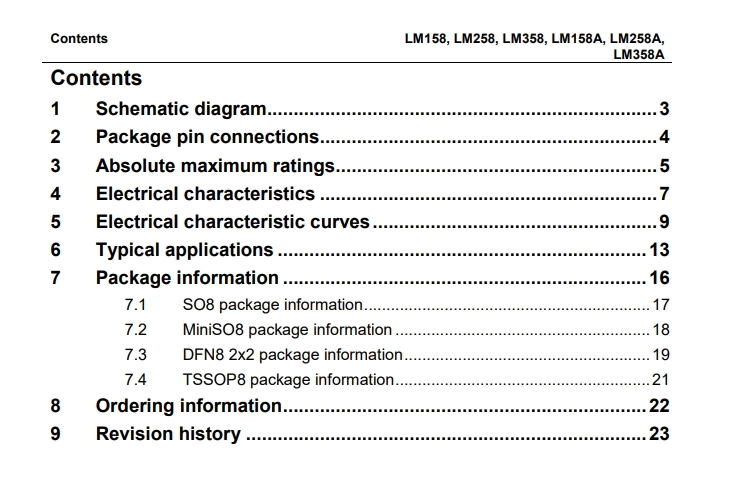

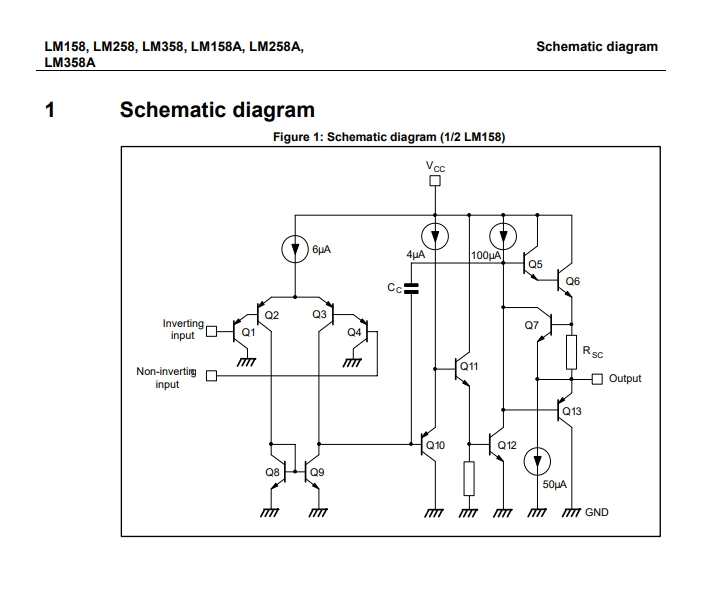

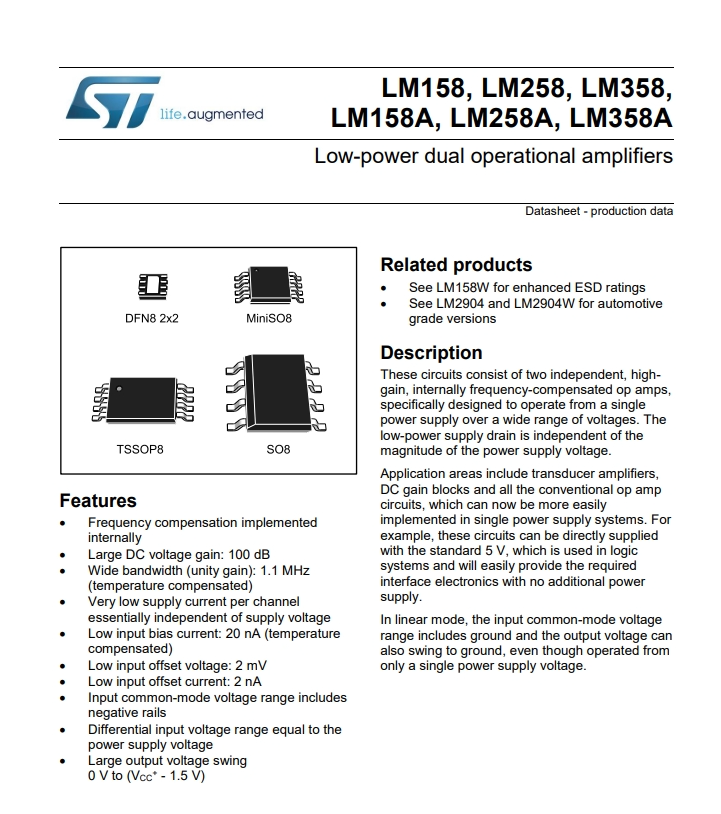

Product datasheet
For more information, please download
​
