Product Details
Applications
Control MOSFET of Sync-Buck Converters
used for Notebook Processor Power
Control MOSFET for Isolated DC-DC
Converters in Networking Systems
Benefits
Very low RDS(ON) at 4.5V VGS
Low Gate Charge
Fully Characterized Avalanche Voltage and
Current
100% Tested for RG
Lead-Free (Qualified up to 260°C Reflow)
RoHS compliant (Halogen Free)
Low Thermal Resistance
Large Source Lead for more reliable Soldering
Product Description
|
ANSC PART# |
ANSC- IRFH7914TR2PBF |
|
Part# |
IRFH7914TR2PBF |
|
Type： |
Electronic components |
|
Manufactor |
Original |
|
DC |
new |
|
Price |
Available for inquiry |
Actual image of the product
|
TYPE |
DESCRIPTION |
|---|---|
|
Category |
Discrete Semiconductor Products Transistors FETs, MOSFETs Single FETs, MOSFETs |
|
Mfr |
Infineon Technologies |
|
Series |
- |
|
Packaging |
Cut Tape (CT) |
|
Part Status |
Obsolete |
|
FET Type |
N-Channel |
|
Technology |
MOSFET (Metal Oxide) |
|
Drain to Source Voltage (Vdss) |
30 V |
|
Current - Continuous Drain (Id) @ 25°C |
15A (Ta), 35A (Tc) |
|
Rds On (Max) @ Id, Vgs |
8.7mOhm @ 14A, 10V |
|
Vgs(th) (Max) @ Id |
2.35V @ 25μA |
|
Gate Charge (Qg) (Max) @ Vgs |
12 nC @ 4.5 V |
|
Input Capacitance (Ciss) (Max) @ Vds |
1160 pF @ 15 V |
|
FET Feature |
- |
|
Mounting Type |
Surface Mount |
|
Supplier Device Package |
8-PQFN (5x6) |
|
Package / Case |
8-PowerTDFN |

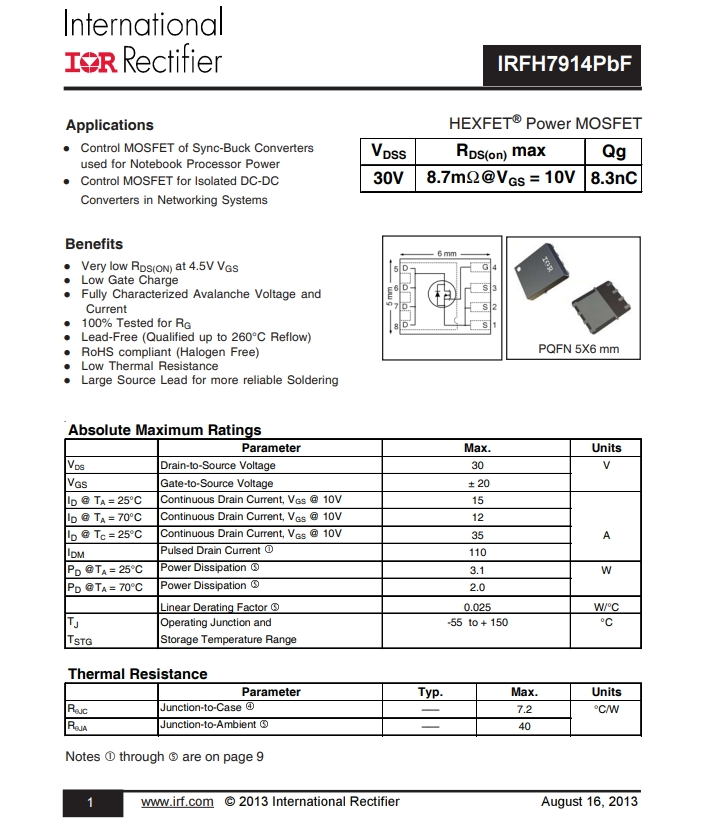

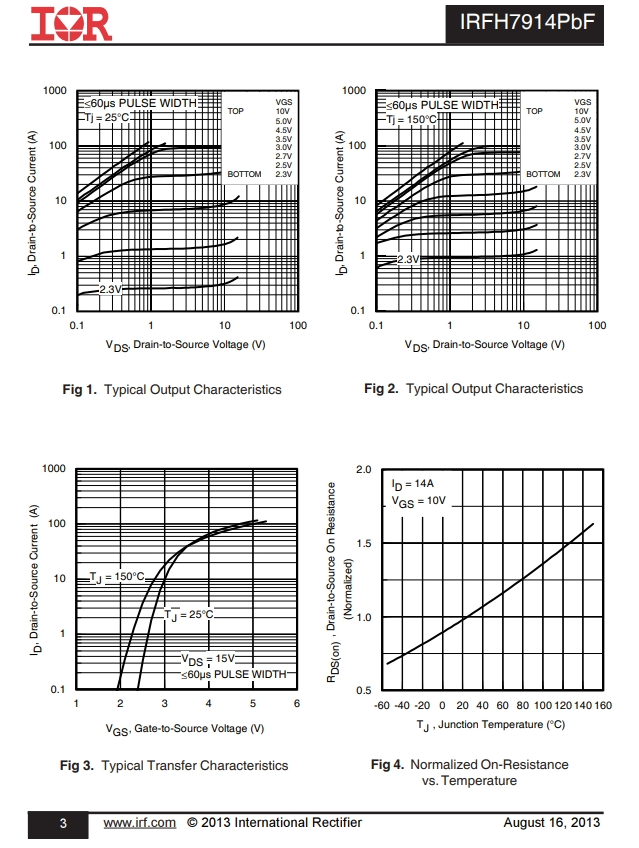

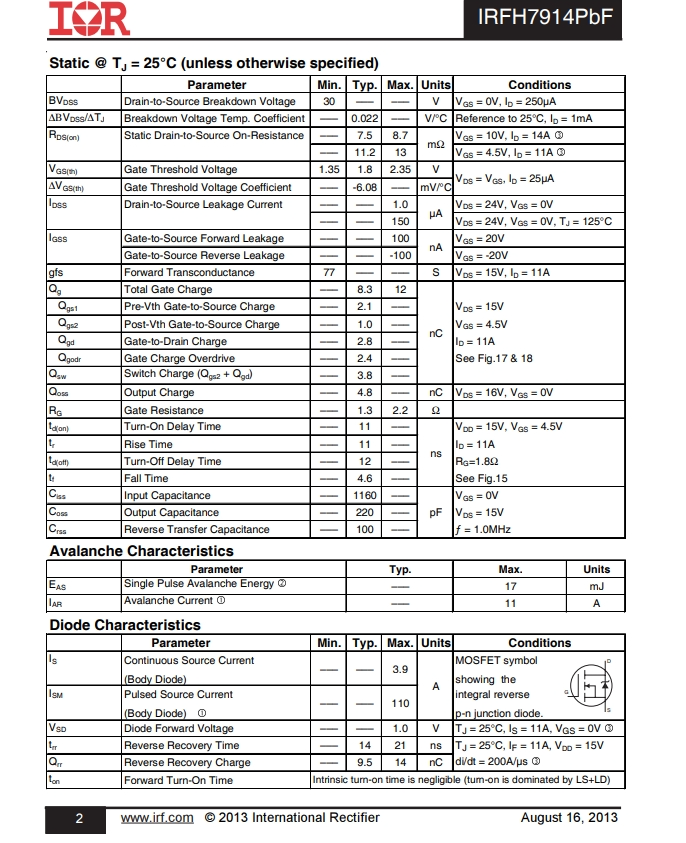

Product datasheet
For more information, please download
