Product Details

DG447DV-T1-E3 Overview

The electronic part can be shipped overseas conveniently because it is packaged in SOT-23-6 Thin, TSOT-23-6. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. There is an analog multiplexer mounted in position Surface Mount. There is 1:1 ratio between the number of multiplexers and demultiplexers. Around -40°C~85°C TA is the extended operating temperature. In total, there are 6 terminations. This electronic part offers high-quality output due to its 1 channels. In the case of a voltage supply of 15V volts, the electrical part can be powered up and run. There are 6 pins injected into the electronic part body. The analog switch ics are built using SPST - NC switching circuits. Search with DG447 if you are looking for analog multiplexer variants. It has an internal resistance of 25Ohm. The functions of 6 pins can be found in the datasheets. In normalcircumstances, users should not exceed 36V volts for the multiplexer. Dual, Single supply type digital switch with a low cost. 7V is the lowest voltage that should be fed to the electronic electronic part. In order to operate this switch device, it would need a current of 16μA. A digital multiplexer may suffer damage if voltage is applied above 30μA. There's no problem with dual supply voltage for this switch device. However, it shouldn't exceed 20V. In the case of dual power supplies, you should connect at least 4.5V. There are SEPARATE OUTPUT outputs on this analog switch ic. There are 1 inputs to be operated. The Drain to Source resistance of this electronic component is 17Ohm.

DG447DV-T1-E3 Features

1 Channels
Switch Circuit: SPST - NC
16μA Supply Current
Drain-to-Source resistance: 17Ohm

DG447DV-T1-E3 Applications

DG447DV-T1-E3 Analog Switches & Multiplexers ICs applications.

• Isolation

• Medical

• Imaging

• Ultrasound

• Audio and video switching

• Automatic test equipment

• Precision data acquisition

• Battery-powered systems

• Sample-and-hold systems

• Communication systems

•


Product Description

Actual image of the product

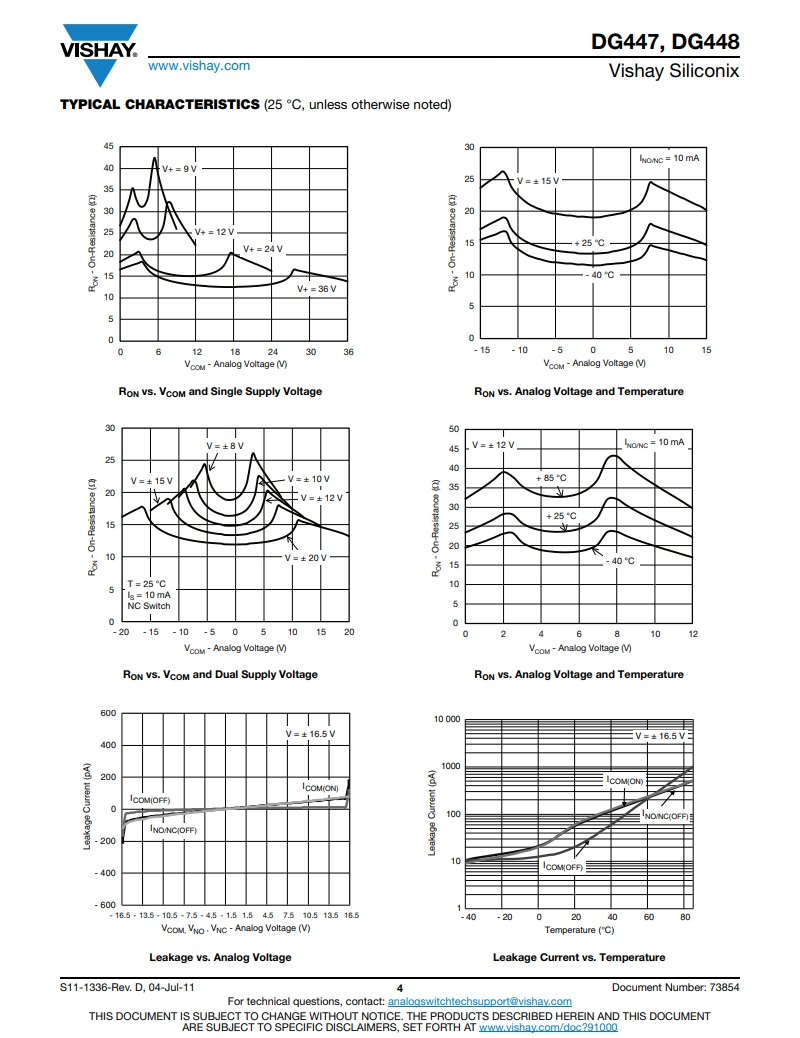

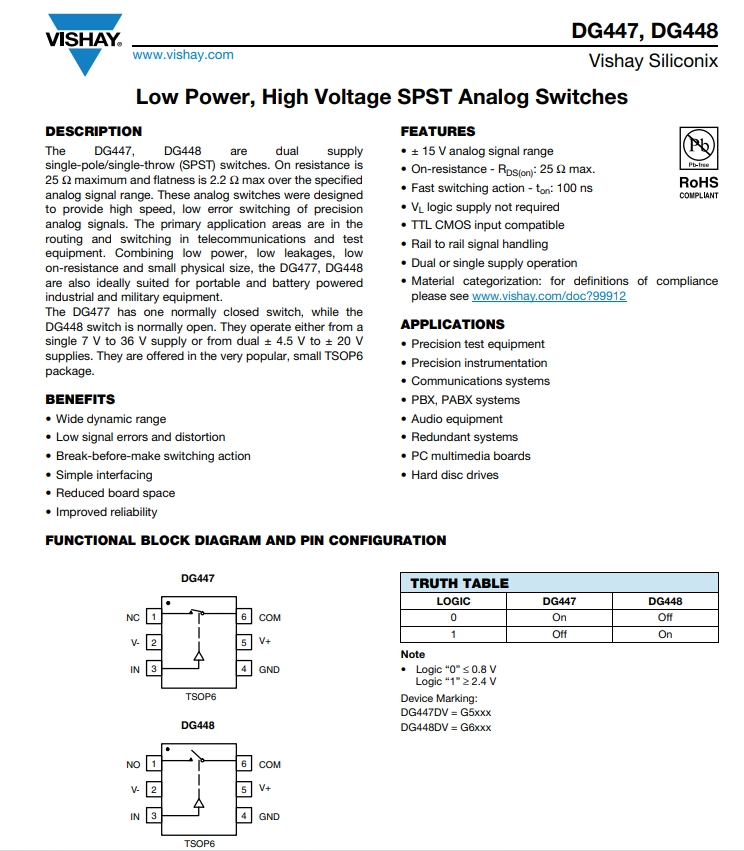

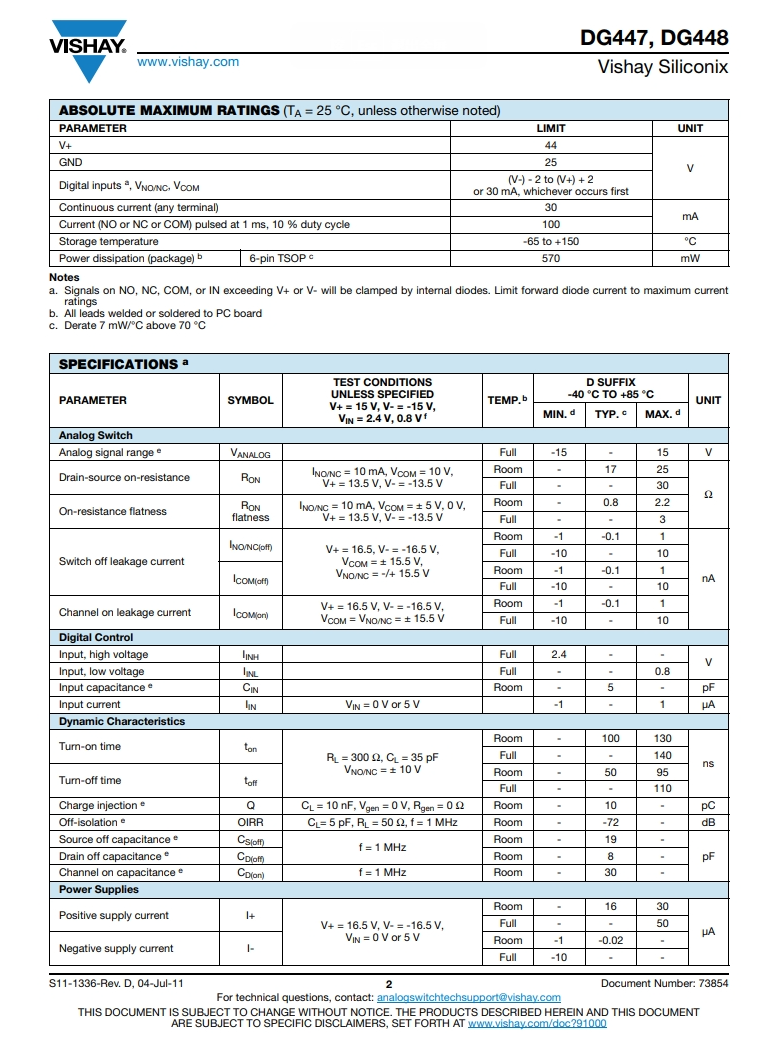

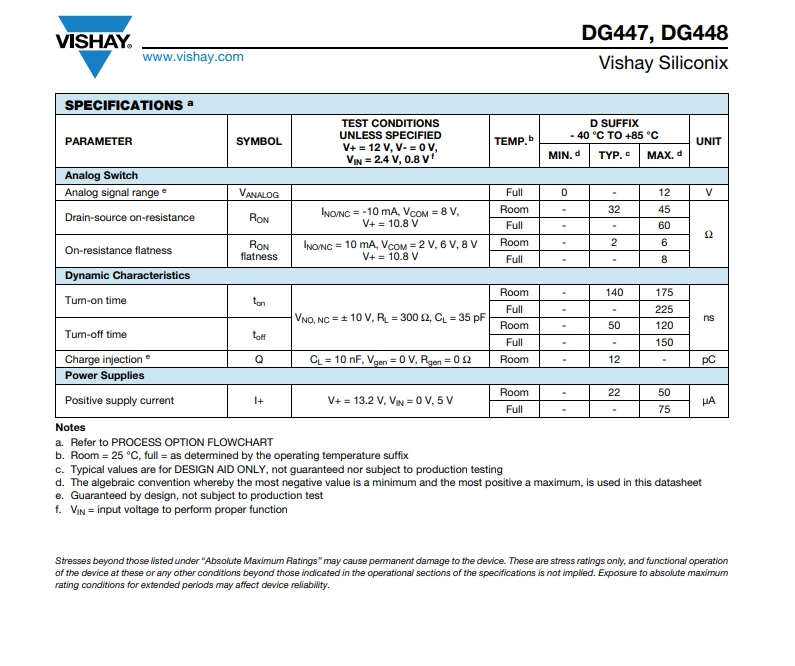

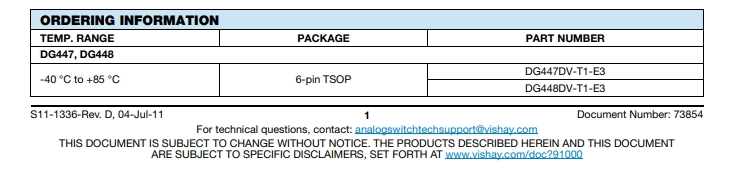

Product datasheet

For more information, please download

​

Payment&Transportation

Official Certificate&Certificate

Standard packaging

Multiple product supply

Welcome to visit our company

Warehouse Real Shot
