Product Details
BQ24266RGER Overview
In the Tape & Reel (TR) package, you will find it.To make it easier for you, it is included with the 24-VFQFN Exposed Pad package.There is a mounting type of Surface Mount for this device.Keeping the temperature at -40°C~85°C TA will ensure reliable performance.POWER SUPPLY SUPPORT CIRCUIT is the analog IC used in this device.The device requires Constant - Programmable of current to charge.This part number BQ24266 can be used to find its related parts.In total, there are 24 terminations.Battery pack voltage is 4.2V.In order for it to work, it requires 24 pins.The number of channels available is 1.A 5V battery should be sufficient.14V supply voltage is not a problem for it.The 5.05V output voltage allows for high efficiency.This device operates with a current output of 3A.Using a supply voltage as low as 4.2V will allow it to function.Aligning it with Surface Mount is required for mounting.In order to ensure optimum supply voltage, the maximum voltage setting is set to 6.65mA.
BQ24266RGER Features
Battery pack voltage of 4.2V
1 channels
24-VFQFN Exposed Pad package
BQ24266RGER Applications
There are a lot of Texas Instruments
BQ24266RGER Battery Chargers ICs applications.
Fleet management
Shop charger
Golf carts
Forklift
Pallet jacks
Personnel carriers
Maintenance shops
Rental fleets
Truck dealers
Floor scrubber
Product Description
ANSC PART# | ANSC- BQ24266RGER |
Part# | BQ24266RGER |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Battery Chargers |
Manufacturer | Texas Instruments |
Series | - |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Obsolete |
Battery Chemistry | Lithium Ion |
Number of Cells | 1 |
Current - Charging | Constant - Programmable |
Programmable Features | - |
Fault Protection | Over Temperature, Over Voltage |
Charge Current - Max | 3A |
Battery Pack Voltage | 4.2V |
Voltage - Supply (Max) | 14V |
Interface | USB |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |

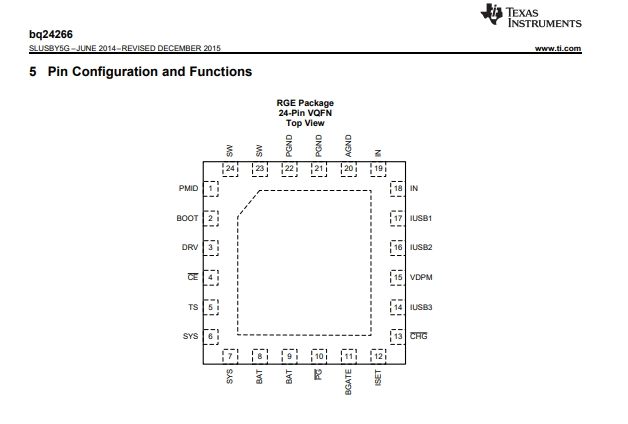

Package / Case | 24-VFQFN Exposed Pad |
Supplier Device Package | 24-VQFN (4x4) |
Base Product Number | BQ24266 |

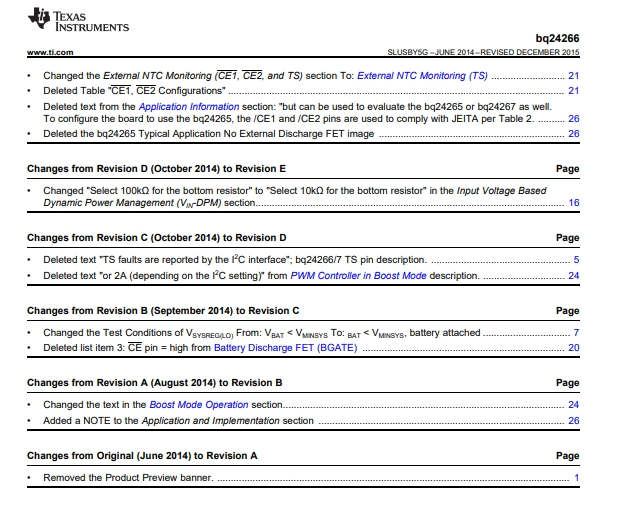

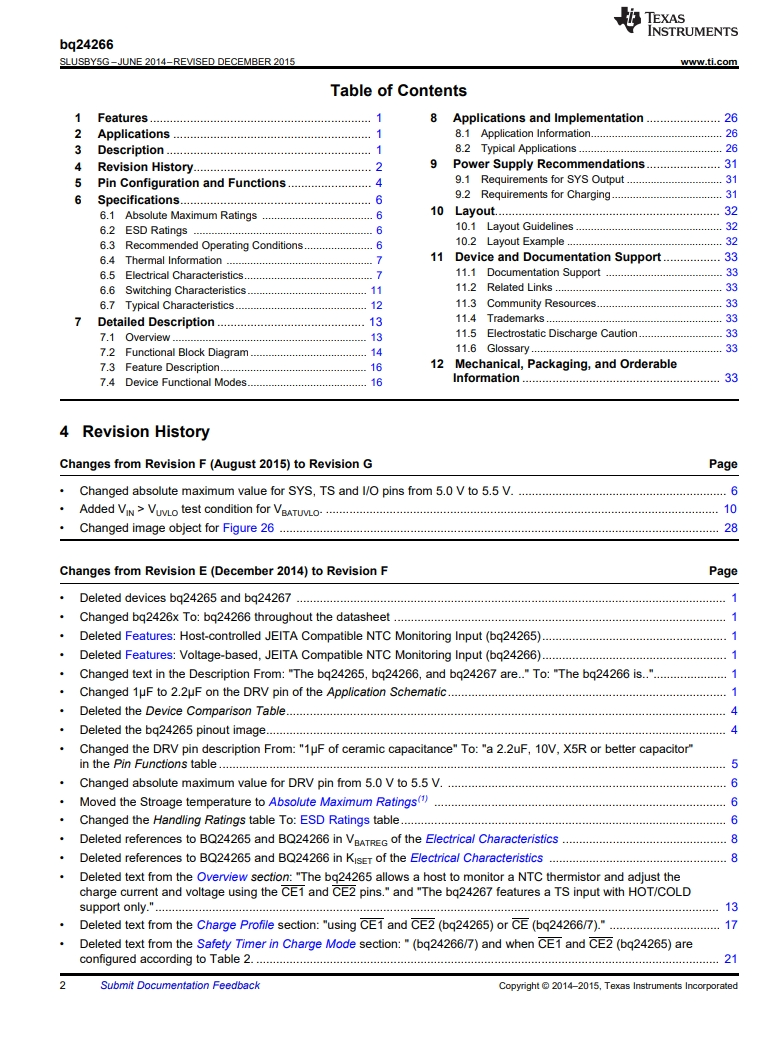

Product datasheet
For more information, please download
​
