Product Details
|
GENERAL DESCRIPTION The ADSP-2106x SHARC?—Super Harvard Architecture Computer—is a 32-bit signal processing microcomputer that offers high levels of DSP performance. The ADSP-2106x builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dual-ported on-chip SRAM and integrated I/O peripherals supported by a dedicated I/O bus. SUMMARY High performance signal processor for communications, graphics and imaging applications Super Harvard Architecture 4 independent buses for dual data fetch, instruction fetch, and nonintrusive I/O 32-bit IEEE floating-point computation units—multiplier, ALU, and shifter Dual-ported on-chip SRAM and integrated I/O peripherals—a complete system-on-a-chip Integrated multiprocessing features 240-lead thermally enhanced MQFP_PQ4 package, 225-ball plastic ball grid array (PBGA), 240-lead hermetic CQFP package RoHS compliant packages |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - ADSP-21062L |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| DSP (Digital Signal Processors) | |
| Manufacturer | Original |
| Series | SHARC? |
| Packaging | Tray |
| Part Status | - |
| Type | Floating Point |
| Interface | Host Interface, Link Port, Serial Port |
| Clock Rate | 40MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 256kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 3.30V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Supplier Device Package | Die |
| Base Product Number | ADSP-21062 |

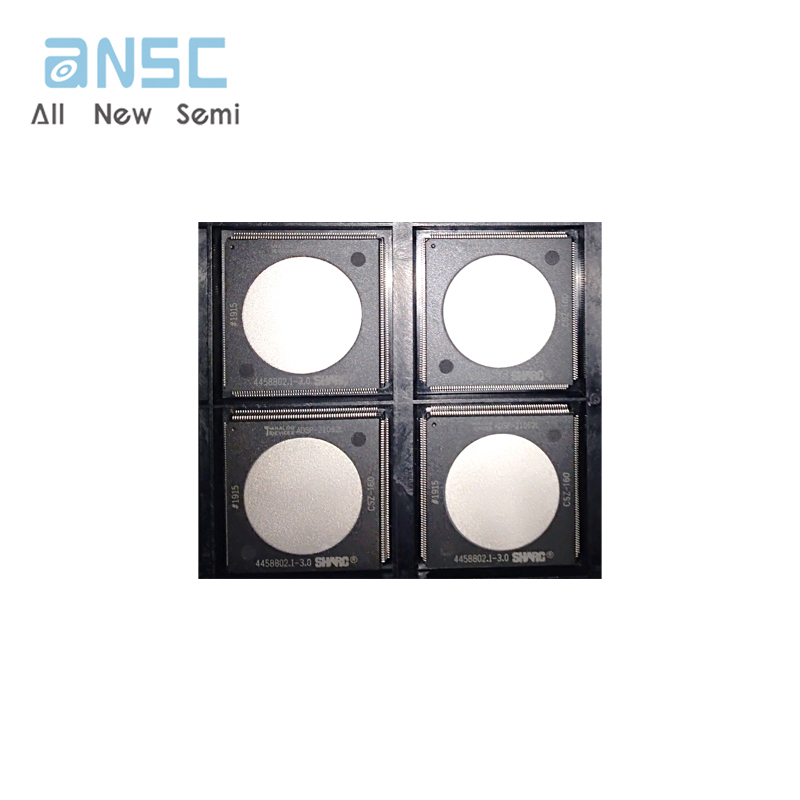

Product Photos
Product datasheet
For more information, please download
