Product Details
|

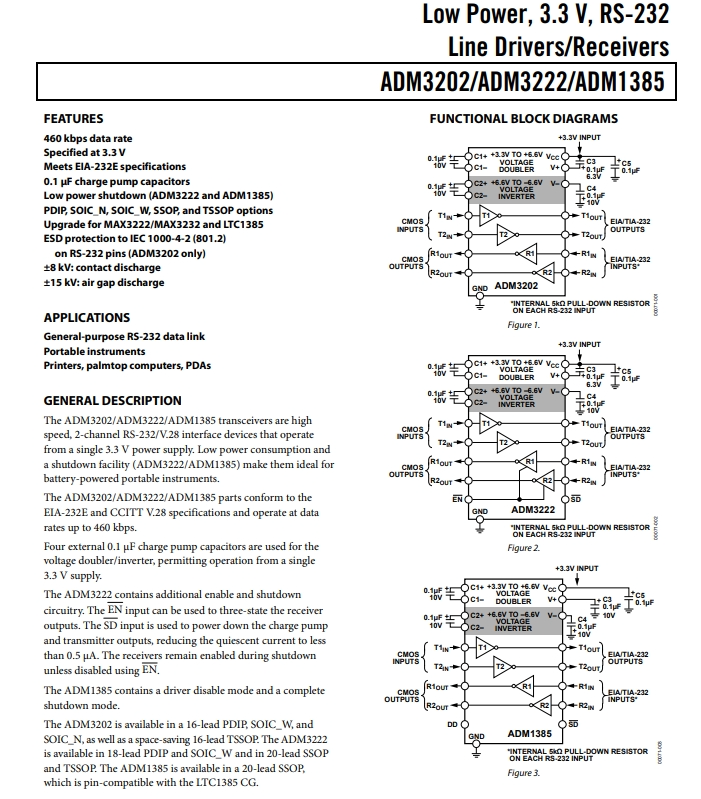

GENERAL DESCRIPTION The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices that operate from a single 3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ADM1385) make them ideal for battery-powered portable instruments. The ADM3202/ADM3222/ADM1385 parts conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 460 kbps. FEATURES 460 kbps data rate Specified at 3.3 V Meets EIA-232E specifications 0.1 μF charge pump capacitors Low power shutdown (ADM3222 and ADM1385) PDIP, SOIC_N, SOIC_W, SSOP, and TSSOP options Upgrade for MAX3222/MAX3232 and LTC1385 ESD protection to IEC 1000-4-2 (801.2) on RS-232 pins (ADM3202 only) ±8 kV: contact discharge ±15 kV: air gap discharge APPLICATIONS General-purpose RS-232 data link Portable instruments Printers, palmtop computers, PDAs |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - ADM3202ARN |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | Transceiver |
| Protocol | RS232 |
| Number of Drivers/Receivers |
2/2 |
| Duplex | Full |
| Receiver Hysteresis | 400 mV |
| Data Rate | 460Kbps |
| Voltage - Supply | 3V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | ADM3202 |

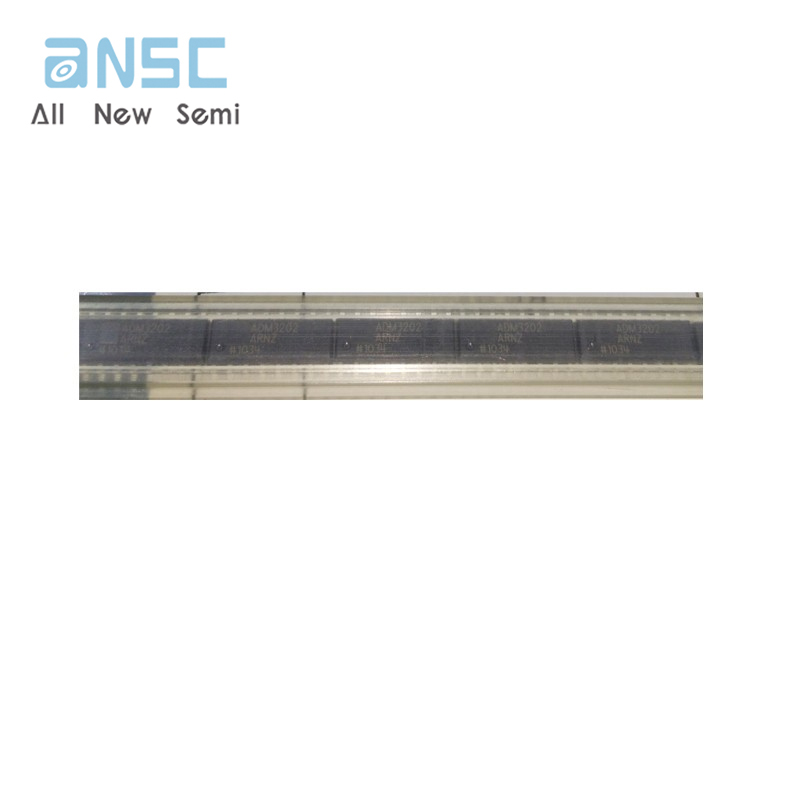

Product Photos

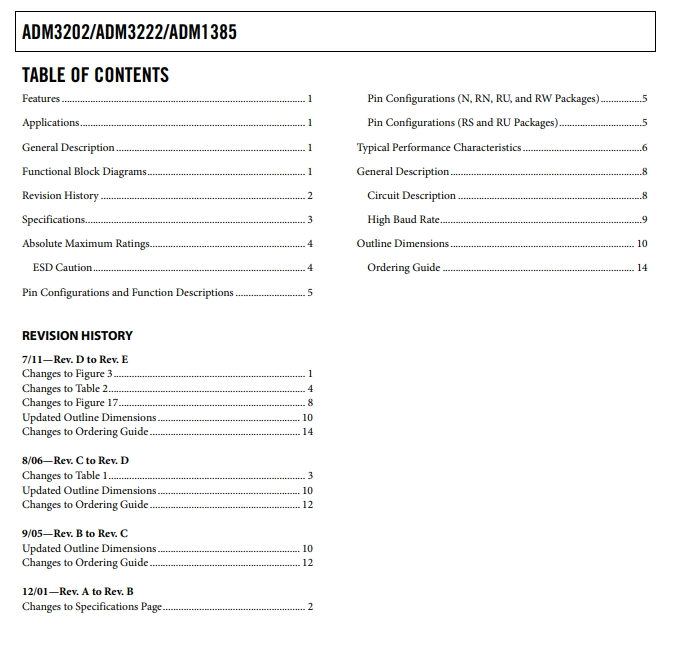

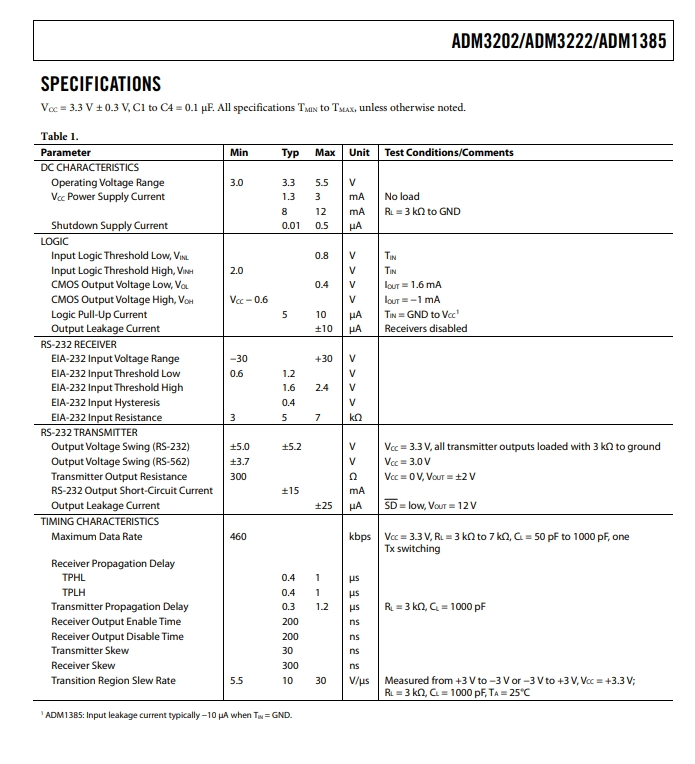

Product datasheet
