Product Details

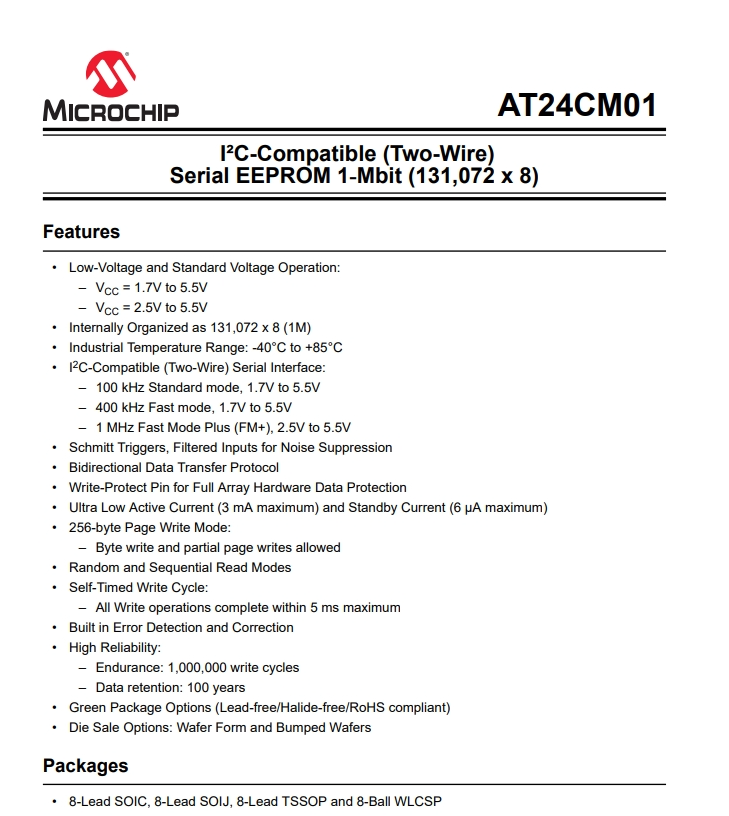

Features
? Low-Voltage and Standard Voltage Operation:
– VCC = 1.7V to 5.5V
– VCC = 2.5V to 5.5V
? Internally Organized as 131,072 x 8 (1M)
? Industrial Temperature Range: -40°C to +85°C
? I2C-Compatible (Two-Wire) Serial Interface:
– 100 kHz Standard mode, 1.7V to 5.5V
– 400 kHz Fast mode, 1.7V to 5.5V
– 1 MHz Fast Mode Plus (FM+), 2.5V to 5.5V
? Schmitt Triggers, Filtered Inputs for Noise Suppression
? Bidirectional Data Transfer Protocol
? Write-Protect Pin for Full Array Hardware Data Protection
? Ultra Low Active Current (3 mA maximum) and Standby Current (6 μA maximum)
? 256-byte Page Write Mode:
– Byte write and partial page writes allowed
? Random and Sequential Read Modes
? Self-Timed Write Cycle:
– All Write operations complete within 5 ms maximum
? Built in Error Detection and Correction
? High Reliability:
– Endurance: 1,000,000 write cycles
– Data retention: 100 years
? Green Package Options (Lead-free/Halide-free/RoHS compliant)
? Die Sale Options: Wafer Form and Bumped Wafers
Product Description
ANSC PART# | ANSC- AT24CM01-SHD-B |
Part# | AT24CM01-SHD-B |
Type： | Integrated Circuits |
Manufactor | Microchip |
DC | new |
Actual image of the product
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Memory Memory |
Mfr | Microchip Technology |
Series | - |
Packaging | Tube |
Part Status | Active |
Programmable | Verified |
Memory Type | Non-Volatile |
Memory Format | EEPROM |
Technology | EEPROM |
Memory Size | 1Mbit |
Memory Organization | 128K x 8 |
Memory Interface | I2C |
Clock Frequency | 1 MHz |
Write Cycle Time - Word, Page | 5ms |
Access Time | 550 ns |
Voltage - Supply | 2.5V ~ 5.5V |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |

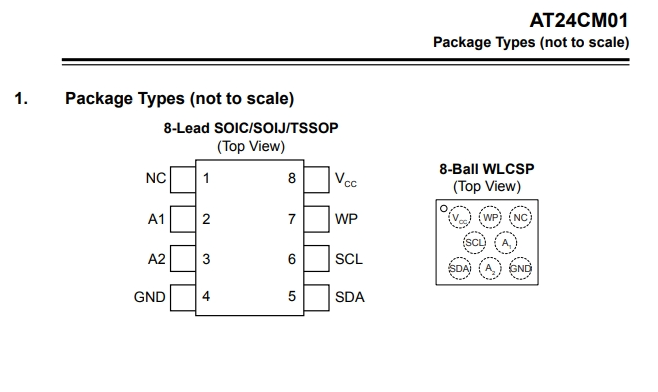

Package / Case | 8-SOIC (0.209", 5.30mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | AT24CM01 |

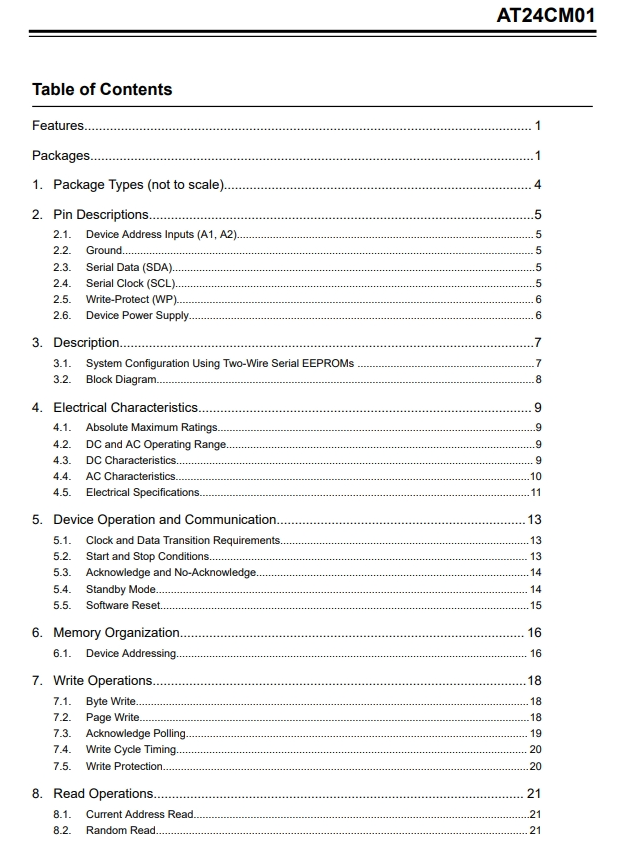

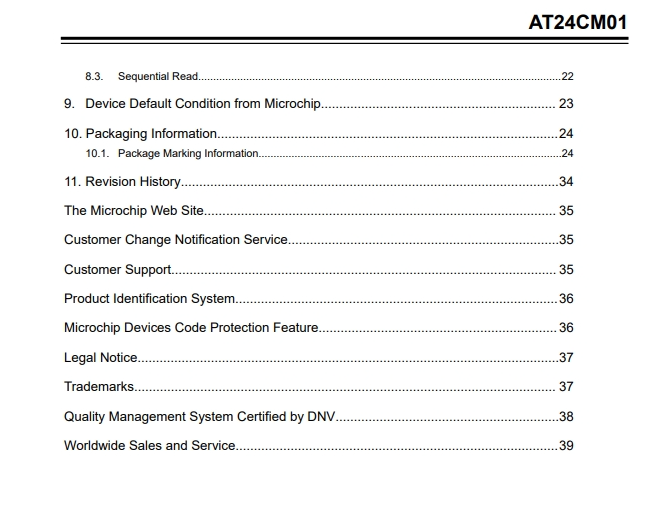

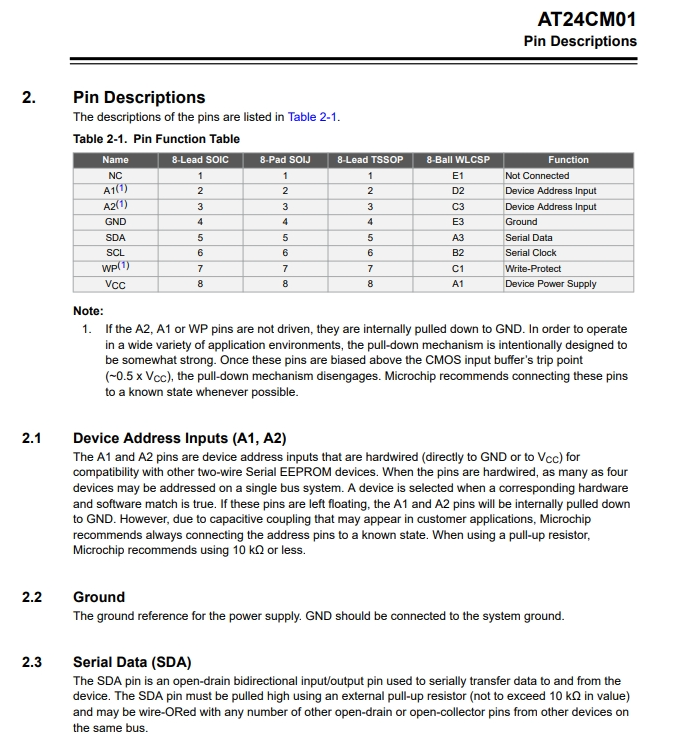

Product datasheet
For more information, please download
