Product Details
|

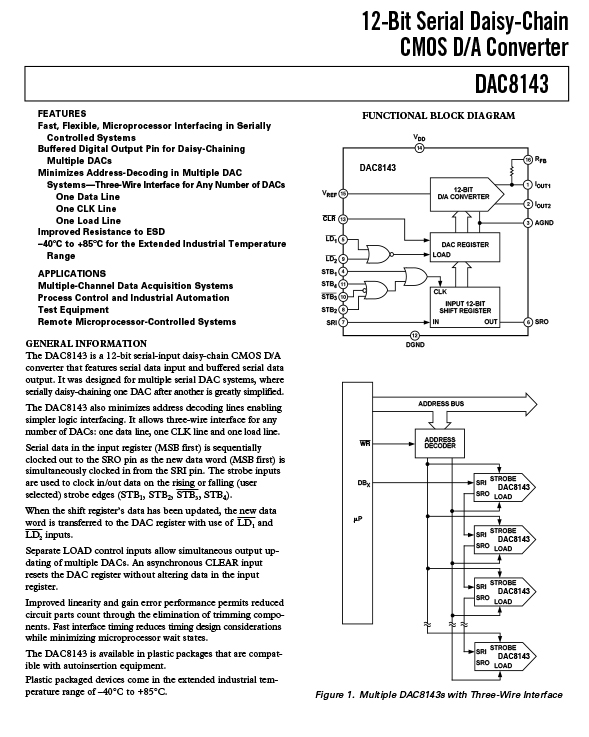

GENERAL INFORMATION The DAC8143 is a 12-bit serial-input daisy-chain CMOS D/A converter that features serial data input and buffered serial data output. It was designed for multiple serial DAC systems, where serially daisy-chaining one DAC after another is greatly simplified. FEATURES Fast, Flexible, Microprocessor Interfacing in Serially Controlled Systems Buffered Digital Output Pin for Daisy-Chaining Multiple DACs Minimizes Address-Decoding in Multiple DAC Systems—Three-Wire Interface for Any Number of DACs One Data Line One CLK Line One Load Line Improved Resistance to ESD –40°C to +85°C for the Extended Industrial Temperature Range APPLICATIONS Multiple-Channel Data Acquisition Systems Process Control and Industrial Automation Test Equipment Remote Microprocessor-Controlled Systems |
Product Description
| Type | Description |
| ANSC PART# | ANSC- DAC8143FS |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Number of Bits | 12 |
| Number of D/A Converters | 1 |
| Settling Time |
1μs |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | DAC8143 |

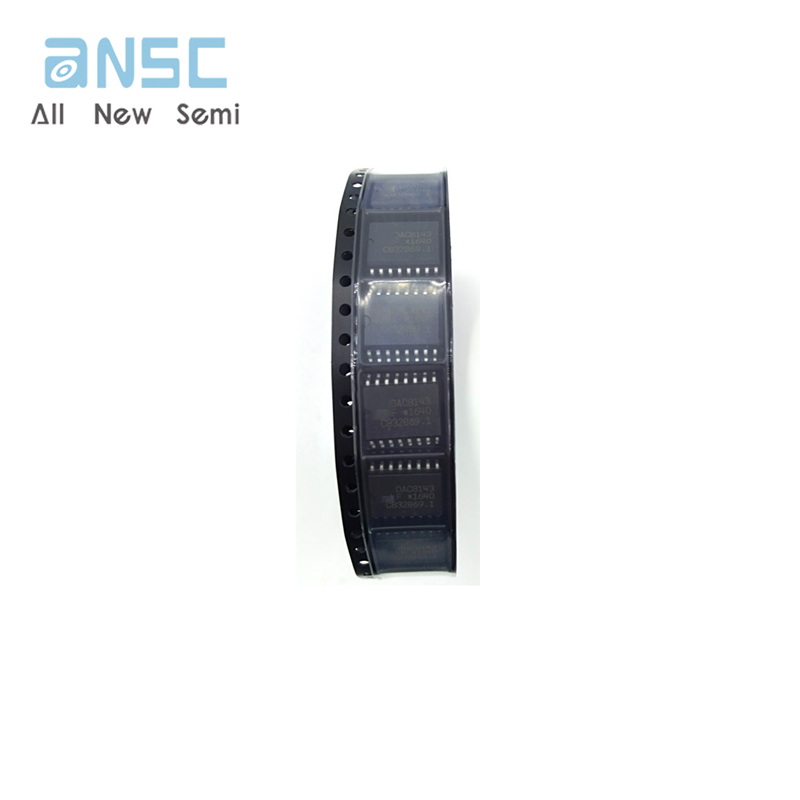

Product Photos
Product datasheet
For more information, please download
