Product Details
|
GENERAL DESCRIPTION The ADV7121/ADV7122 (ADV?) is a video speed, digital-to-analog converter on a single monolithic chip. The part is specifically designed for high resolution color graphics and video systems including high definition television (HDTV). It is also ideal for any application requiring a low cost, high speed DAC function especially in communications. It consists of three, high speed, 10-bit, video D/A converters (RGB), a standard TTL input interface and high impedance, analog output, current sources. FEATURES 80 MHz Pipelined Operation Triple 10-Bit D/A Converters RS-343A/RS-170 Compatible Outputs TTL Compatible Inputs +5 V CMOS Monolithic Construction 40-Pin DIP Package (ADV7121) 44-Pin PLCC Package (ADV7122) 48-Lead TQFP (ADV7122) APPLICATIONS High Definition Television (HDTV) High Resolution Color Graphics CAE/CAD/CAM Applications Image Processing Instrumentation Video Signal Reconstruction Direct Digital Synthesis (DDS) I/Q Modulation SPEED GRADES 80 MHz 50 MHz 30 MHz |
Product Description
| TYPE | DESCRIPTION |

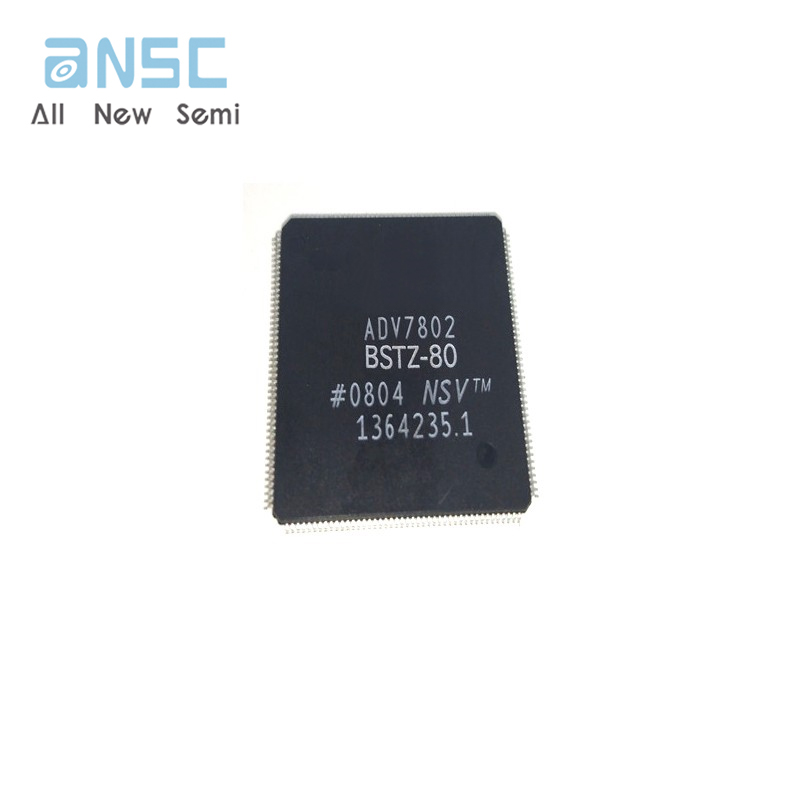

| ANSC PART# | ANSC-ADV7802BSTZ-80 |
| Category | Integrated Circuits (ICs)LinearVideo Processing |
| Manufacturer | Original |
| Series | - |
| Packaging | Tray |
| Part Status | Active |
| Function | Decoder, Digitizer, Filter |
| Applications | Consumer Video |
| Standards | ITU-R BT.656, NTSC, PAL, SECAM |
| Control Interface | I2C |
| Voltage - Supply | 1.75V ~ 1.85V |
| Mounting Type | Surface Mount |
| Package / Case | 176-LQFP |
| Supplier Device Package | 176-LQFP (24x24) |
| Base Product Number | ADV7802 |
Product Photos

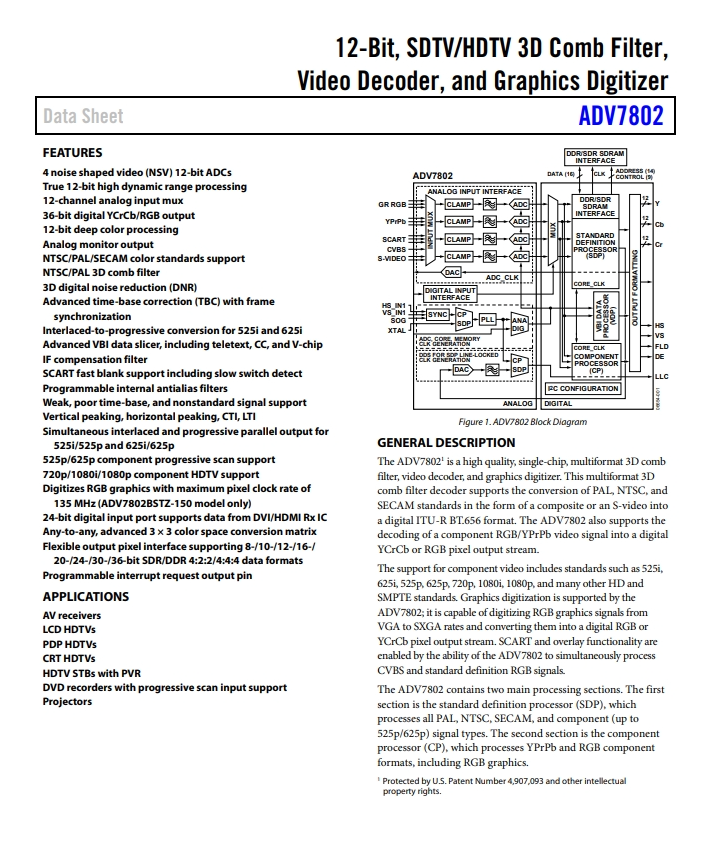

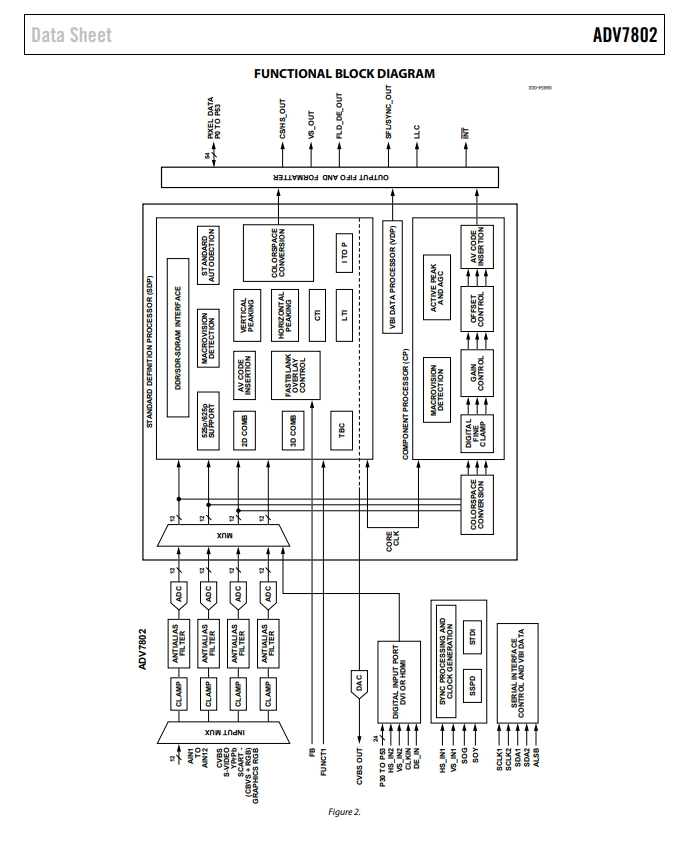

Product datasheet
For more information, please download
