Product Details
DESCRIPTION
? Low Collector Saturation Voltage- : VCE(sat)= 2.0V(Max)@IC= 7A
? Wide Area of Safe Operation
? Complement to Type 2SB1057
APPLICATIONS
? Designed for high power amplifier applications.
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 88PH845-B1-NFB1C000 |
| Ihs Manufacturer | Original |
| Part Package Code | QFN |
| Package Description | 4 X 3 MM, ROHS COMPLIANT, FCQFN-18 |
| Pin Count | 18 |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Max | 15.7 V |
| Input Voltage-Min | 4.5 V |
| Input Voltage-Nom | 12 V |
| JESD-30 Code | R-XQCC-N18 |
| Length | 4 mm |
| Number of Functions | 1 |
| Number of Terminals | 18 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Output Current-Max | 4.5 A |
| Package Body Material | UNSPECIFIED |
| Package Code | VQCCN |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER, VERY THIN PROFILE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Seated Height-Max | 1 mm |
| Surface Mount | YES |
| Switcher Configuration | BUCK |
| Switching Frequency-Max | 500 kHz |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Width | 3 mm |

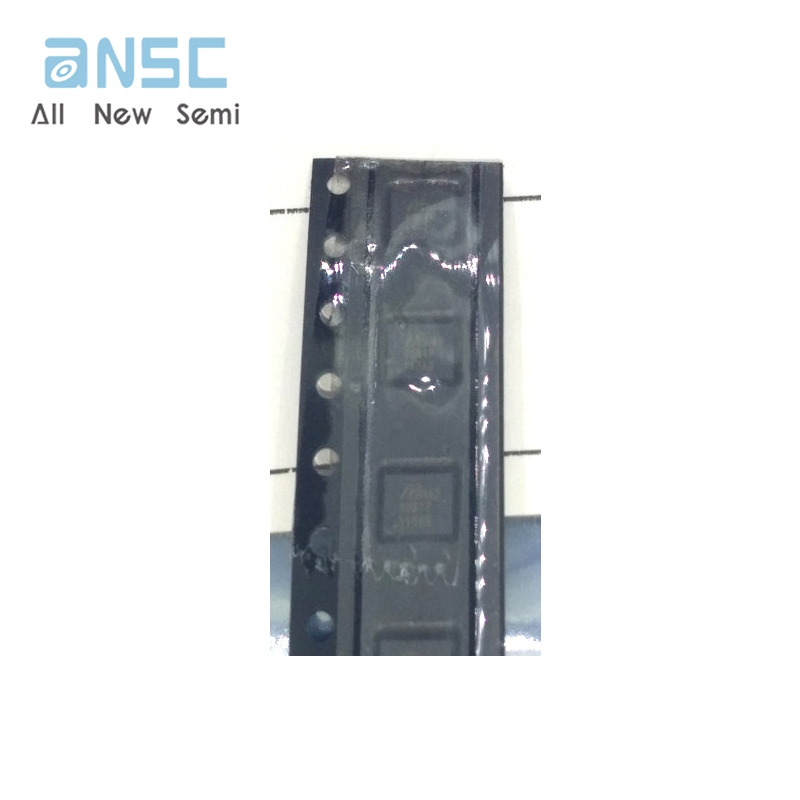

Product Photos
