Product Details
|
88E1512-NNP2 Description The Marvell¨ Alaska¨ family of Gigabit Ethernet (GbE) over copper transceivers are the industry?s lowest power, smallest form factor, highest performance, and highest port density solutions in volume production. The Alaska Ultra single-channel GbE transceivers, consisting of the 88E1011 and 88E1011S devices, are the industry?s first GbE PHYs optimized for the mobile computing market. These devices perform all of the physical layer functions for 100BASE-TX and 1000BASE-T full or half duplex Ethernet on category 5 (CAT 5) twisted pair cable, and 10BASE-T full or half duplex Ethernet on CAT 3, 4 and 5 cable. The Alaska Ultra+ device (88E1011S) offers additional support of 1000BASE-X through an integrated 1.25 GHz Serializer/Deserializer (SERDES). 88E1512-NNP2 Features ? Low power dissipation, just over 1W ? IEEE 802.3 compliant 1000BASE-T, 100BASE-TX and 10BASE-T transceivers ? GMII, TBI, RTBI, RGMII, SGMII interfaces ? Integrated 1.25 GHz SERDES (88E1011S) ? Media Detect feature automatically detects and configures to either copper or fiber media ? Four power management modes ? Auto-MDI/MDIX crossover at all three speeds ? IEEE 1149.1 (JTAG) boundary scan support ? Advanced mixed-signal and DSP techniques ? Advanced baseline wander correction ? Fully integrated digital adaptive equalizers, echo and crosstalk cancellers ? On-chip transmit wave-shaping to reduce EMI ? Advice internal hybrids for 1000BASE-T ? Three package options: 128-pin PQFP, 117-pin TFBGA and 96-pin BCC ? 0.15-micron standard digital CMOS process ? Enables higher integration and reduced cost ? True plug-and-play with 10/100/1000BASE-T tri-speed functionality ? Provide a seamless Ethernet solution ? Supports 1000BASE-X fiber applications ? Complete media flexibility ? Extend battery life; reduce power consumption ? End-to-end wiring tolerance and correction ? Increased reliability for board level testing and manufacturability ? Advanced DSP design ? Provides robust performance over a wide range of operating conditions ? Optimized cable performance ? Better FCC performance ? Lower cost magnetic ? Small package outline, 9mm x 9mm (BCC) ? Advanced process for reduced power and cost to achieve the highest port density 88E1512-NNP2 Applications The Marvell Alaska Ultra GbE transceiver supports advanced power management modes, including Wake-on-LAN, which are critical to client applications such as Gigabit-connected laptop computers. The device also provides complete flexibility in media selection ? either copper or fiber media. The Alaska Ultra PHY?s Media Detect feature automatically senses whether the end-user has inserted a CAT 5 copper or fiber-optic cable, performs Auto-Negotiation and provides seamless plug-and-play configuration. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC-88E1512-NNP2 |
| Part# | 88E1512-NNP2 |
| Type： | Integrated Circuits |
| Manufactor | Original |
| DC | new |
| Part Status | Active |
| Product packaging | QFN |

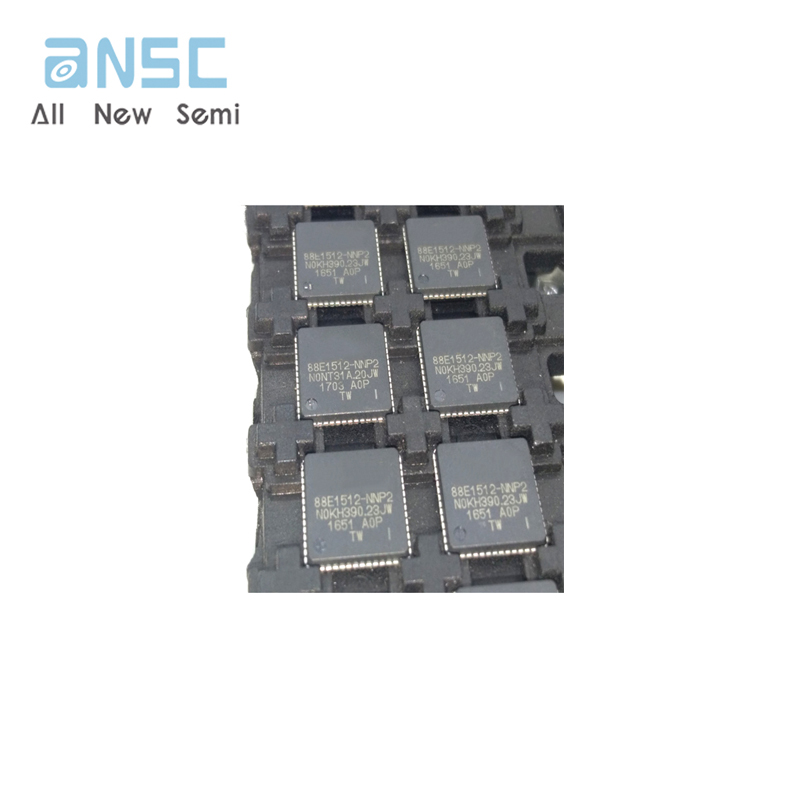

Product Photos
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
