| 1-OF-8 DECODER/DEMULTIPLEXER The MC54/74F138 is a high speed 1-of-8 Decoder/Demultiplexer. This device is ideally suited for high speed bipolar memory chip select address decoding. The multiple input enables allow parallel expansion to a 1-of-24 decoder using just three F138 devices or to a 1-of-32 decoder using four F138s and one inverter. ? Demultiplexing Capability ? Multiple Input Enable for Easy Expansion ? Active Low Mutually Exclusive Outputs ? Input Clamp Diodes Limit High-Speed Termination Effects |
Product Description
| Type# | Description |

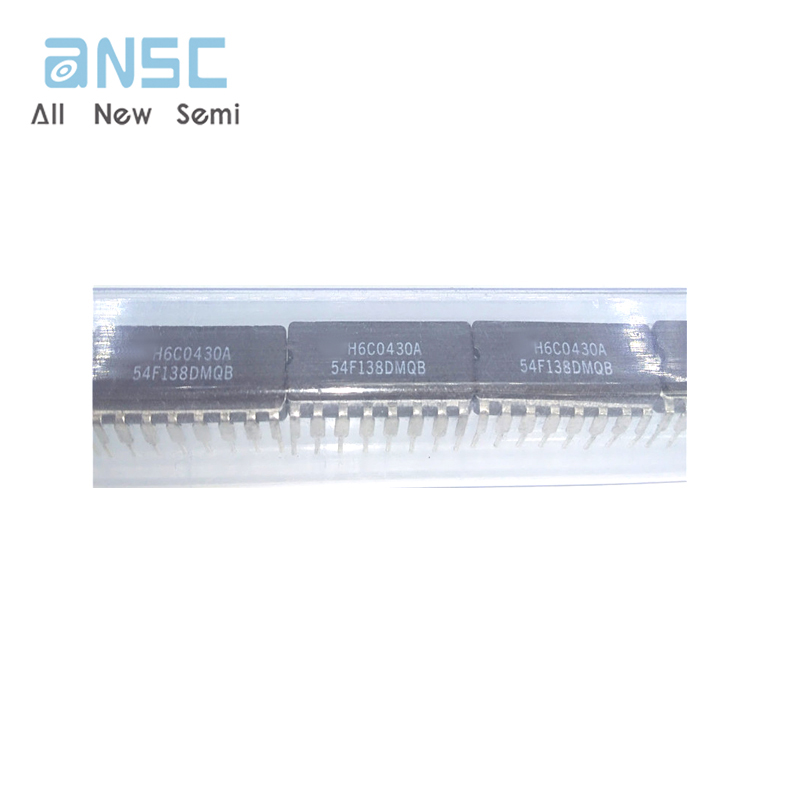

| ANSC PART# | ANSC - 54F138DMQB |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC |
| Part Package Code | DIP |
| Package Description | CERAMIC, DIP-16 |
| Pin Count | 16 |
| Additional Feature | LG_MAX |
| Family | F/FAST |
| Input Conditioning | STANDARD |
| Length | 19.94 mm |
| Logic IC Type | 3-LINE TO 8-LINE DECODER |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Polarity | INVERTED |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Propagation Delay (tpd) | 12 ns |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |
