Product Details
LM7321MFE/NOPB Overview
Op amp is packaged in SC-74A, SOT-753 case. Op amps are General Purpose types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 5. Linear amplifier has a total of 5 pins. Please take in mind that op amp should be run at 5V. Linear amplifier includes 5 pins. Regarding input offset voltage, buffer amplifier rates 700μV voltage. Surface Mount is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~125°C. Operational amplifier can operate supply current at 1.1mA. The voltage gain should stay at 80dB. Instrumentation amplifier has 1 channels on it. On the output type, there are Rail-to-Rail different types of op amps. The operating supply voltage of instrumentation amplifier is rated 16V voltage. It is used TR to pack the op amps.
LM7321MFE/NOPB Features
5 Pins
supply voltage of 5V
80dB voltage gain
Output Type: Rail-to-Rail
LM7321MFE/NOPB Applications
There are a lot of Texas Instruments
LM7321MFE/NOPB Instrumentational OP Amps applications.
Proportional operation circuits
Inverse/same-phase proportional circuit
Addition operation circuits
Subtraction operation circuits
single/dual op amp sum and difference circuits
Integrator circuits
Differentiator circuits
Logarithmic operation circuits
Exponential operation circuits
Multiplication circuits
Product Description
Texas Instruments LM7321MFE/NOPB
OP Amps 5V 65 dB 100mA per Channel Instrumentational OP Amps 5 Pins
1 Channels 100mA per Channel 1.1μA 65 dB Instrumentational OP Amps 16V 2.5V~32V ±1.25V~16V LM7321 5 Pins SC-74A, SOT-753
ANSC PART# | ANSC- LM7321MFE/NOPB |
Part# | LM7321MFE/NOPB |
Type： | Integrated Circuits(ICs) |
Manufactor | Texas Instruments |
DC | new |
Package / Case | SOT-23-5 |
Supplier Device Package | Tape & Reel (TR)Cut Tape (CT) |
Product Attributes
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel廬 | |
| Product Status | Last Time Buy |
| Amplifier Type | General Purpose |
| Number of Circuits | 1 |
| Output Type | Rail-to-Rail |
| Slew Rate | 18V/碌s |
| Gain Bandwidth Product | 20 MHz |
| Current - Input Bias | 1.1 碌A(chǔ) |
| Voltage - Input Offset | 700 碌V |
| Current - Supply | 1.1mA |
| Current - Output / Channel | 100 mA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 32 V |
| Operating Temperature | -40擄C ~ 125擄C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | LM7321 |
Actual image of the product

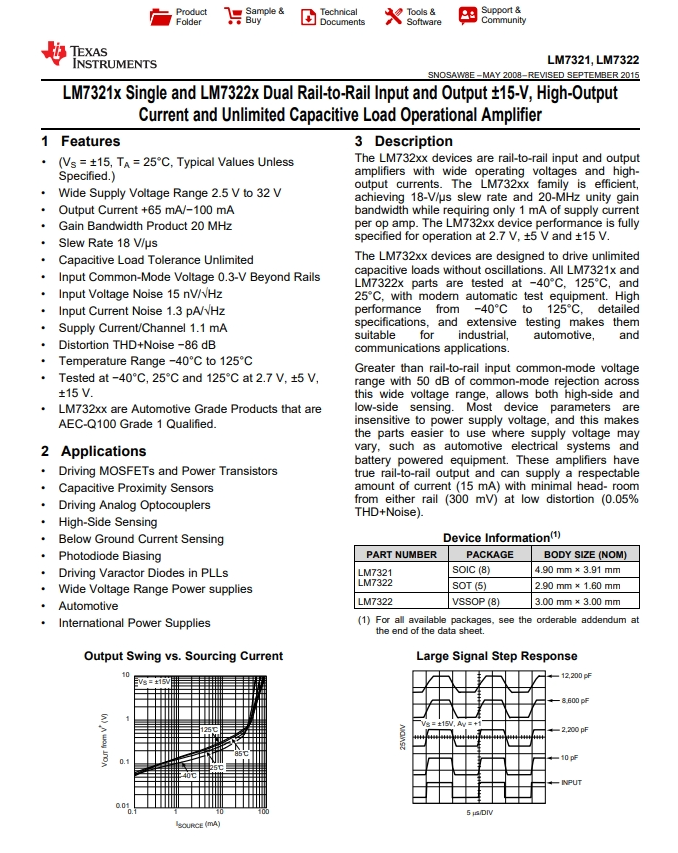

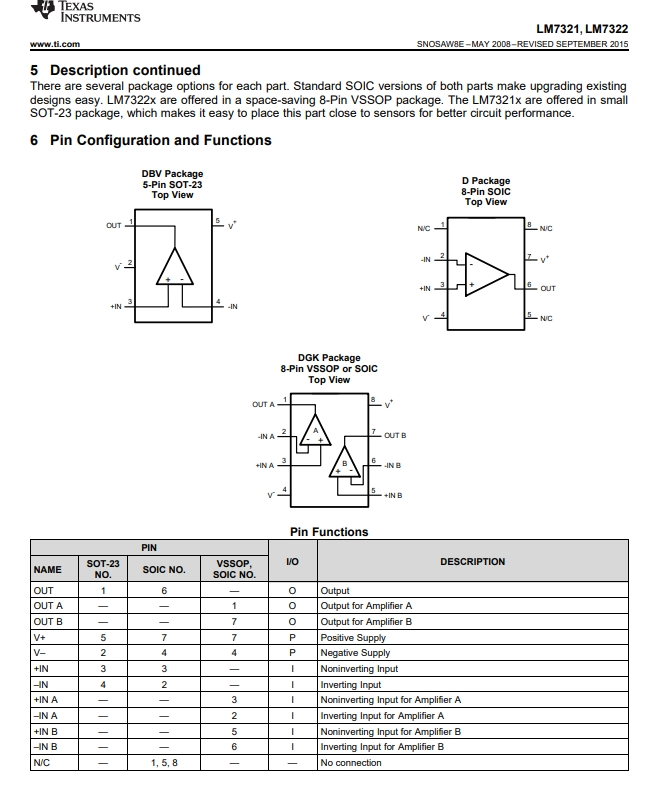

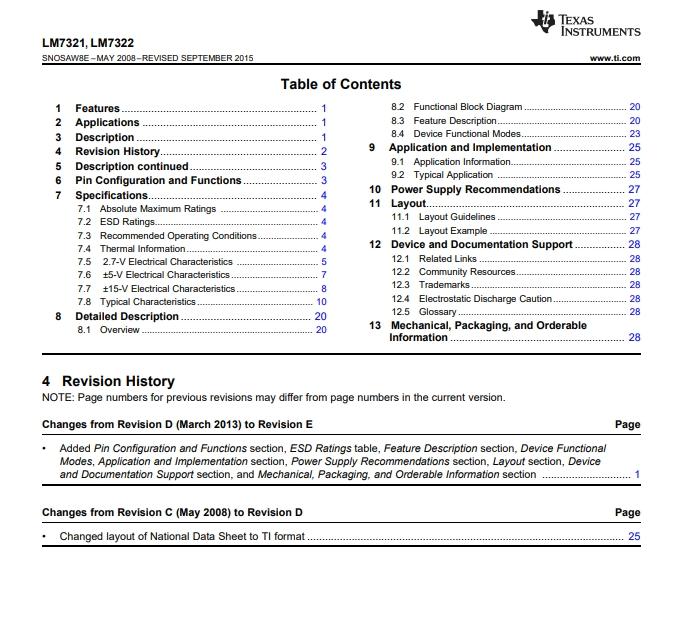

Product datasheet
For more information, please download
