Product Details
|
Description The ADM485 is a differential line transceiver suitable for high speed bidirectional data communication on multipoint bus transmission lines. It is designed for balanced data transmission and complies with both EIA Standards RS-485 and RS-422. The part contains a differential line driver and a differential line receiver. Both the driver and the receiver may be enabled independently. When disabled, the outputs are tristated. Features Meets EIA RS-485 Standard 5 Mb/s Data Rate Single +5 V Supply –7 V to +12 V Bus Common-Mode Range High Speed, Low Power BiCMOS Thermal Shutdown Protection Short Circuit Protection Zero Skew Driver Driver Propagation Delay: 10 ns Receiver Propagation Delay: 25 ns High Z Outputs with Power Off Superior Upgrade for LTC485 Application Low Power RS-485 Systems DTE-DCE Interface Packet Switching Local Area Networks Data Concentration Data Multiplexers Integrated Services Digital Network (ISDN) |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- ADM485JRZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Transceiver |
| Protocol | RS422, RS485 |
| Number of Drivers/Receivers |
1/1 |
| Duplex | Half |
| Receiver Hysteresis | 70 mV |
| Data Rate | 5Mbps |
| Voltage - Supply | 4.75V ~ 5.25V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | ADM485 |

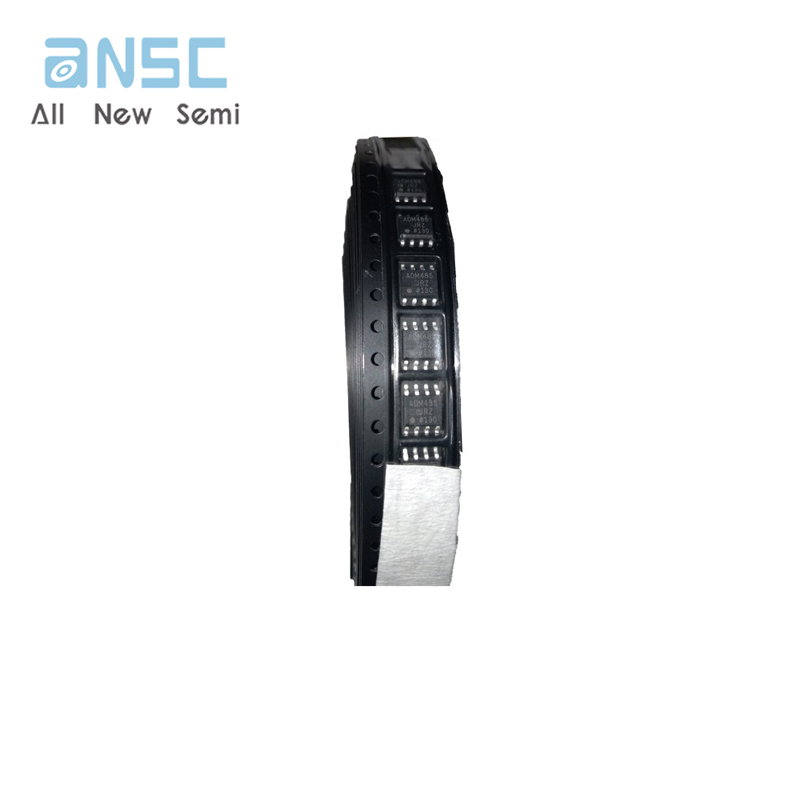

Product Photos

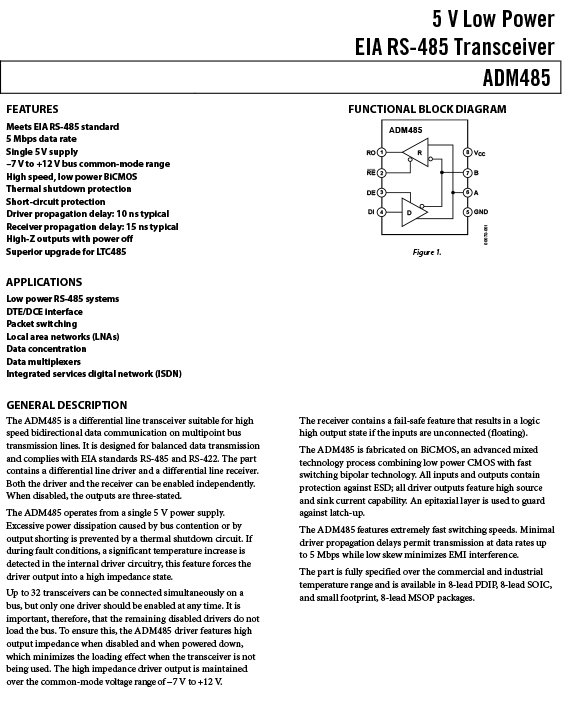

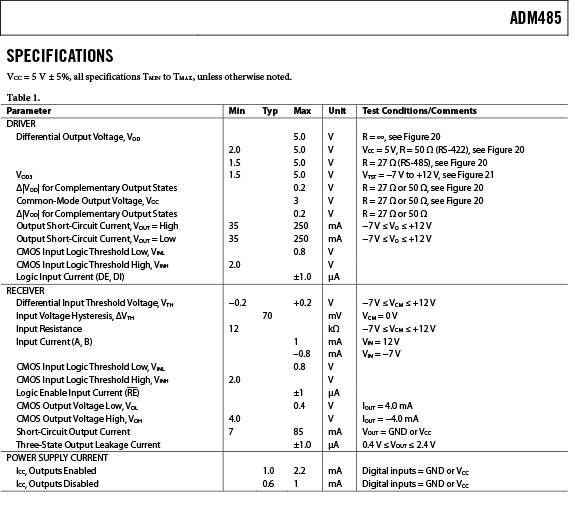

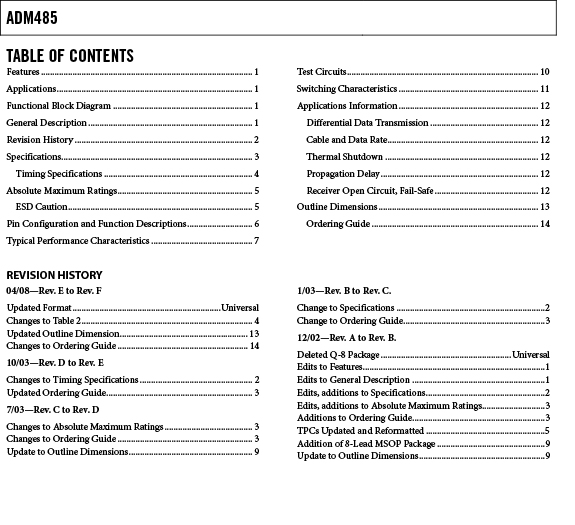

Product datasheet
For more information, please download
