Product Details
|
Product Overview As part of the Tube package, PoE controller is embedded.Packaged according to 38-WFQFN Exposed Pad.PoE controllers of this type are called Controller (PSE).Channel number is growing strong/weak: 4.Ensure the reliability of the PoE by operating it at -40°C~85°C.Electrical Po E controller 45V~57V has a 45V~57V supply voltage.A part number's Po E controllers of LTC4266 can be determined by its base number.A 38 termination involves terminating a transmission line with a power over ethernet controller whose characteristic impedance matches the line's.There is a maximum power of 38.7W Watts in this electrical ethernet over power controller.38 pins are equipped with it.The board has 38 pins.It reaches 5mA when it receives the maximal current (Isup).1.1mA requires a supply current to function correctly.There is a 1MHz frequency associated with this electrical PoE ethernet controller. Product Features Tube package 38 pin count 38 pins Product Applications LTC4266AIUHF-1#PBF Power Over Ethernet (PoE) Controllers applications. Security Cameras Internet Appliances POS Terminals IEEE 802.3af Compliant PoE Powered Devices Non-Compliant, Application Specific Devices Higher Power Ethernet Powered Devices IP Phone Power Management Wireless Access Points Security Cameras Power over Ethernet |
Product Description
| Type | Description |
| ANSC PART# | ANSC - LTC4266AIUHF-1#PBF |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Over Ethernet (PoE) Controllers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Type | Controller (PSE) |
| Number of Channels | 4 |
| Power - Max | 38.7 W |
| Internal Switch(s) | No |
| Auxiliary Sense | No |
| Standards | 802.3at (PoE+), 802.3af (PoE), LTPoE++ |
| Voltage - Supply | 45V ~ 57V |
| Current - Supply | 2.4mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 38-WFQFN Exposed Pad |
| Supplier Device Package | 38-QFN (5x7) |
| Base Product Number | LTC4266 |

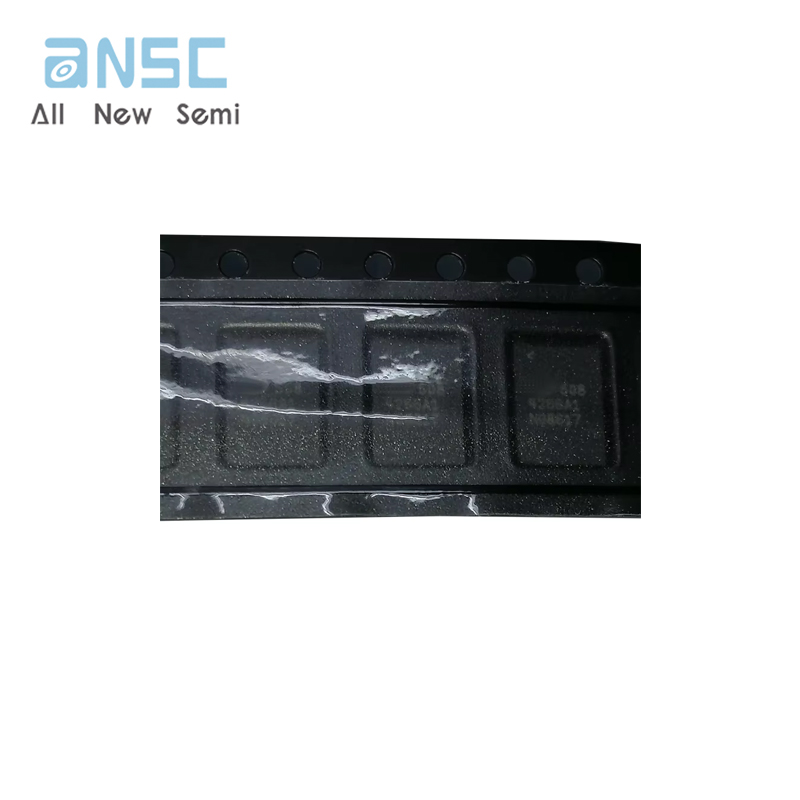

Product Photos

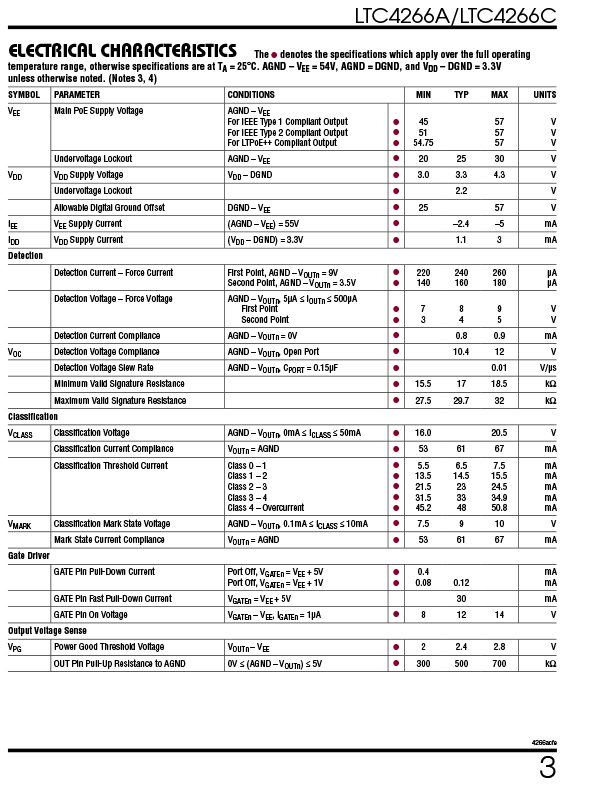

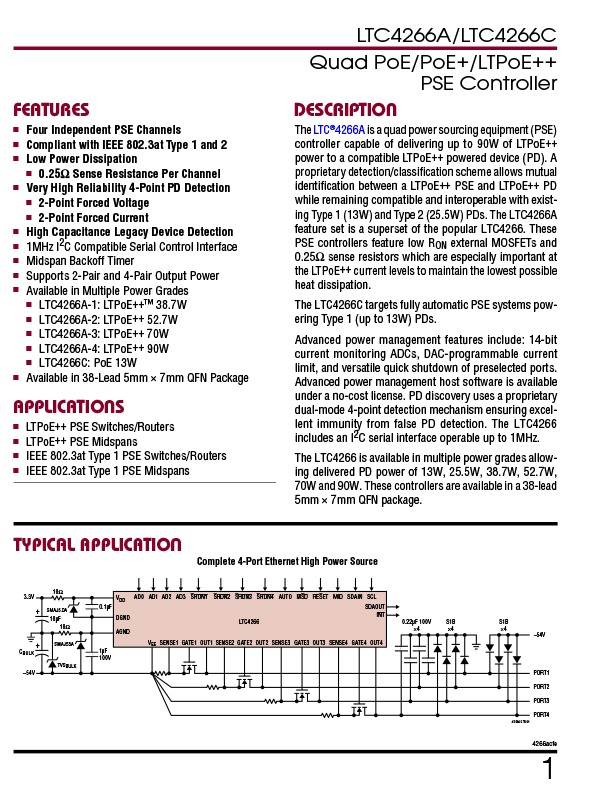

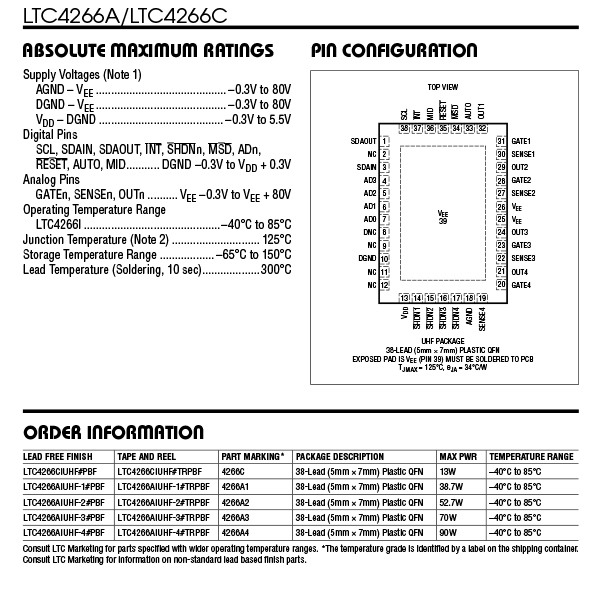

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
