Product Details
GENERAL DESCRIPTION
The ADG621/ADG622/ADG623 are monolithic, CMOS, single-pole, single-throw (SPST) switches. Each switch of the ADG621/ADG622/ADG623 conducts equally well in both directions when on.
FEATURES
5.5 Ω (maximum) on resistance
0.9 Ω (maximum) on resistance flatness
2.7 V to 5.5 V single supply
±2.7 V to ±5.5 V dual supply
Rail-to-rail operation
10-lead MSOP package
Typical power consumption (<0.01 μW)
TTL-/CMOS-compatible inputs
APPLICATIONS
Automatic test equipment
Power routing
Communication systems
Data acquisition systems
Sample-and-hold systems
Avionics
Relay replacements
Battery-powered systems
Product Description
| Type | Description |
| ANSC PART# | ANSC - ADG623BRMZ |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Switch Circuit | SPST - NO/NC |
| Multiplexer/Demultiplexer Circuit | 1:01 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 250mOhm |
| Voltage - Supply, Single (V+) | 2.7V ~ 5.5V |
| Voltage - Supply, Dual (V±) | ±2.7V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 120ns, 70ns |
| -3db Bandwidth | 230MHz |
| Charge Injection | 110pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 20pF |
| Current - Leakage (IS(off)) (Max) | 250pA |
| Crosstalk | -90dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | ADG623 |

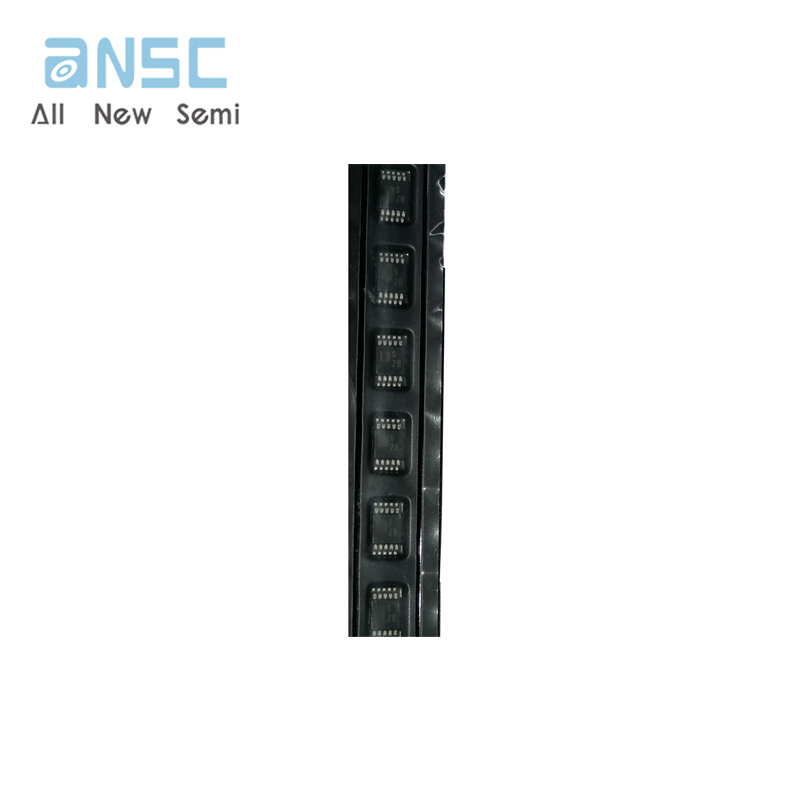

Product Photos
