Product Details
QUAD 2-INPUT AND GATE
FAST? SCHOTTKY TTL
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 54F08DMQB |
| Ihs Manufacturer | TI |
| Part Package | DIP |
| Package Description | CERAMIC, DIP-14 |
| Pin Count | 14 |
| Additional Feature | LG-MAX |
| Family | F/FAST |
| JESD-30 Code | R-GDIP-T14 |
| Length | 19.939 mm |
| Logic IC Type | AND GATE |
| Number of Functions | 4 |
| Number of Inputs | 2 |
| Number of Terminals | 14 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Propagation Delay (tpd) | 7.5 ns |
| Seated Height-Max | 5.08 mm |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Nom (Vsup) | 5 V |
| Surface Mount | NO |
| Technology | TTL |
| Temperature Grade | MILITARY |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 7.62 mm |

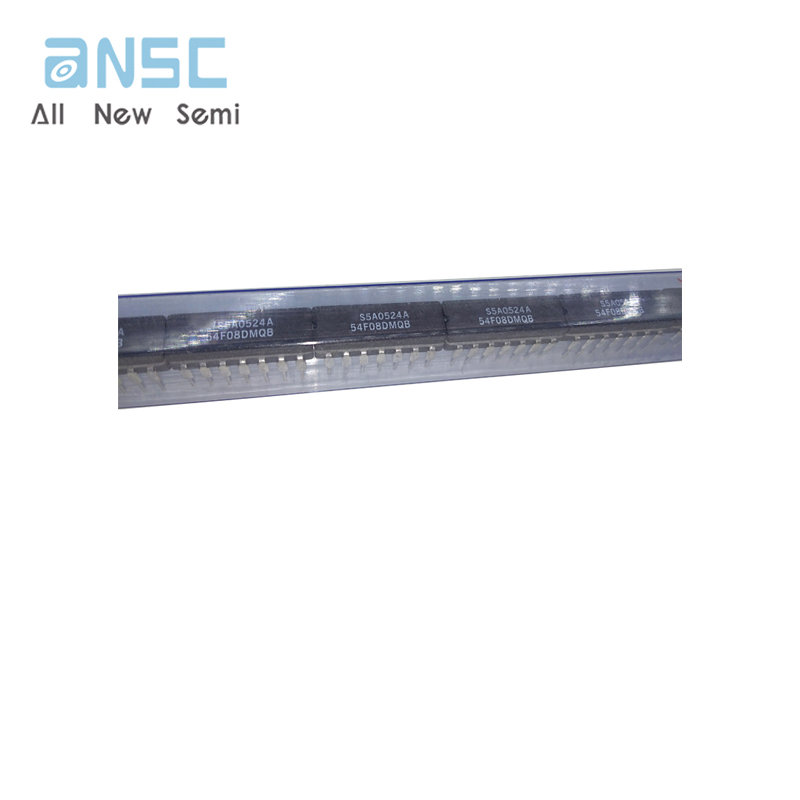

Product Photos
