Product Description

Type#	Description
ANSC PART#	ANSC- SRM2B256SLMT10
Ihs Manufacturer	Original
Package Description	SOP, SOP28,.5
Access Time-Max	100 ns
Additional Feature	AT SUPPLY VOLTAGE 3V, ACCESS TIME=180NANO SECOND
I/O Type	COMMON
Length	17.8 mm
Memory Density	262144 bit
Memory IC Type	STANDARD SRAM
Memory Width	8
Number of Functions	1
Number of Ports	1
Number of Terminals	28
Number of Words	32768 words
Number of Words Code	32000
Operating Mode	ASYNCHRONOUS
Operating Temperature-Max	85 °C
Operating Temperature-Min	-40 °C
Organization	32KX8
Output Characteristics	3-STATE
Package Body Material	PLASTIC/EPOXY
Package Code	SOP
Package Equivalence Code	SOP28,.5
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE
Parallel/Serial	PARALLEL
Qualification Status	Not Qualified
Seated Height-Max	2.9 mm
Standby Current-Max	0.00002 A
Standby Voltage-Min	2 V
Supply Current-Max	0.045 mA
Supply Voltage-Max (Vsup)	5.5 V
Supply Voltage-Min (Vsup)	4.5 V
Supply Voltage-Nom (Vsup)	5 V
Surface Mount	YES
Technology	CMOS
Temperature Grade	INDUSTRIAL
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	8.4 mm

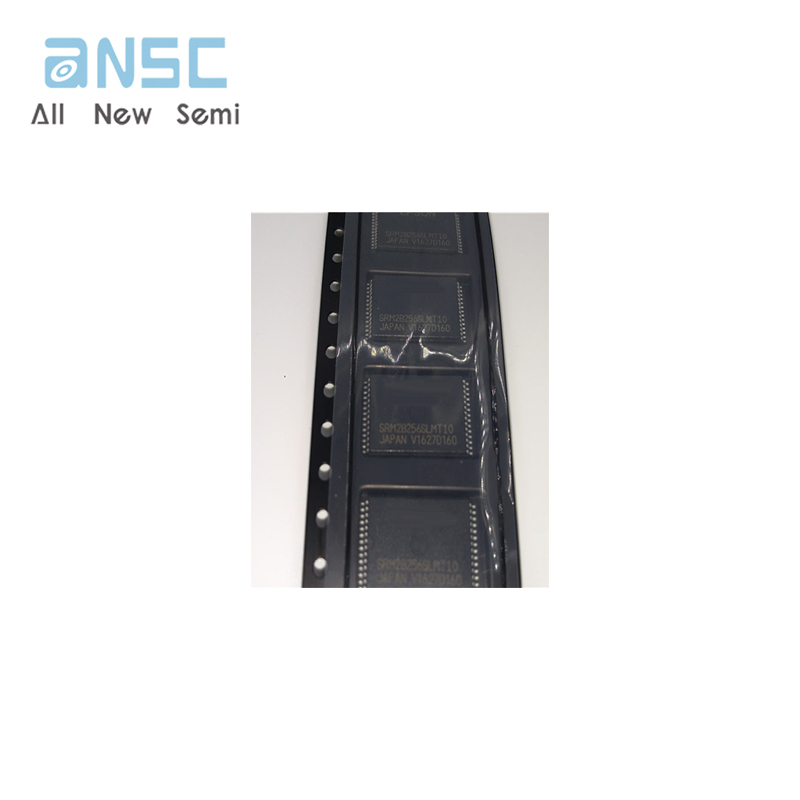

Product Photos

SRM2B256SLMT10

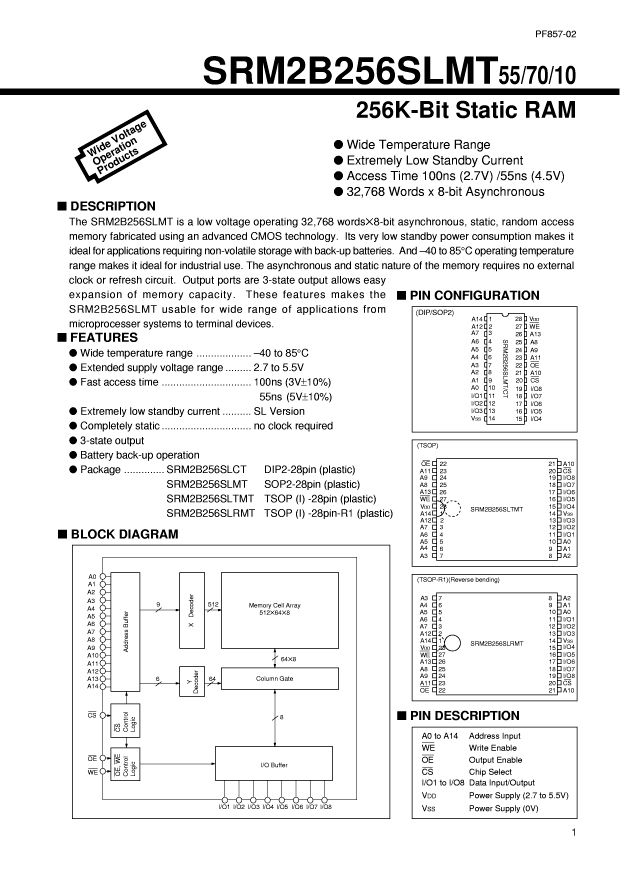

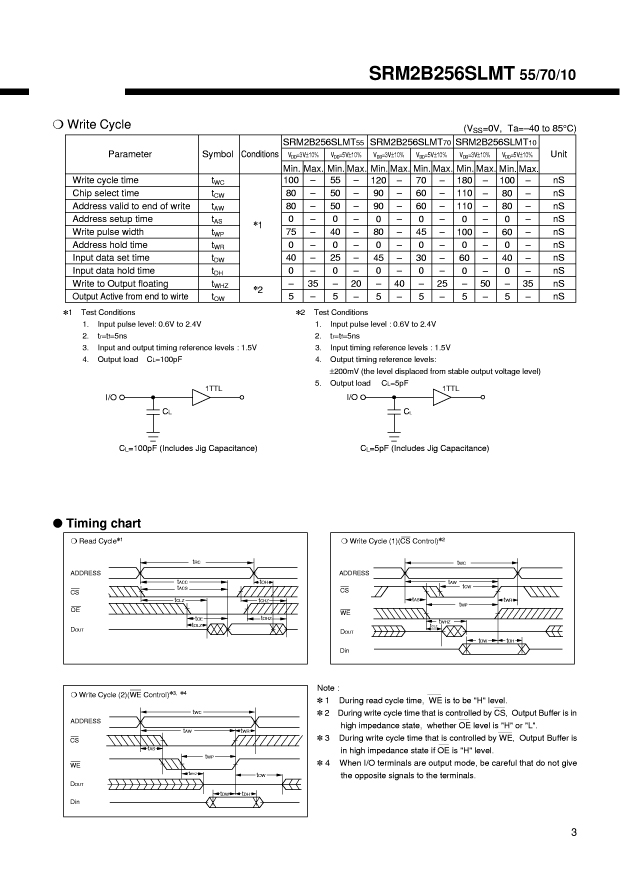

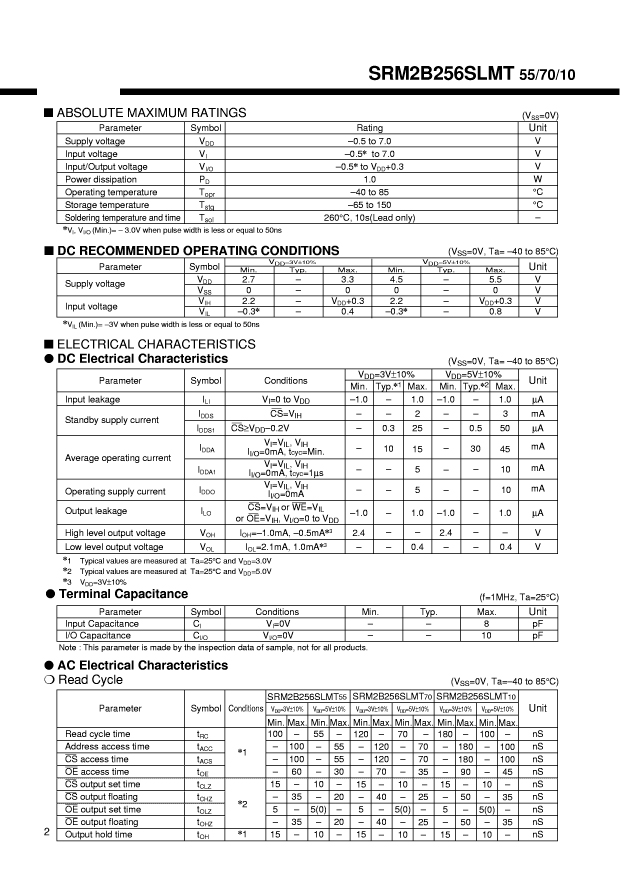

For more information, please download

SRM2B256SLMT10-1

SRM2B256SLMT10-2

SRM2B256SLMT10-3
