Product Details
LM22670TJ-ADJ/NOPB Overview
Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. A voltage regulator consists of 7 terminations. There is a SWITCHING REGULATOR type analog IC in this voltage regulator 12v that is used to convey analog signals. There is a TO-263-7 Thin package available for this voltage regulator, as DC DC switching regulator is space-saving. 1 outputs have been configured in the voltage regulator 12v. On its output pins, this adjusting voltage regulator generates Adjustable output. Switching regulators like this one can be mounted on the Surface Mount mounting system. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~125°C TJ. In this voltage regulator 12v, the switching frequency is 500kHz. Regulator 4.5V can operate with dc to dc voltage regulator's minimum input voltage 4.5V. A regulator with this 260 peak reflow temperature is essentially indestructible. For operation, switching regulator requires a nominal input voltage of 12V. LM22670 is a family of voltage regulators that belong to the DC/DC industry. Voltage regulator is capable of giving voltage at 1.285V volts. In order to operate voltage regulator, 7 pins are required. This voltage regulator 12v should be configured with an output voltage that is at least 1.285V. For switching regulator maximum operation, dc to dc voltage regulator delivers 3A A. The maximal output voltage of 37V allows DC DC switching regulator to be operated easily. Using this voltage regulator 12v, you will be able to get the maximum output voltage of 37V. A switching DC-DC regulator, it is a member of the SIMPLE SWITCHER? family of electronic voltage regulator 12vs. With a supply voltage of 42V, this harley voltage regulator works. Without external influences, harley voltage regulator consumes 3.4mAA of quiescent current. The dc to dc voltage regulator's minimum supply voltage of 4.5V volts ensures reliable performance.
LM22670TJ-ADJ/NOPB Features
1 outputs
Peak reflow temperature (Cel) of 260
7 pins
Operating supply voltage of 42V
LM22670TJ-ADJ/NOPB Applications
There are a lot of Texas Instruments
LM22670TJ-ADJ/NOPB Voltage Regulators applications.
Network technology
Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Product Description
ANSC PART# | ANSC- LM22670TJ-ADJ/NOPB |
Part# | LM22670TJ-ADJ/NOPB |
Type： | Integrated Circuits |
Manufactor | Texas Instruments |
DC | new |
Actual image of the product
Product Attributes
TYPE | DESCRIPTION |
|---|---|
Category | Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - DC DC Switching Regulators |
Mfr | Texas Instruments |
Series | SIMPLE SWITCHER? |
Packaging | Tape & Reel (TR) Cut Tape (CT) |
Part Status | Active |
Function | Step-Down |
Output Configuration | Positive |
Topology | Buck |
Output Type | Adjustable |
Number of Outputs | 1 |
Voltage - Input (Min) | 4.5V |
Voltage - Input (Max) | 42V |
Voltage - Output (Min/Fixed) | 1.285V |
Voltage - Output (Max) | 37V |
Current - Output | 3A |
Frequency - Switching | 500kHz |
Synchronous Rectifier | No |
Operating Temperature | -40°C ~ 125°C (TJ) |
Mounting Type | Surface Mount |
Package / Case | TO-263-7 Thin |
Supplier Device Package | TO-263-7 Thin |
Base Product Number | LM22670 |

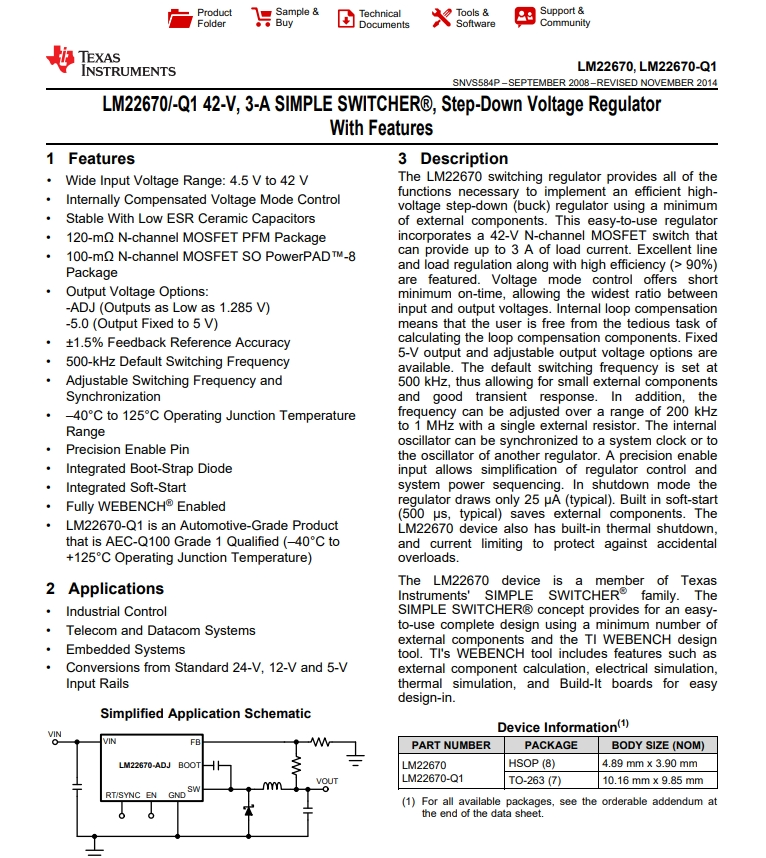

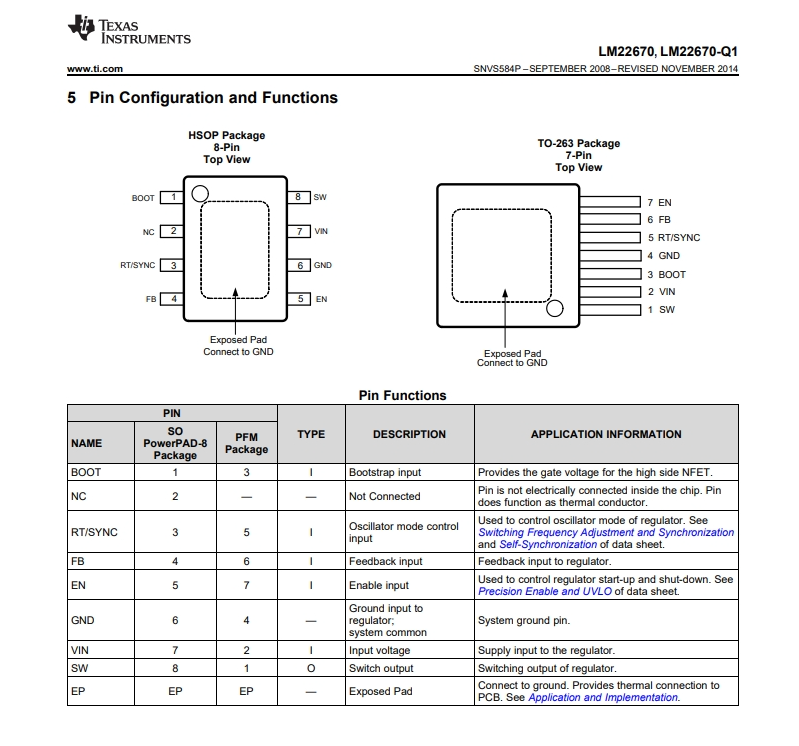

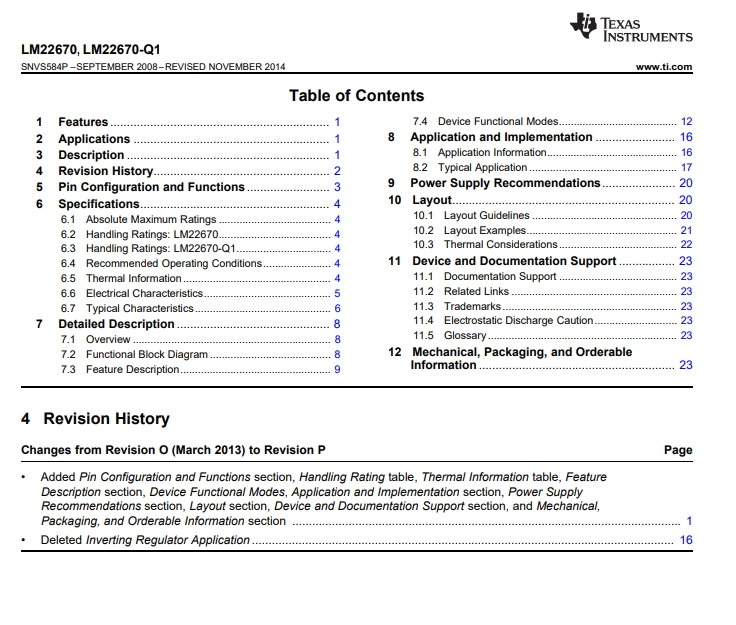

Product datasheet
For more information, please download
