Product Descriptions
The LM358B and LM2904B devices are the next-generation versions of the industry-standard operational amplifiers (op amps) LM358 and
LM2904, which include two high-voltage (36 V) op amps. These devices provide outstanding value for costsensitive applications, with features
including low offset (300 μV, typical), common-mode input range to ground, and high differential input voltage capability.
The LM358B and LM2904B op amps simplify circuit design with enhanced features such as unity-gain stability, lower offset voltage maximum of
3 mV (2 mV maximum for LM358BA and LM2904BA), and lower quiescent current of 300 μA per amplifier (typical). High ESD (2 kV, HBM) and
integrated EMI and RF filters enable the LM358B and LM2904B devices to be used in the most rugged, environmentally challenging
applications.
The LM358B and LM2904B amplifiers are available in micro-sized packaging, such as the SOT23-8, as well as industry standard packages
including SOIC, TSSOP, and VSSOP.
Product Features
? Wide supply range of 3 V to 36 V (B, BA versions)
? Quiescent current: 300 μA/ch (B, BA versions)
? Unity-gain bandwidth of 1.2 MHz (B, BA versions)
? Common-mode input voltage range includes ground, enabling direct sensing near ground
? 2-mV input offset voltage max. at 25°C (BA version)
? 3-mV input offset voltage max. at 25°C (A, B versions)
? Internal RF and EMI filter (B, BA versions)
? On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing
does not necessarily include testing of all parameters.
Product Applications
? Merchant network and server power supply units
? Multi-function printers
? Power supplies and mobile chargers
? Motor control: AC induction, brushed DC, brushless DC, high-voltage, low-voltage, permanent magnet, and stepper motor
? Desktop PC and motherboard
? Indoor and outdoor air conditioners
? Washers, dryers, and refrigerators
? AC inverters, string inverters, central inverters, and voltage frequency drives
? Uninterruptible power supplies
? Electronic point-of-sale systems
Product Specifications
| Attribute | Attribute value |
| Product Number | ANCM-LM358DR |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel? | |
| Part Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 0.3V/μs |
| Gain Bandwidth Product | 700 kHz |
| Current - Input Bias | 20 nA |
| Voltage - Input Offset | 3 mV |
| Current - Supply | 500μA (x2 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 30 V |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM358 |

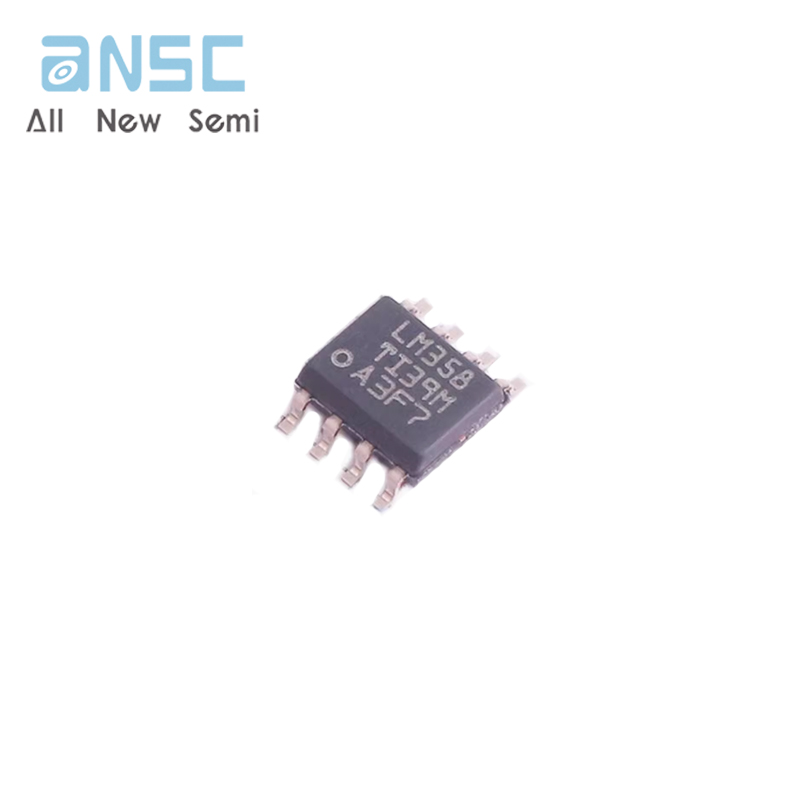

Product Images
