Product Description
| Type# | Description |
| ANSC PART# | ANSC - R5F21284JSP |
| Manufacturer | RENESAS |
| Part Package Code | SSOP |
| Package Description | 4.40 X 6.50 MM, 0.65 MM PITCH, PLASTIC, LSSOP-20 |
| Pin Count | 20 |
| Has ADC | YES |
| Additional Feature | ALSO OPERATES AT 2.2V SUPPLY AT 5 MHZ |
| Address Bus Width | |
| Bit Size | 16 |
| Clock Frequency-Max | 20 MHz |
| DAC Channels | NO |
| DMA Channels | NO |
| External Data Bus Width | |
| Length | 6.5 mm |
| Moisture Sensitivity Level | 3 |
| Number of I/O Lines | 16 |
| Number of Terminals | 20 |
| On Chip Program ROM Width | 8 |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min |
-40 °C |
| PWM Channels | YES |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LSSOP |
| Package Equivalence Code | SSOP20,.25 |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | Not Qualified |
| RAM (bytes) | 1024 |
| ROM (words) | 16384 |
| ROM Programmability | FLASH |
| Seated Height-Max | 1.45 mm |
| Speed | 20 MHz |
| Supply Current-Max | 17 mA |
| Supply Voltage-Max | 5.5 V |
| Supply Voltage-Min | 3.3 V |
| Supply Voltage-Nom | 3.3 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.65 mm |
| Terminal Position | DUAL |
| Width | 4.4 mm |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |

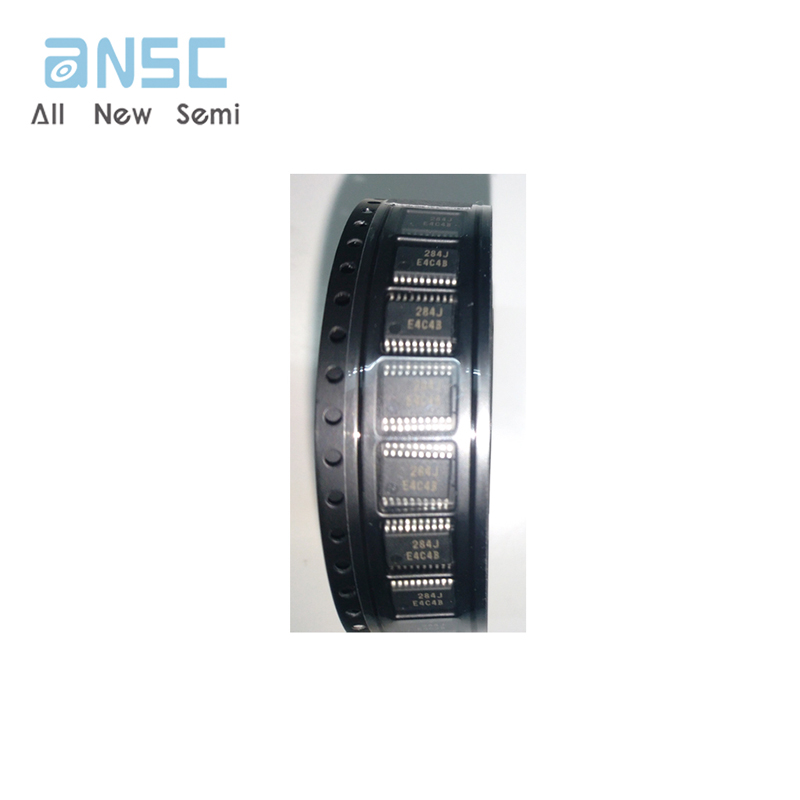

Product Photos
