Product Description
| Type# | Description |
| ANSC PART# | ANSC - UC1846J |
| Manufacturer | TI |
| Part Package | DIP |
| Package Description | DIP, DIP16,.3 |
| Pin Count | 16 |
| Samacsys Manufacturer | Texas Instruments |
| Analog IC - Other Type | SWITCHING CONTROLLER |
| Control Mode | CURRENT-MODE |
| Control Technique | PULSE WIDTH MODULATION |
| Input Voltage-Max | 40 V |
| Input Voltage-Min | 7.25 V |
| Input Voltage-Nom | 15 V |
| Length | 19.56 mm |
| Number of Functions | 1 |
| Number of Terminals | 16 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -55 °C |
| Output Current-Max | 0.5 A |
| Output Voltage-Max | 5.15 V |
| Output Voltage-Min | 5.05 V |
| Output Voltage-Nom | 5.1 V |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP16,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.57 mm |
| Supply Current-Max (Isup) | 21 mA |
| Supply Voltage-Max (Vsup) | 40 V |
| Supply Voltage-Min (Vsup) | 12 V |
| Surface Mount | NO |
| Switcher Configuration | BUCK-BOOST |
| Switching Frequency-Max | 500 kHz |
| Technology | BICMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Width | 6.92 mm |

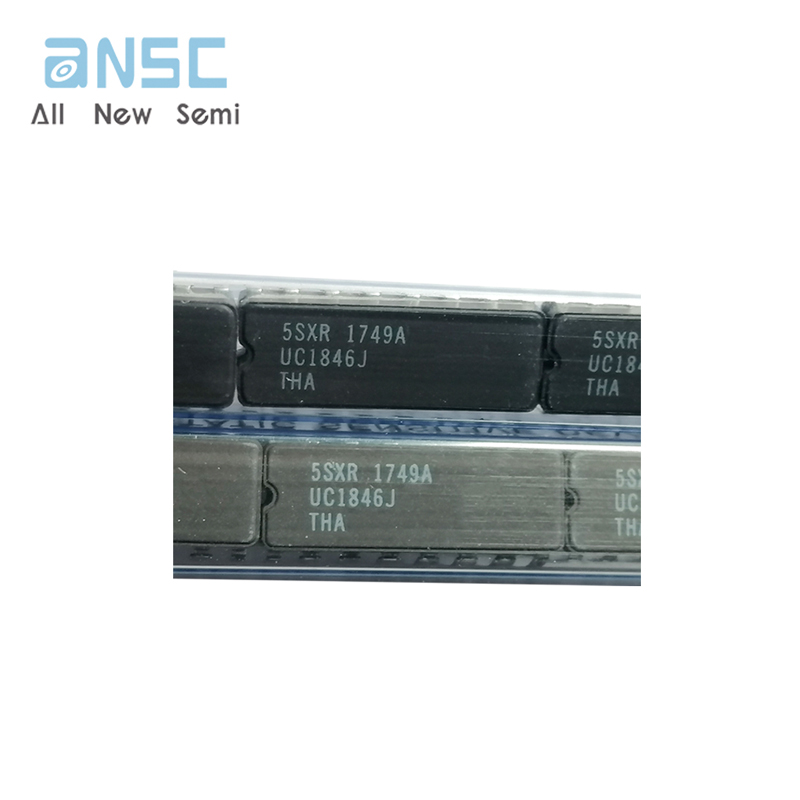

Product Photos

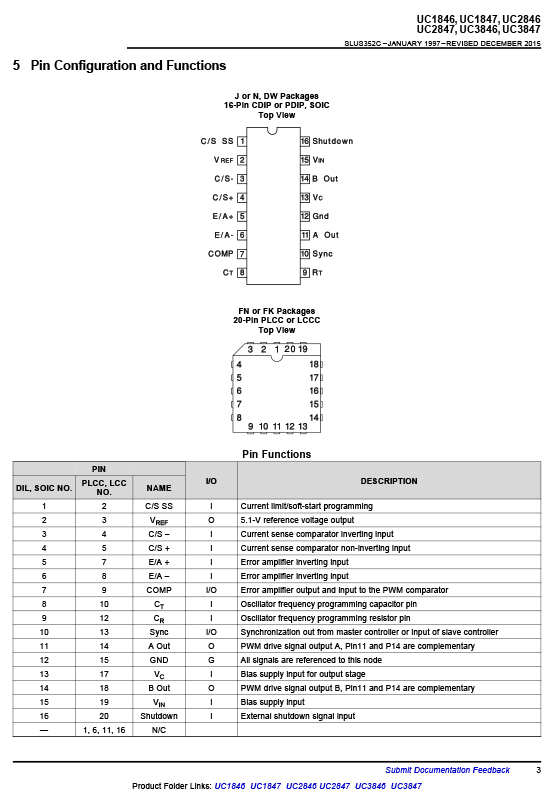

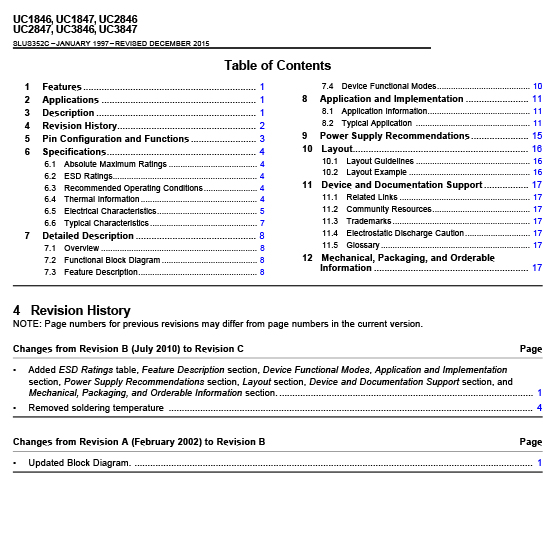

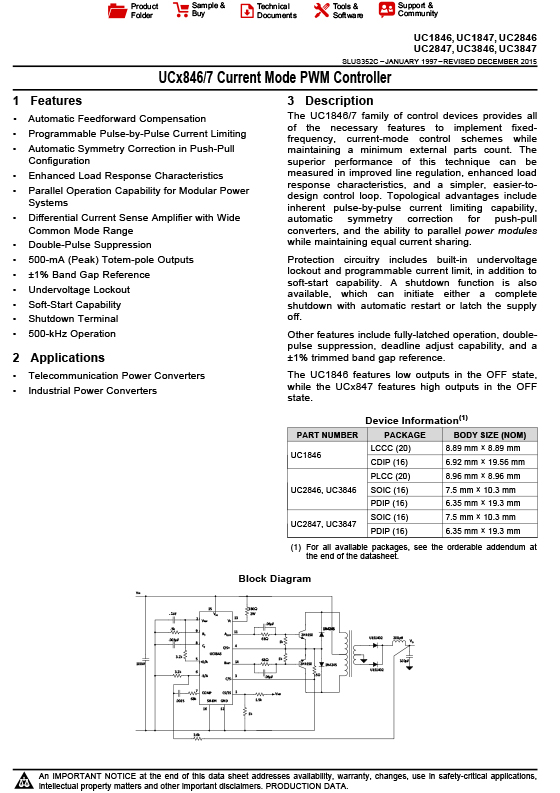

Product datasheet
For more information, please download
