Product Descriptions

The SDP2000-L differential pressure sensor for air covers a measurement range of 3500 Pa (14 inch H2O).

Mounted in a PPS housing the SDP2000-L differential pressure sensor features a unique dynamic range, zero offset and unsurpassed long term

stability. This makes it an ideal fit for demanding yet cost sensitive OEM applications in HVAC and medical equipment.

The device is supplied with 5 V and provides a 0.25…4 V output. Although the output of the SDP2000-L differential pressure sensor is analog,

the internal linearization and temperature compensation is performed digitally. This results in superior accuracy, outstanding resolution, and

lowest temperature dependence.

The outstanding performance of the sensor is based on Sensirion’s patented CMOSens? sensor technology, which combines the sensor

element, signal processing and digital calibration on a small CMOS chip. The differential pressure is measured by a thermal sensor element

using flow-through technology. The well-proven CMOS technology is perfectly suited for high-quality mass production and is the ideal choice

for demanding and cost-sensitive OEM applications.

Differential Pressure Sensor with Analog Output

? Calibrated and temperature compensated

? Excellent repeatability, no drift

? High reliability and long-term stability

? Best signal to noise ratio

? Industry-proven technology with a track record of more than 15 years

? Designed for mass production

? High process capability

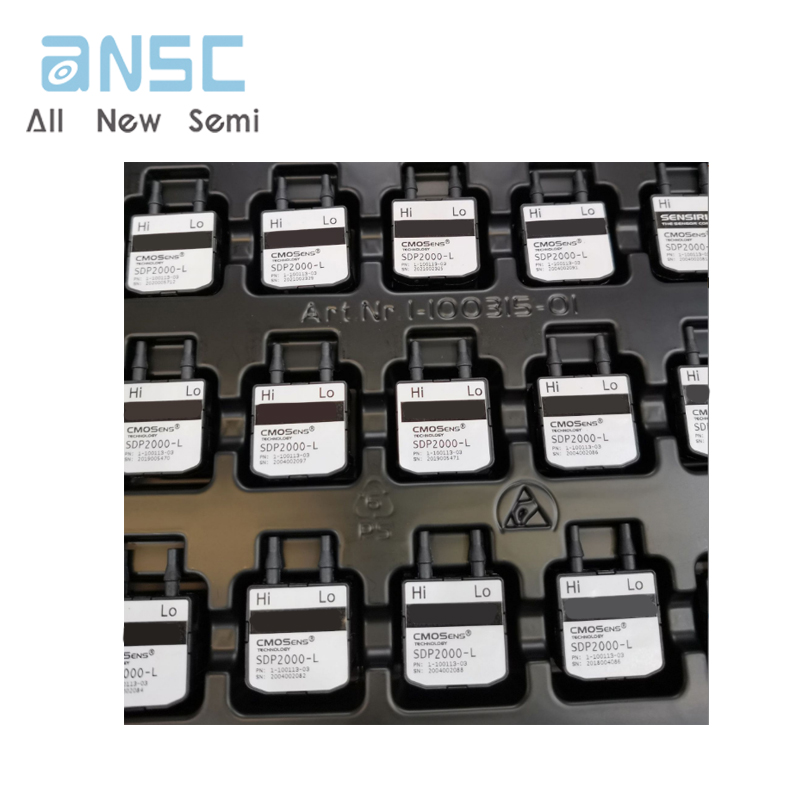

SDP2000-L
