Product Overview

The da218B sensor is a low power high performance capacitive three-axis linear accelerometer developed by micro-machined technology. The

device is available in a 2x2x0.9 mm land grid array (LGA) and it is guaranteed to operate over an extended temperature range from -40°C to

+85°C. The sensor element is fabricated by single crystal silicon with DRIE process and is protected by hermetically sealed silicon cap from the

environment. The device features user selectable full scale of ±2g/ ±4g/ ±8g measurement range with data output rate from 1Hz to 1 kHz with

signal condition, active detection imbedded. The da218B has a power-down mode that makes it good for handset power management. One

independent and flexible interrupts provided greatly simplify the algorithm for various motion status detections. Standard I2C interface is used

to communicate with the chip

Product Features

? Supply voltage, 1.62V to 3.6V

? For 2x2x0.9 mm LGA-12 package

? User selectable range, ±2g, ±4g, ±8g

? User selectable data output rate

? Digital I2C output interface

? 12 bit resolution

? Low power consumption

? 1 Programmable interrupt generators with independent function for motion detection

? Factory programmable offset and sensitivity

? RoHS compliant

Product Applications

? User interface for mobile phone and PMP

? Gesture recognition

? Active monitoring

? Power management

? Vibration monitoring

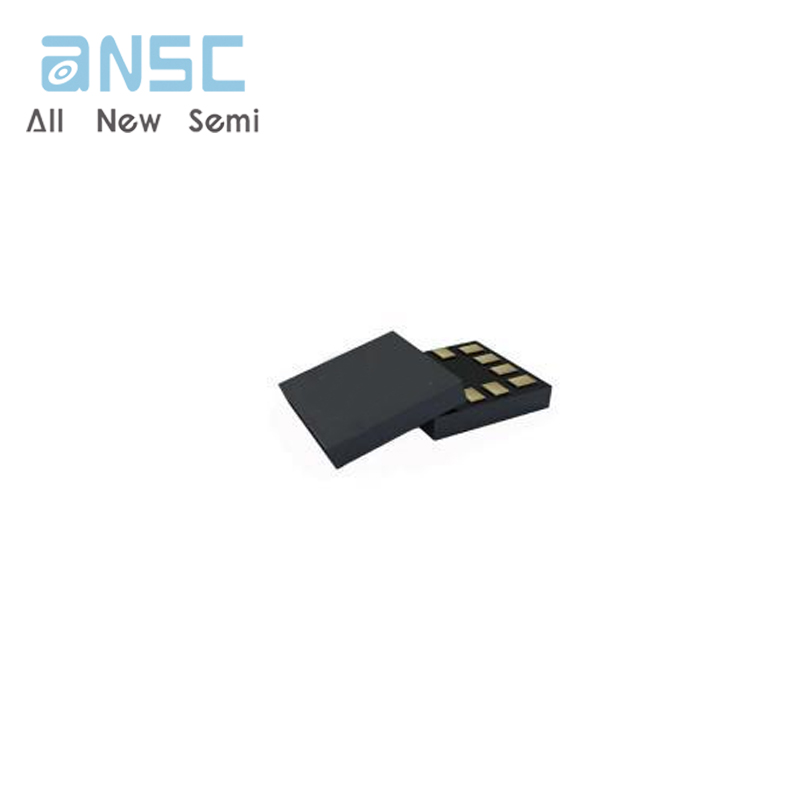

Product Images
