DESCRIPTION
The UPS840e3 offers a small and powerful surface mount package that is RoHS compliant for a 40 Volt 8 Amp rated Schottky.
These ratings are found only in much larger packages.
They are ideal for surface mount applications that operate at high frequencies with their “hot carrier” features
that provide extremely fast switching. The very low thermal resistance of the patented Powermite 3? package
design with a full metallic bottom and unique locking tab act as an efficient heat path to a heat sink mounting
permitting cooler operating junction temperatures for minimal reverse leakage currents and lower power loss.
It is also ideal for automatic insertion equipment.
FEATURES
? Low profile package (<1.1 mm)

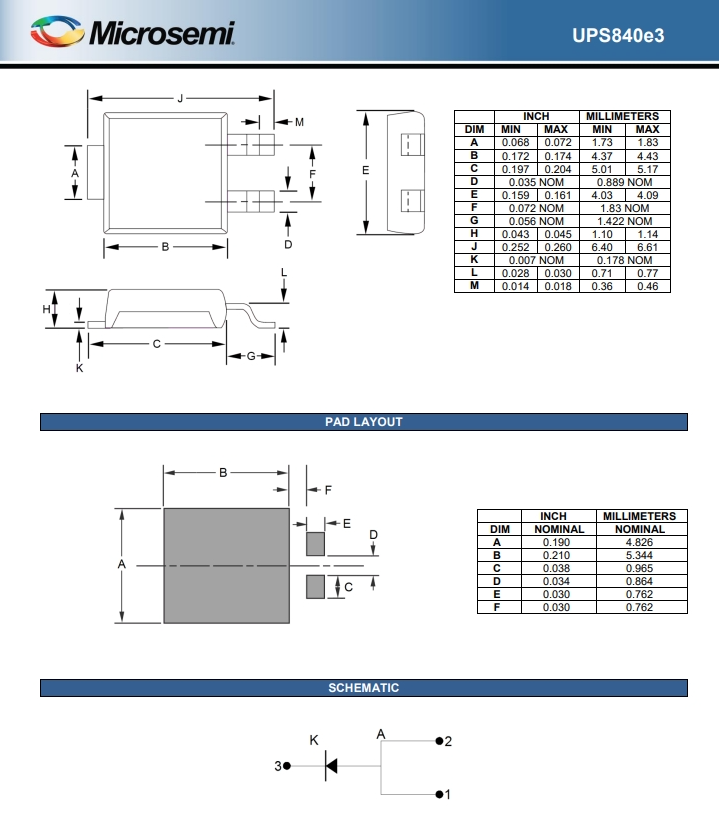

? Small footprint area of 32 mm2 (4.826 x 6.604 mm) or 0.05 in2 (0.190 x 0.260 inches) as also shown in mounting pad details on last page
? Plastic package has Underwriters Laboratory
Flammability classification 94V-0
? Unique locking tab on bottom acts as integral efficient heat path to heat sink (mounting substrate)
? Metal to silicon rectifier, majority carrier conduction
? RoHS compliant with e3 suffix part number
Product Description
ANSC PART# | ANSC- UPS840E3 |
Part# | UPS840E3 |
Type： | Electronic components |
Manufactor | Microchip |
DC | new |
Actual image of the product

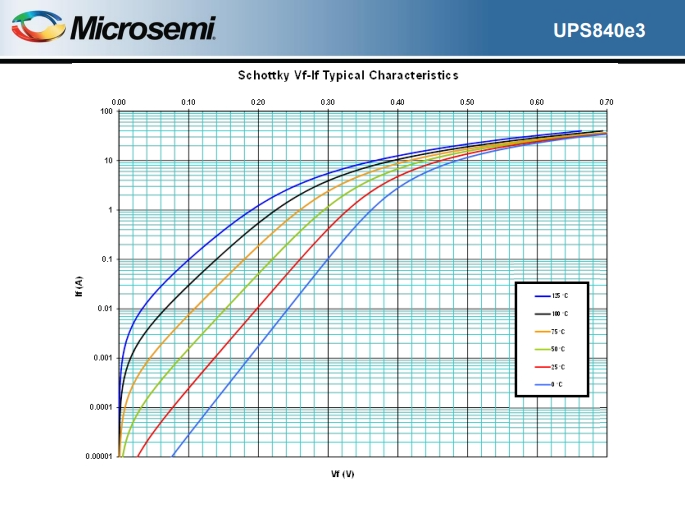

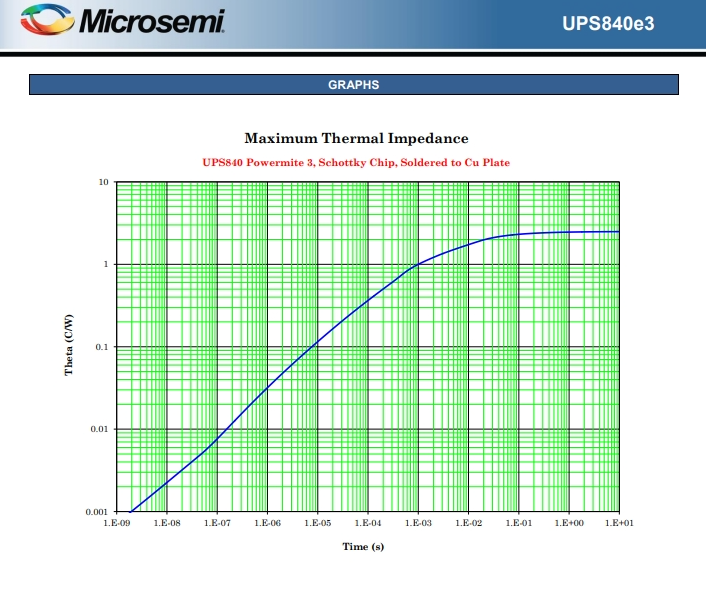

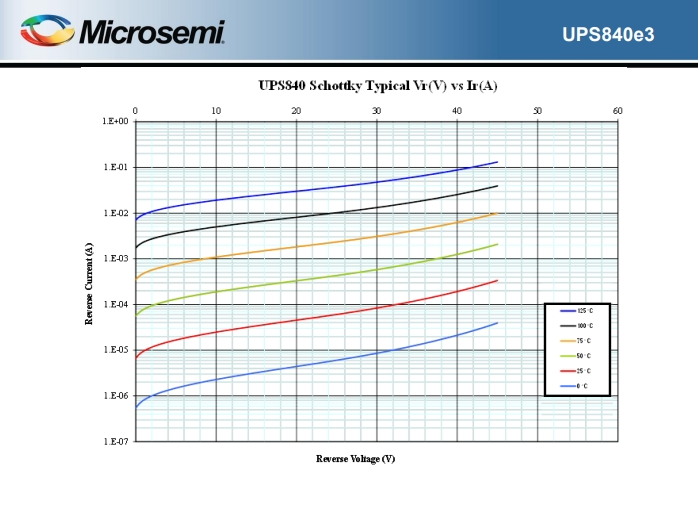

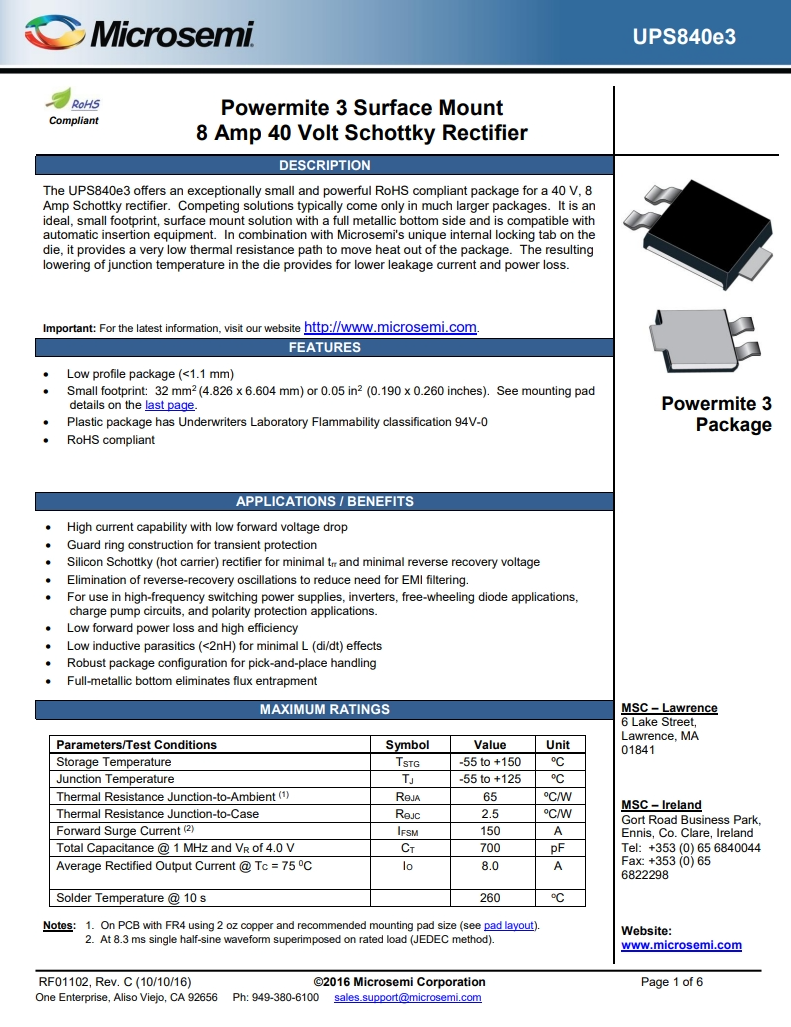

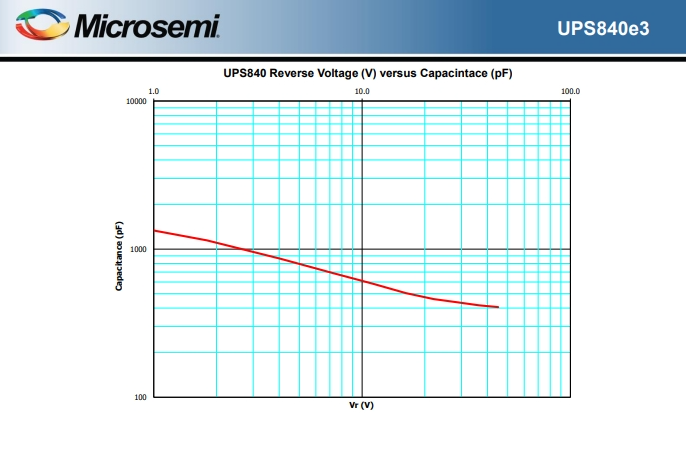

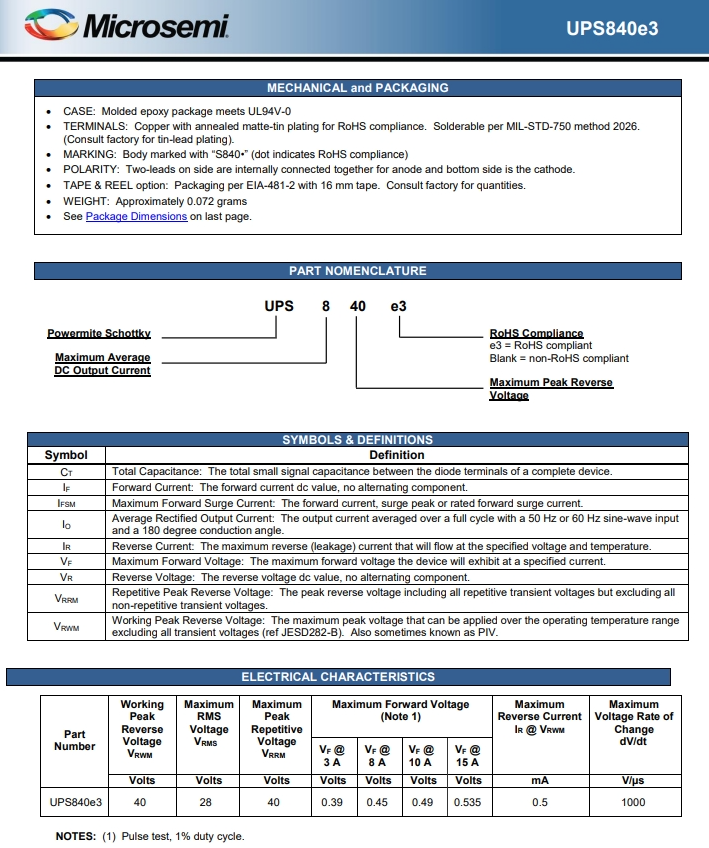

Product datasheet
For more information, please download
