Product Details
|
ICM7555ISA Overview There is a 8-SOIC (0.154, 3.90mm Width) enclosure with the programmable timer. Frequency is set to 500kHz on the programmable timer.It is used to pack in Tube case. It is recommended to mount in type Surface Mount.2V~16.5V is the voltage that can be supplied by the programmable timer.The type of chips can be divided into 555 Type, Timer/Oscillator (Single). The operating temperature of this timer clock is -20°C~85°C. To keep the clock timer's supply current at 30μA. The supply voltage of the programmable timer can rate 5V. The number of the chip's terminations sums up to 8. ICM7555ISA Features Operate frequency at 500kHz Package / Case: Tube Mounting Type:Surface Mount Current - Supply：30μA ICM7555ISA Applications ICM7555ISA Programmable Timers & Oscillators applications. Intruder Detection Tamper Detection Home Automation Sensors Thermostats Consumer Electronics Remote Sensors White Goods Electric Vehicles Always On Systems Clutch Actuator circuit |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC- ICM7555ISA |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Programmable Timers and Oscillators | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Obsolete |
| Type | 555 Type, Timer/Oscillator (Single) |
| Count | - |
| Frequency | 500kHz |
| Voltage - Supply | 2V ~ 16.5V |
| Current - Supply | 30 μA |
| Operating Temperature |
-20°C ~ 85°C |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Base Product Number | ICM7555 |

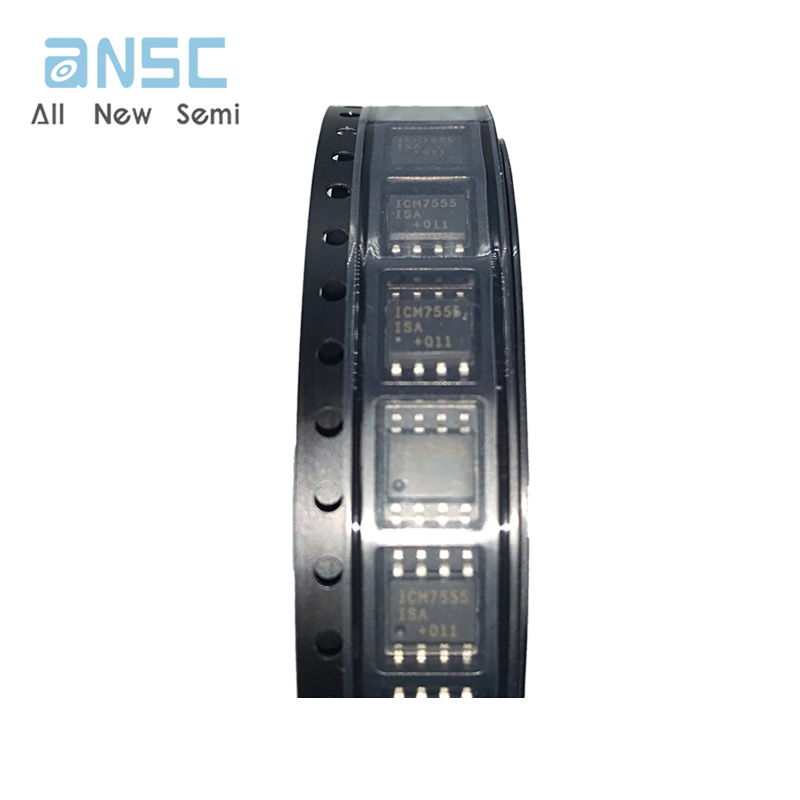

Product Photos

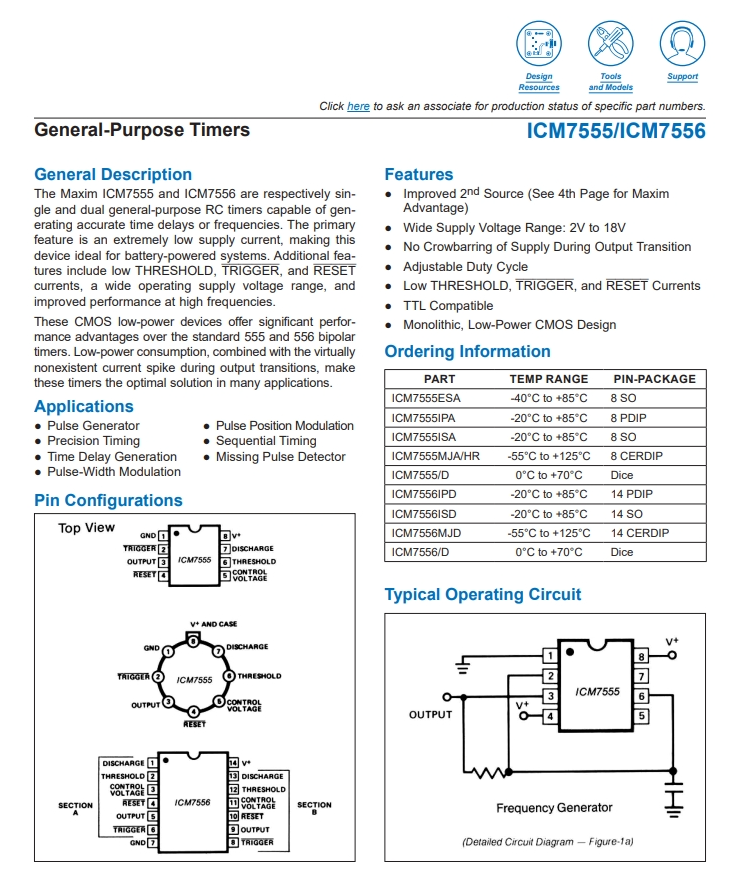

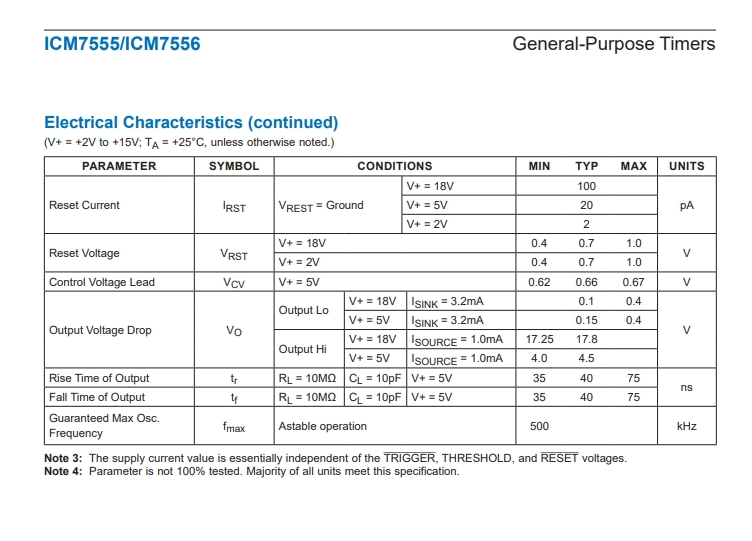

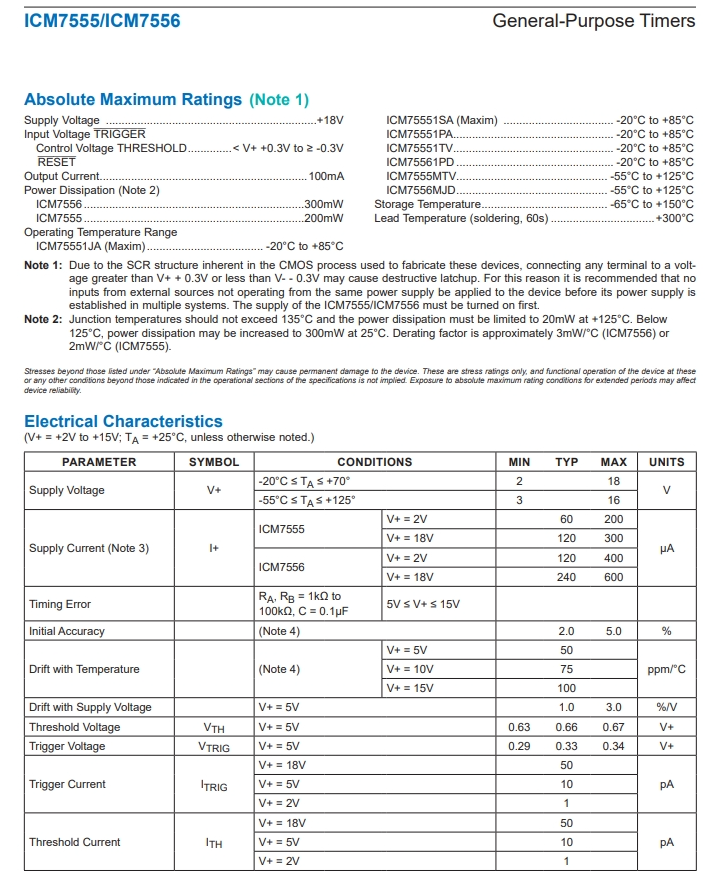

Product datasheet
For more information, please download
