Product Descriptions

The RSYN Series are RVDT (Rotary Variable Differential Transformer) angular position sensors that incorporate proprietary rotor and coil

designs. Their non-contact electrical construction eliminates items such as slip rings, rotor windings, contact brushes or wipers that degrade

over time and impair reliability. At the same time the coil design achieves extraordinarily high output and low noise.

RSYNs offer enhanced tolerance to shock and vibration, as well as humidity & salt mist resistance, which make these transducers the obvious

choice where severe conditions are expected. Excellent performance over a wide temperature range provides a significant advantage over

comparable sensors.

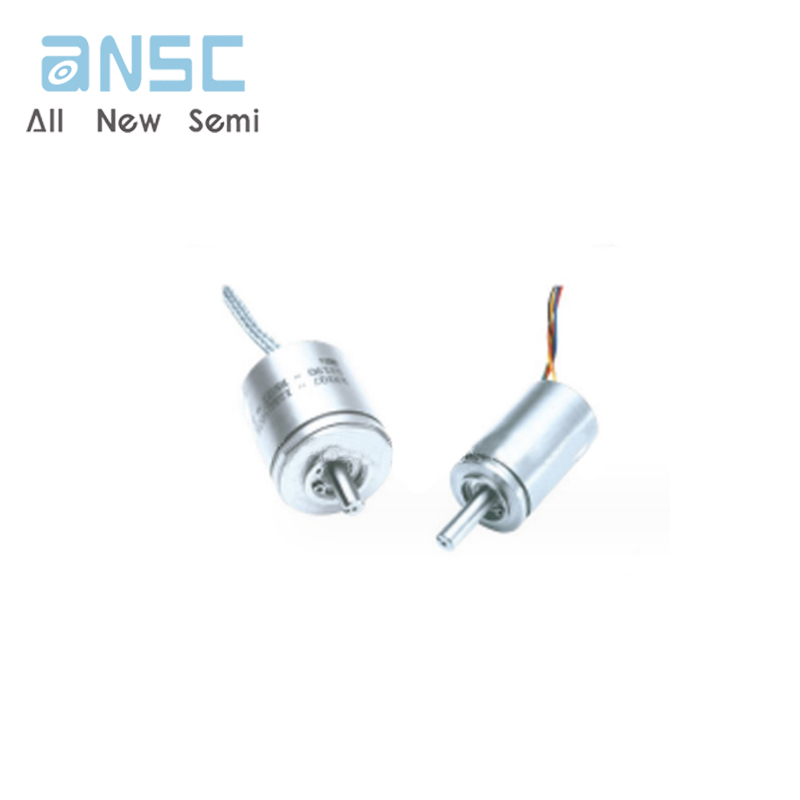

RSYN angular position sensors are also compact. They are available in two sizes: The RSYN 8-30 with a 0.75 inch [19mm] diameter, and the

RSYN 11-30 with a 1.06 inch [27mm] diameter. The coil design comprises a primary and two secondary windings all placed in the stator. There

are no windings in the rotor. The secondary windings act as pickup coils detecting the flux change caused by rotation of the rotor.

The stator core is a lamination stack of highly permeable magnetic alloy material and the rotor is made of the same material. A very small air

gap separates these components.

This combination provides for an “all-iron” flux path that provides for very high efficiency, resulting in a very high signal to noise ratio and a

very low temperature coefficient of sensitivity. The linear AC output represents the rotor shaft angle position, providing the user with

exceptional resolution even over very small angular ranges. Both models offer the flexibility of six lead wires to provide for a variety of

connection schemes to signal conditioners. The RSYNs are factory calibrated over ±30 degrees, but may be over-ranged to ±35 degrees for a

total sensing range of 70 degrees if necessary (with somewhat increased non-linearity).

Product Features

? Non-contact sensor

? Extremely long rotational life

? High reliability

? High accuracy over temperature

? Conductive housings

? ABEC 3 precision bearings

Product Applications

? Valve position

? Head box spinneret position feedback

? Rotary actuator feedback

? Hydrostatic transmissions, off-road vehicles

? Aircraft cockpit controls

? Rudder position on boats

Product Specifications

? Non-contact electrical design

? High output sensitivity

? ±35 degree sensing range

? Very low temp. coefficient of sensitivity

? Wide -55 to +105oC operating temp. range

? Superior shock &vibration tolerance

? Humidity and salt mist resistant

? Sizes 8 and 11 servo mounts
